Front Side Door Window Replacement

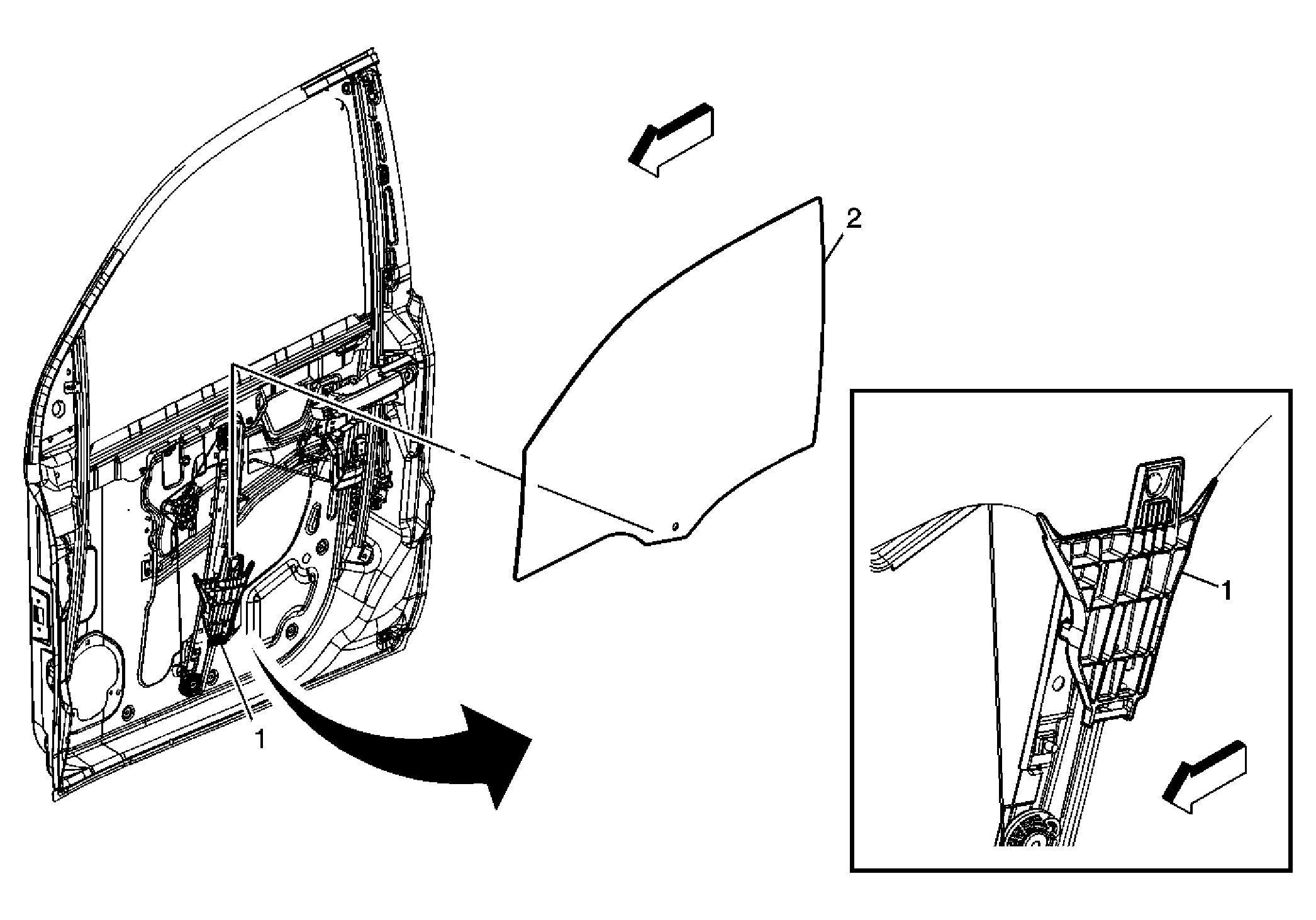

Fig 1: View Of Front Side Door Window

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement . Remove front door water deflector. Refer to Front Side Door Water Deflector Replacement . Remove inner belt seal. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement . Lower window to access release tab.
1	Front Side Door Window Module Assembly Tip: Depress release tab with a flat-bladed tool.
2	Front Side Door Window Tip: Pull window out of the regulator guide plate. Slide window down and out of primary run channels. Remove window by tilting outboard and pulling window out of door. When re-installing, slide window into door through outside. Install window into primary run channels and position into regulator guide plate. Operate window to inspect operation.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove front door water deflector. Refer to Front Side Door Water Deflector Replacement .
Remove inner belt seal. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement .
Lower window to access release tab.

Front Side Door Window Module Assembly
Tip: Depress release tab with a flat-bladed tool.

Front Side Door Window
Tip:

Pull window out of the regulator guide plate.
Slide window down and out of primary run channels.
Remove window by tilting outboard and pulling window out of door.
When re-installing, slide window into door through outside.
Install window into primary run channels and position into regulator guide plate.
Operate window to inspect operation.
