Front Side Door Window Regulator Replacement

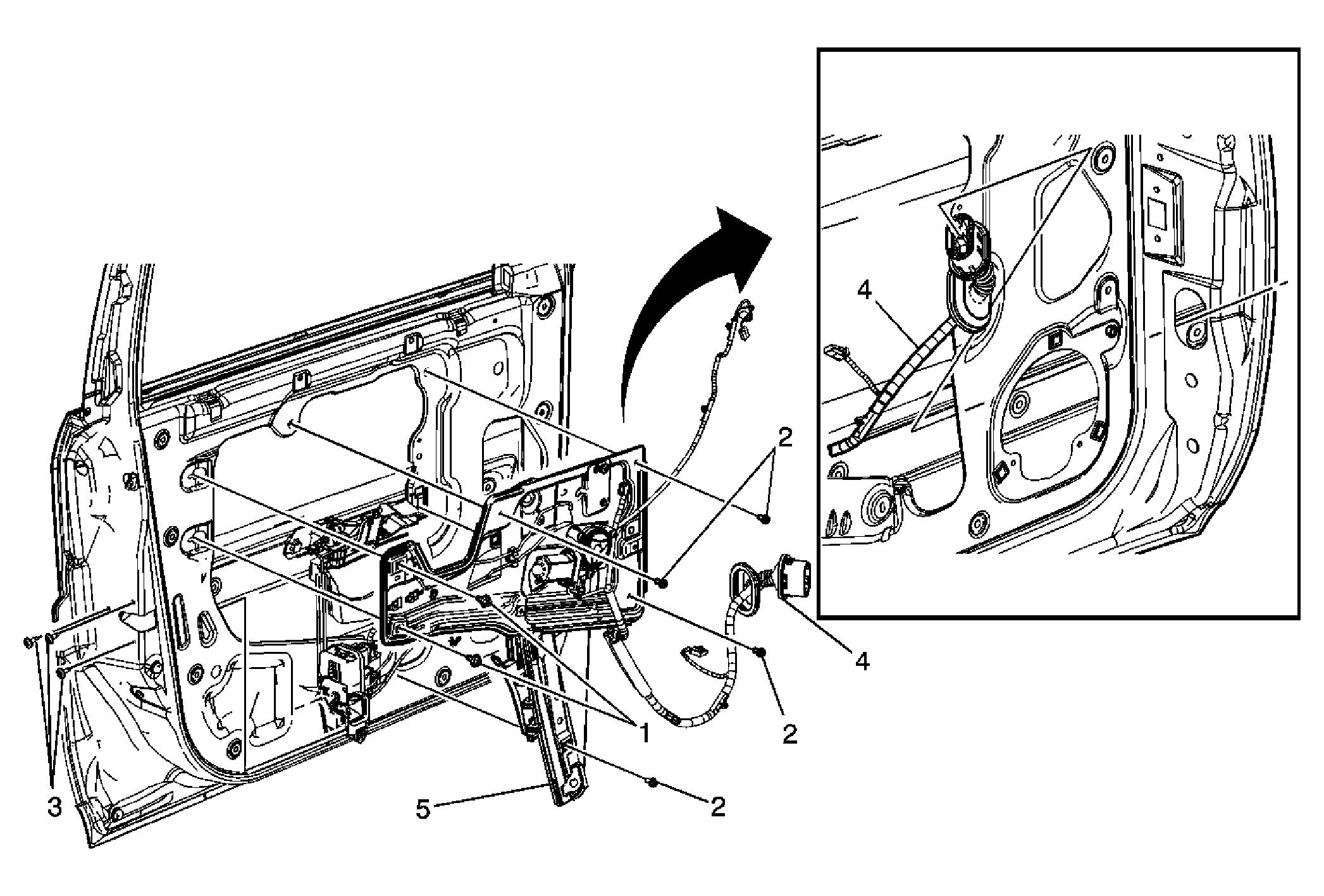

Fig 1: View Of Front Side Door Window Regulator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove front door outside handle. Refer to Front Side Door Outside Handle Replacement . Remove front door window run channel assembly. Refer to Front Side Door Window Channel Replacement . Remove front door lower speaker. Refer to Rear Side Door Trim Panel Replacement . Disconnect outside rearview mirror electrical connector.
1	Front Side Door Locking System Module Rear Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Front Side Door Locking System Module Bolt (Qty: 2) Tighten: 8 N.m (71 lb in)
3	Front Side Door Latch Bolt (Qty: 3) Tighten: 10 N.m (89 lb in)
4	Front Side Door Wiring Harness Assembly
5	Front Side Door Locking System Module Assembly
