Door Window Regulator Handle Replacement

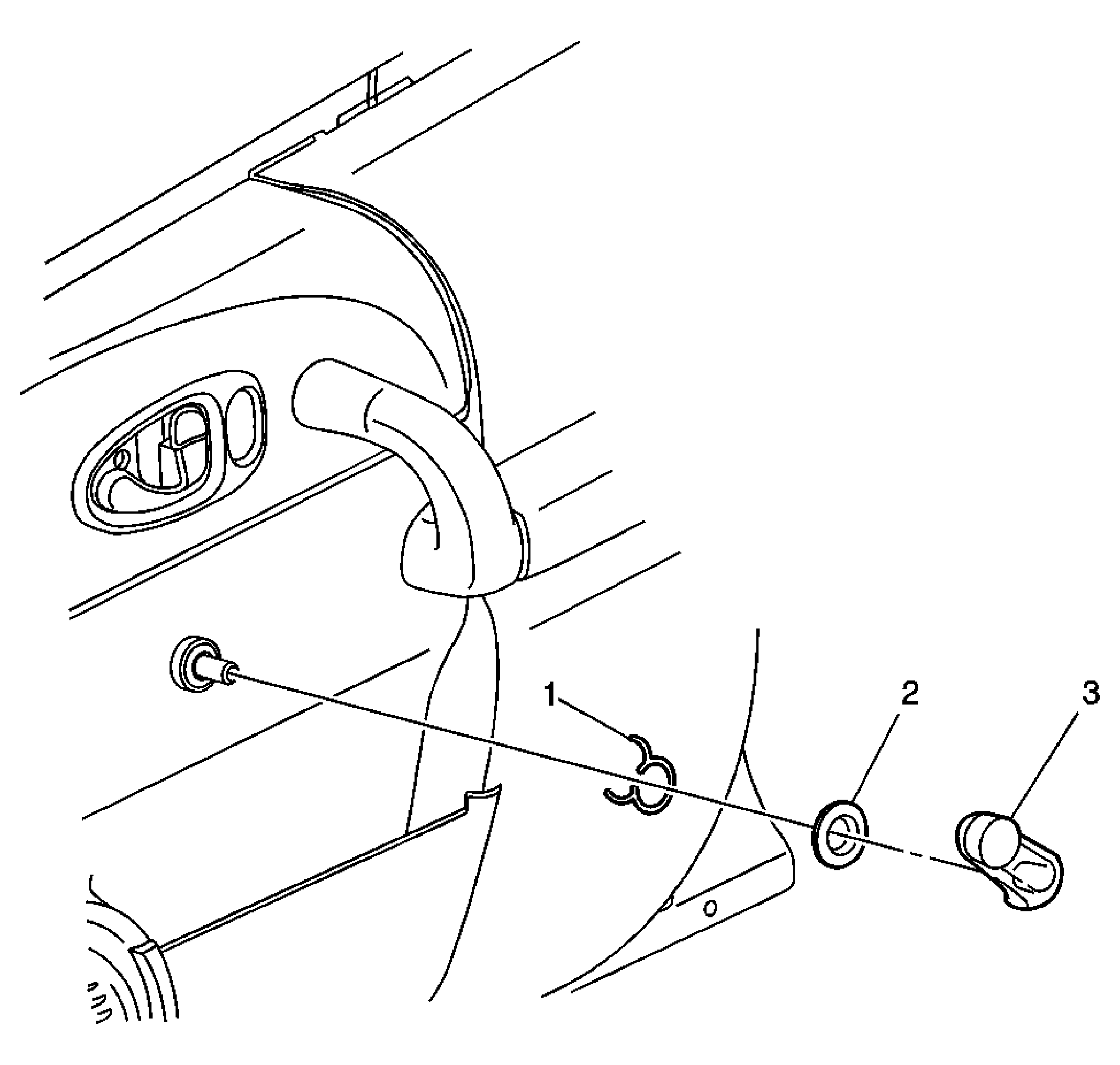

Fig 1: View Of Door Window Regulator Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Side Door Window Regulator Handle Retainer Clip
2	Side Door Window Regulator Bearing Plate
3	Side Door Window Regulator Handle Assembly Tip:  Use the J 9886-01  Door Handle Clip Remover to remove the crank handle.
