Instrument Panel/Center Console Component Views

Fig 1: View Of HVAC Module Assembly Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Recirculation Actuator
2	Blower Motor
3	Blower Motor Control Module
4	Air Temperature Actuator
5	Mode Actuator
6	Evaporator Temperature Sensor

Fig 2: View Behind Left Side Of I/P

Courtesy of GENERAL MOTORS CORP.

Fig 3: View Of Center Of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	Instrument Panel Harness
3	Center Instrument Panel Support

Fig 4: Pedal Assembly Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pedal Position (BPP) Sensor
2	Accelerator Pedal Position (APP) Sensor

Fig 5: Below The Shifter View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Trim
2	Console Arm Rest
3	Cigar Lighter (DT4)/Accessory Power Outlet - Center Console 2 (without DT4)

Fig 6: View Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Instrument Panel Cluster (IPC)
3	Driver Information Center (DIC) Switch
4	Hazard Warning Switch
5	Inflatable Restraint I/P Module Indicator
6	Rear Window Wiper/Washer/Fog Lamp Switch
7	Radio
8	HVAC Control Module
9	Heated Seat Switch - Driver (KA1), Heated Seat Switch - Passenger (KA1)
10	Window Switch - Driver
11	Traction Control Switch (TCS)
12	Headlamp Dimmer Switch
13	Outside Rearview Mirror Switch

Fig 7: Locating Front Air Bags

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module
2	Inflatable Restraint I/P Module

Fig 8: Identifying Components Behind I/P Cluster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Instrument Panel Trim
3	Vehicle Communication Interface Module (VCIM) (UE1)

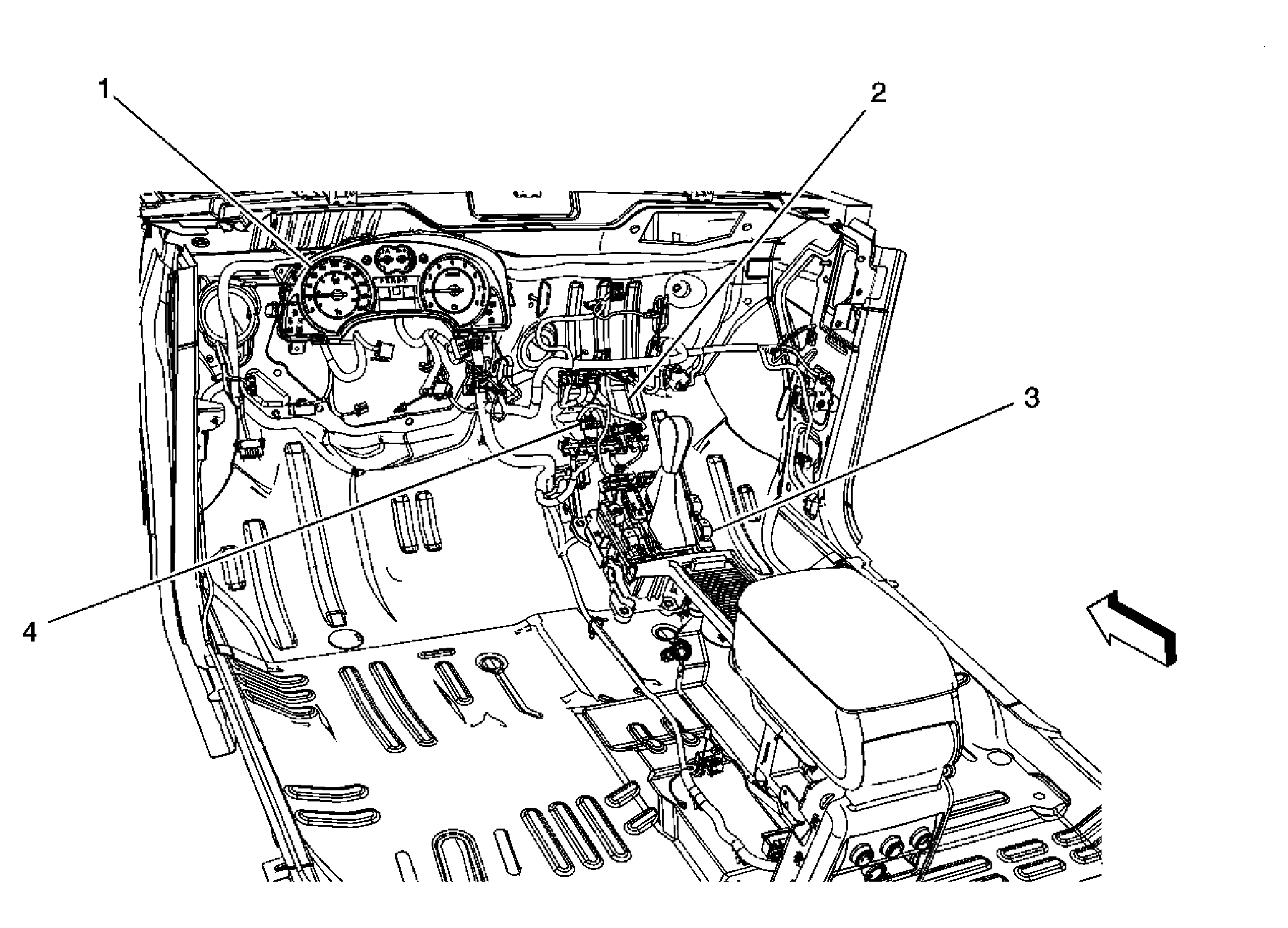

Fig 9: I/P Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Fuse Block - I/P
3	Automatic Transmission Shifter
4	Body Control Module (BCM)

Fig 10: View Of Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Windshield Wiper/Washer Switch
4	Theft Deterent Module (TDM)
5	Electric Power Steering (EPS) Motor (LNJ)
6	Electric Power Steering (EPS) Module (LNJ)
7	Ignition Lock Cylinder Control Solenoid
8	Ignition Switch

Fig 11: View Of Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Switch
2	Steering Wheel Control Switch - Right (UK3)
3	Steering Wheel Control Switch - Left (K34)

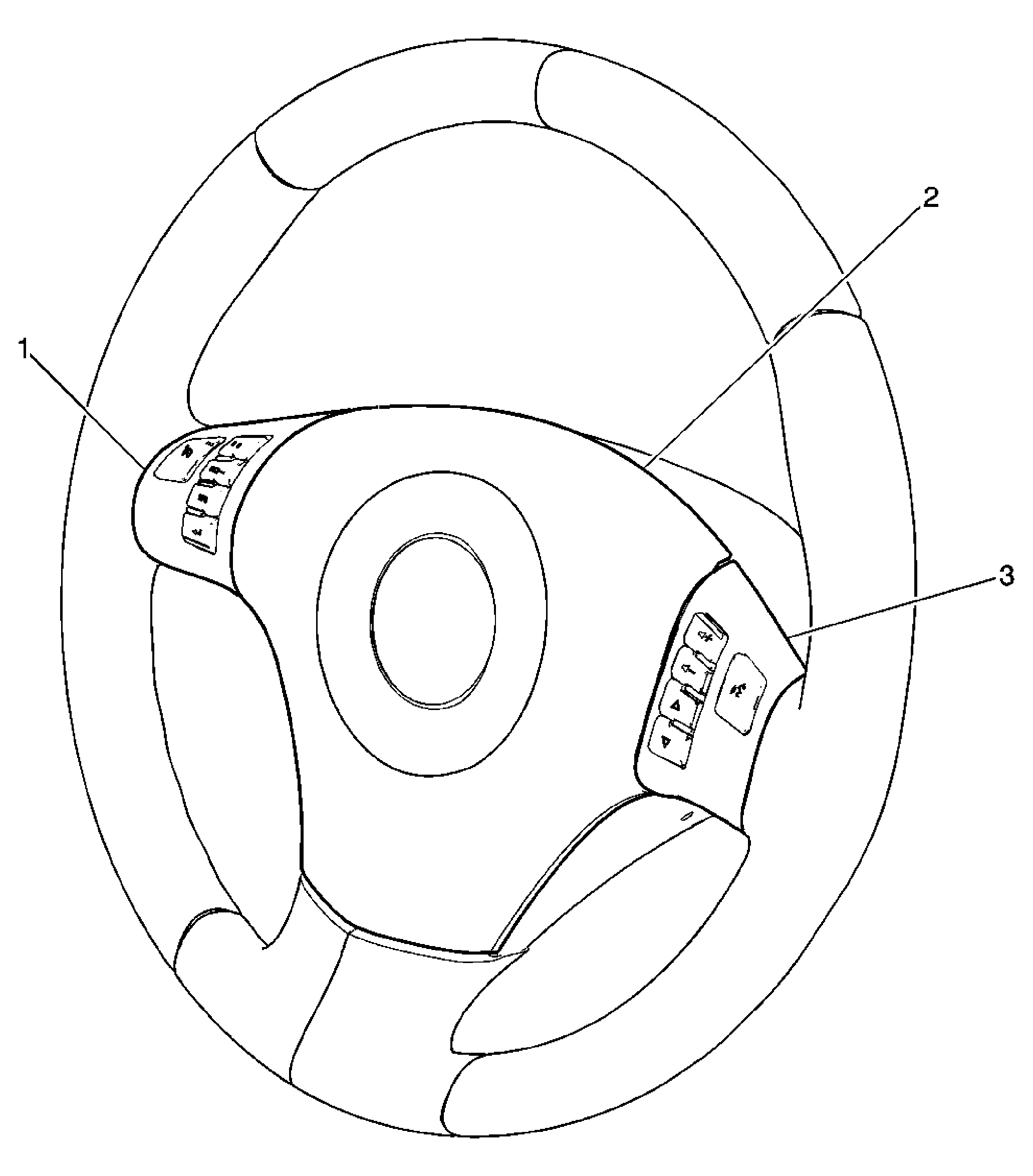

Fig 12: View Of Steering Wheel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Control Switch - Left (K34)
2	Inflatable Restraint Steering Wheel Module
3	Steering Wheel Control Switch - Right (UK3)

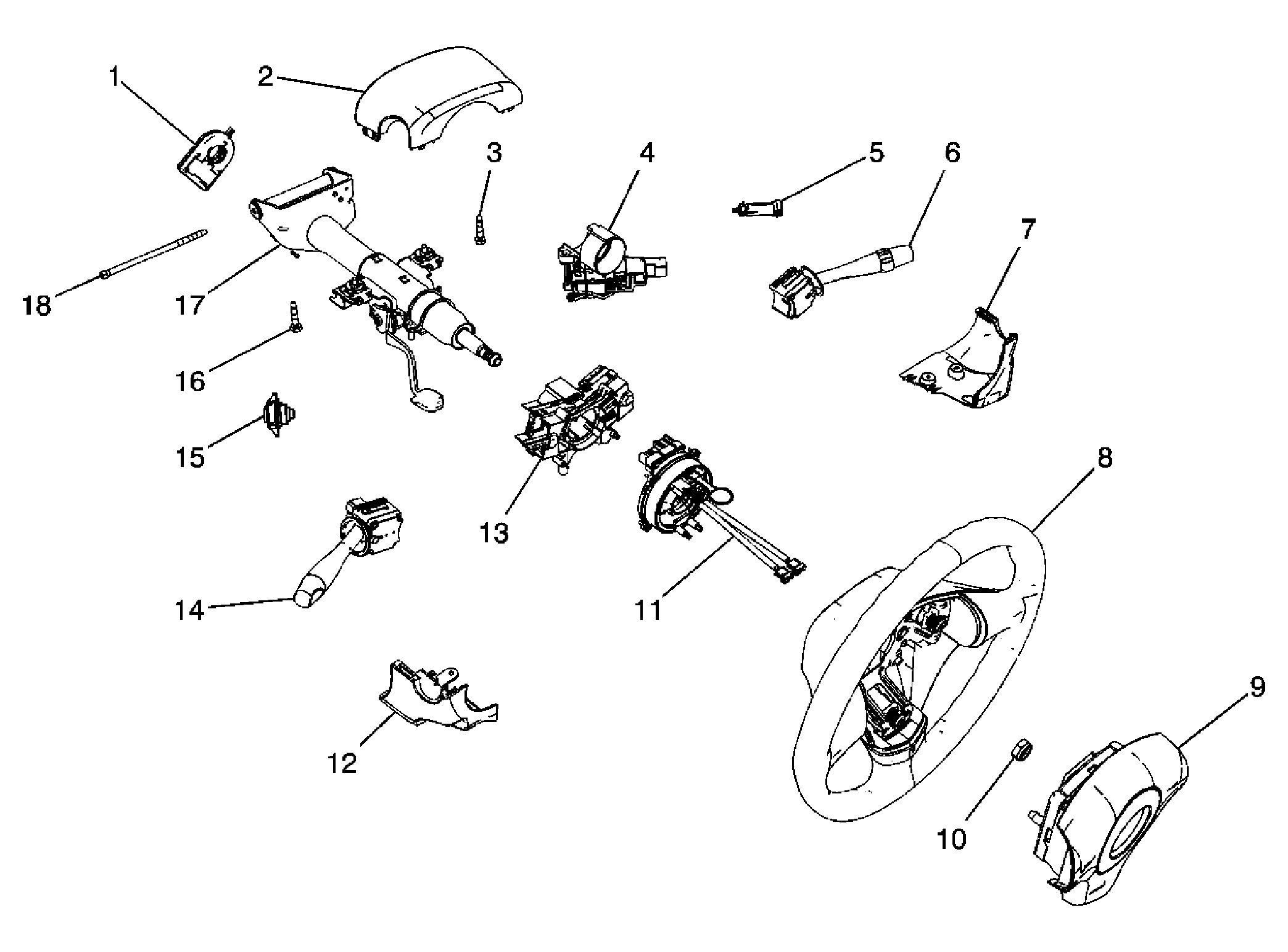

Fig 13: Steering Column Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Angle Sensor (LY7)
2	Steering Column Upper Trim Cover
3	Steering Column Upper Bolt
4	Ignition Switch Housing
5	Ignition Lock Cylinder
6	Windshield Wiper/Washer Switch
7	Steering Column Lower RH Trim Cover
8	Steering Wheel
9	Inflatable Restraint Steering Wheel Module
10	Steering Wheel Nut
11	Inflatable Restraint Steering Wheel Module Coil
12	Steering Column Lower LH Trim Cover
13	Turn Signal/Multifunction Switch Housing
14	Turn Signal/Multifunction Switch
15	Ignition Switch
16	Steering Column Upper Bolt
17	Steering Column
18	Steering Column Lower Bolt

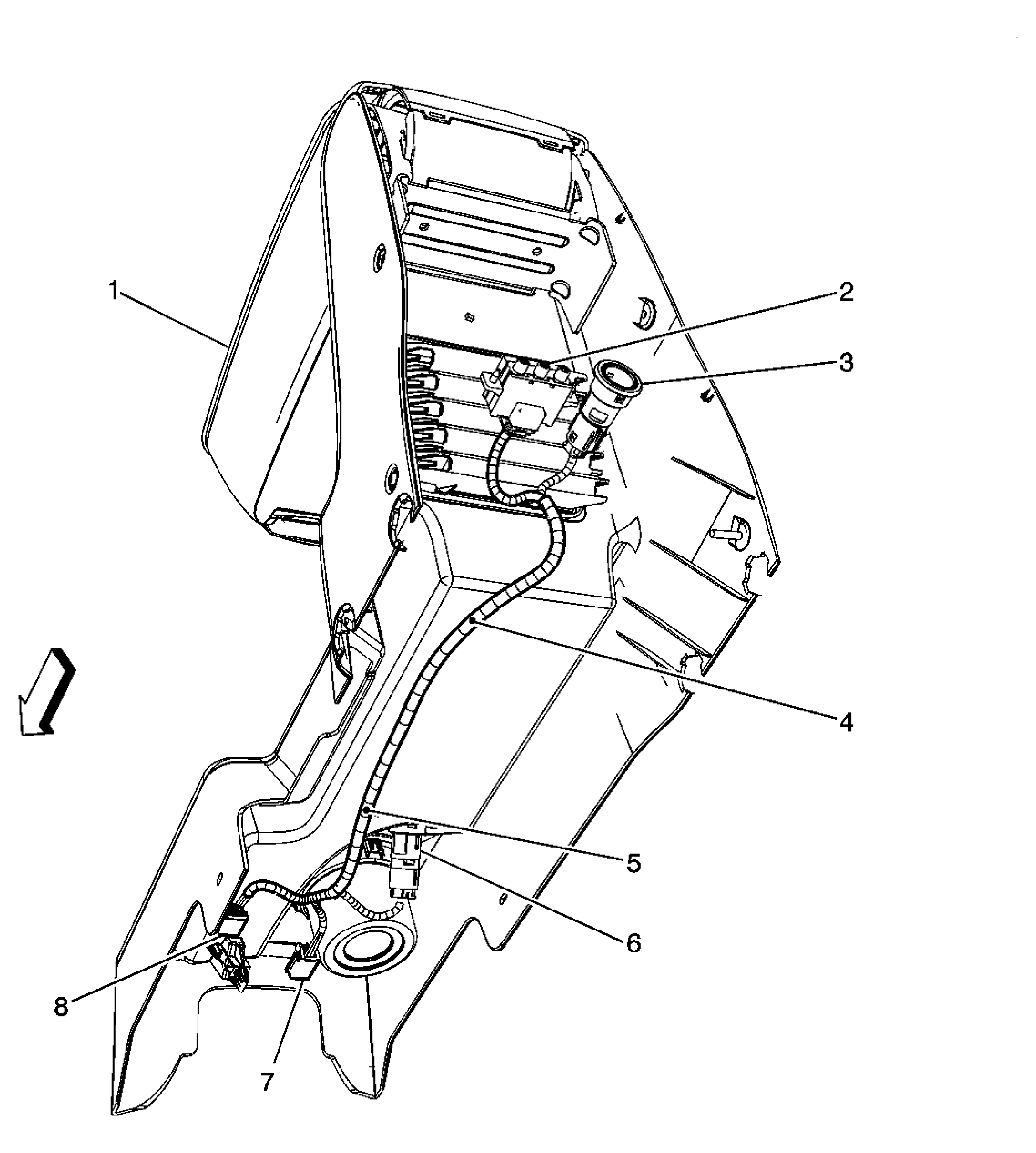

Fig 14: View Of Console Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Arm Rest
2	Audio/Video Adaptor (UUC)
3	Accessory Power Outlet - Center Console 1
4	J301
5	J300
6	Cigar Lighter (DT4)/Accessory Power Outlet - Center Console 2 (without DT4)
7	X305
8	X207 (UUC)
