Power Moding Schematics

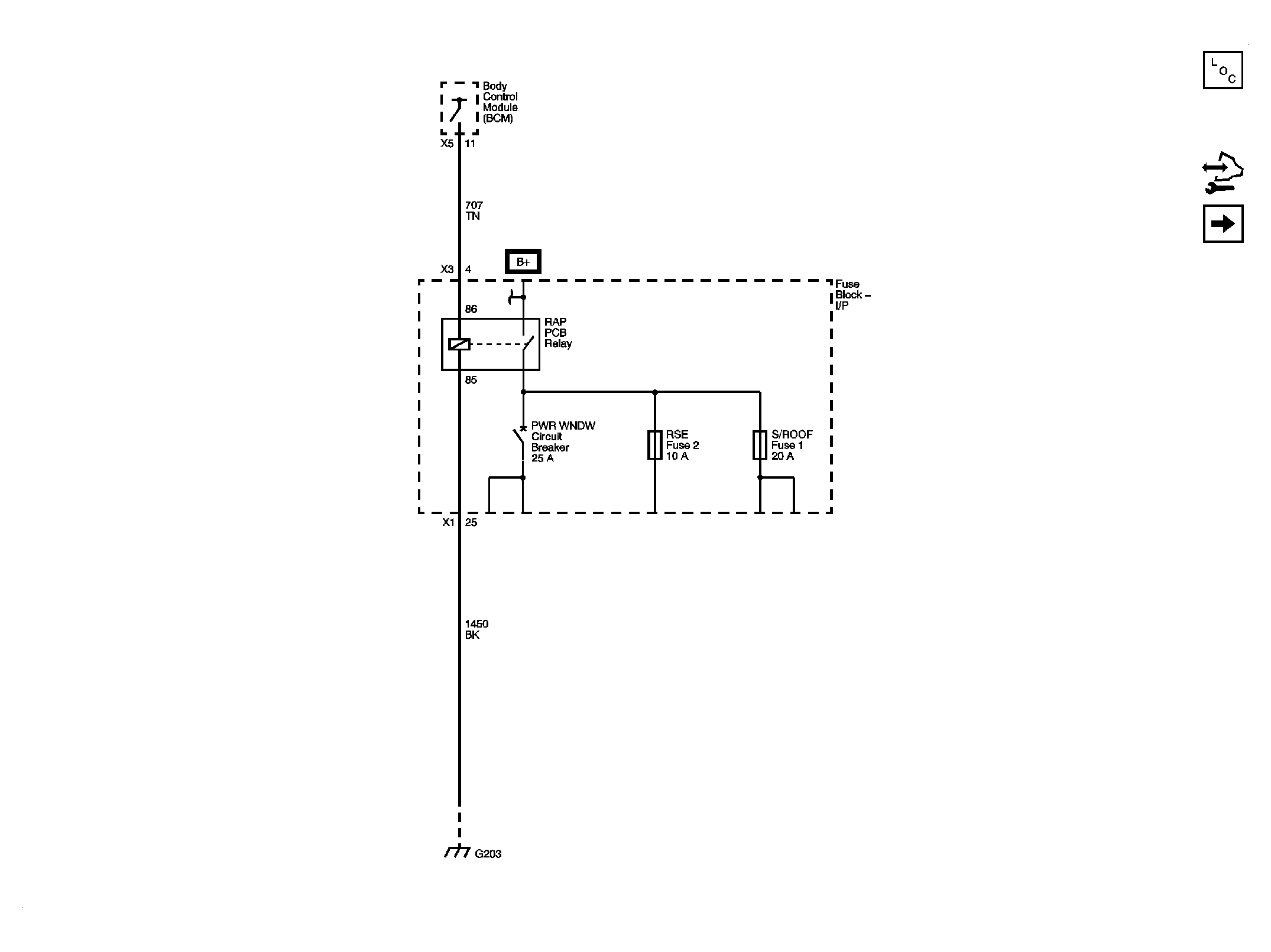

Fig 1: RAP Relay Schematic

GM2086000

Courtesy of GENERAL MOTORS CORP.

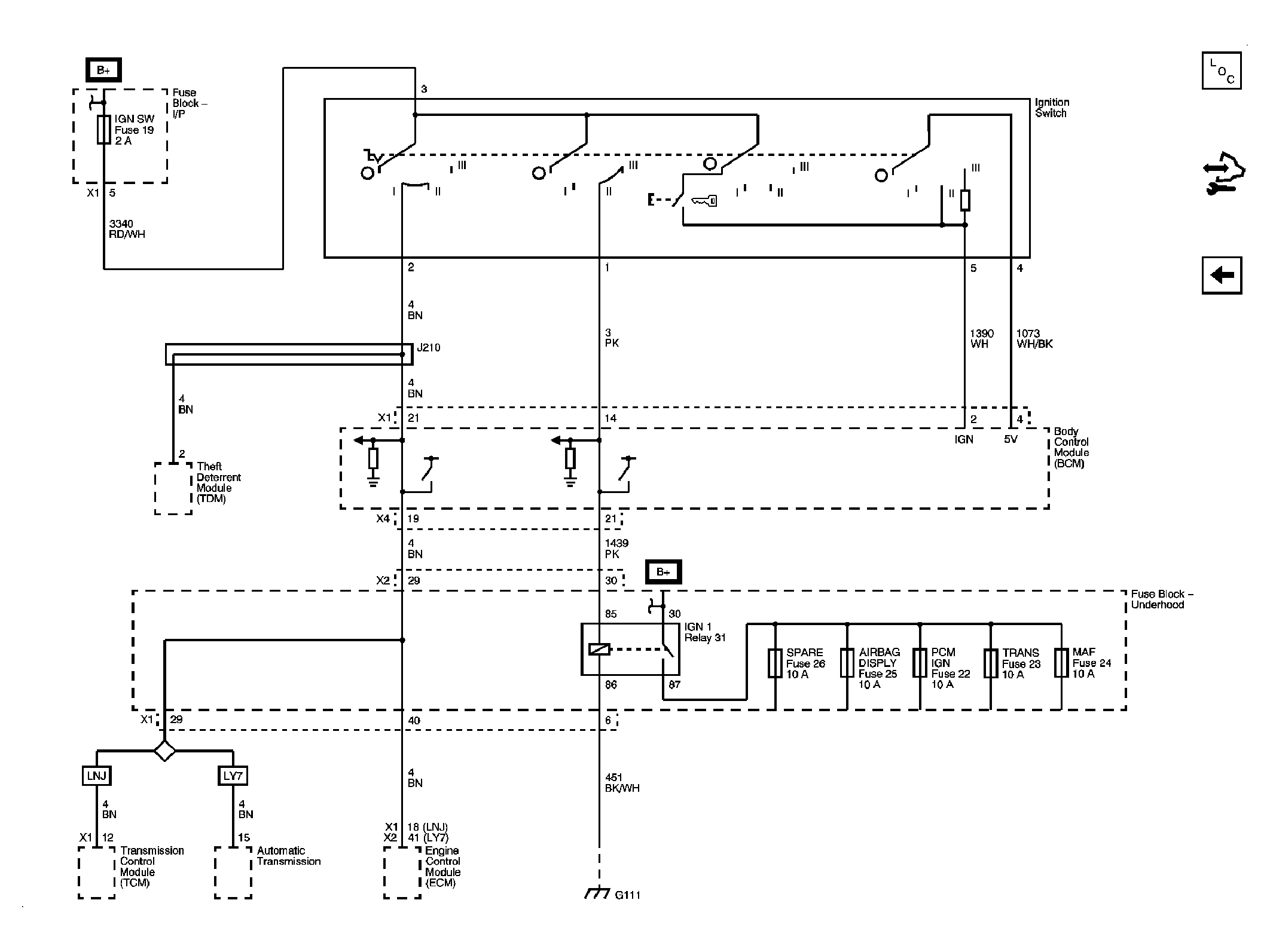

Fig 2: Ignition Switch and IGN MAIN Relay Schematic

GM2086006

Courtesy of GENERAL MOTORS CORP.
