Brake Booster Pump Motor (LNF)

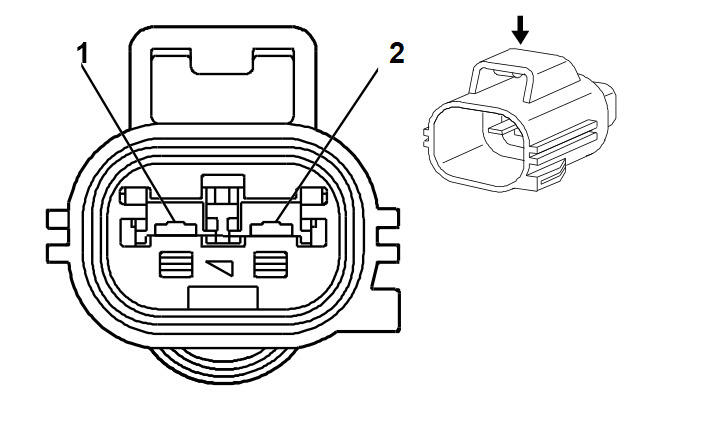

Fig 1: Brake Booster Pump Motor (LNF) Connector End View
GM1826248Courtesy of GENERAL MOTORS CORP.
Brake Booster Pump Motor (LNF)

Pin Wire Color Circuit No. Function
1 0.5 OG 1470 Brake Booster Pump Motor Supply Voltage
2 0.5 BK/WH 1250 Ground
Connector Part Information
  • OEM: 7282-5575-10
  • Service: 19115602
  • Description: 2-Way M 2.8 Series, Sealed (D-GY)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
