Radio Antenna Cable Extension Cable Replacement

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

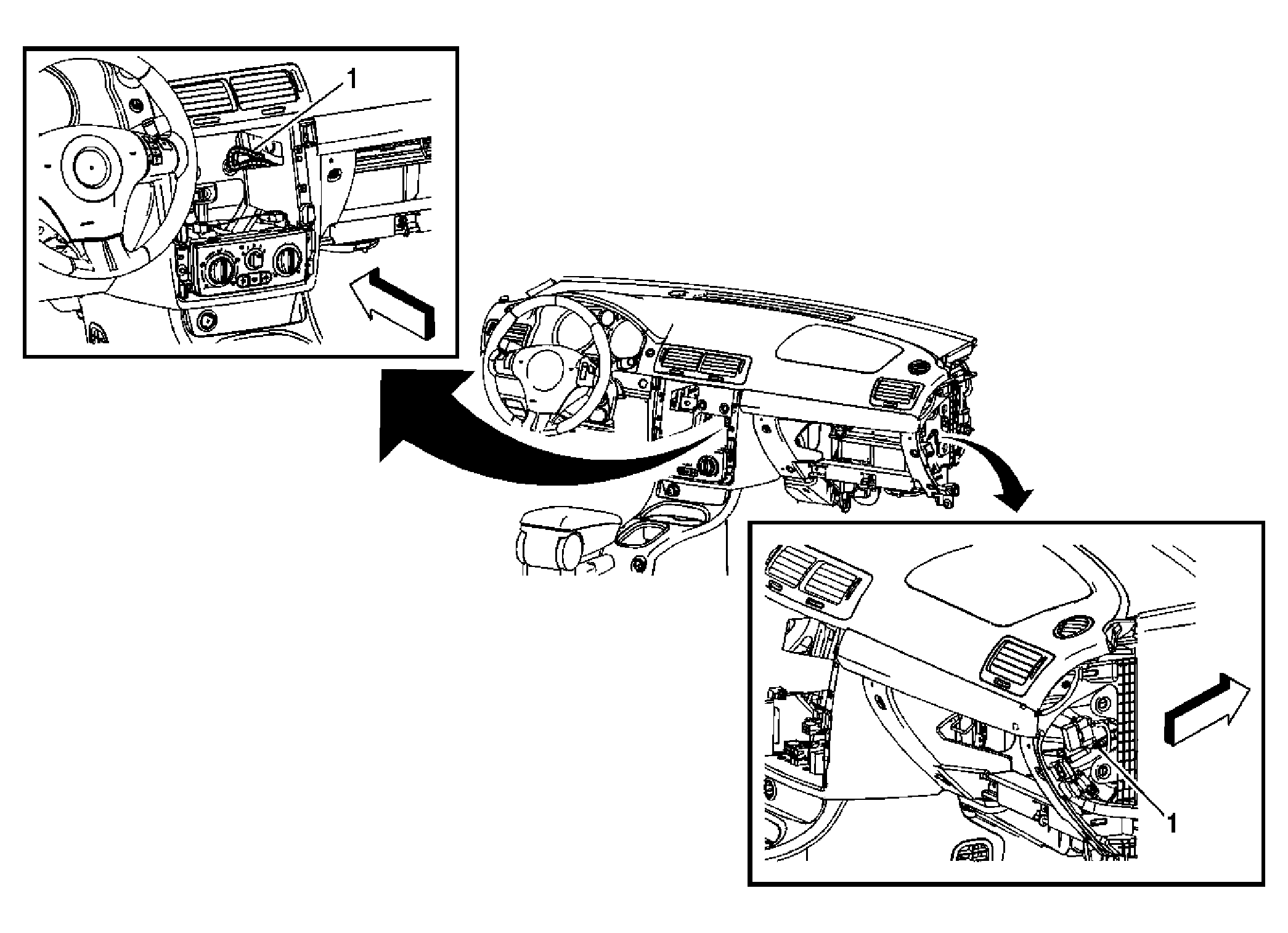

Fig 1: View Of Radio Antenna Cable Extension Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . Remove the radio. Refer to Radio Replacement . Remove the instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .
1	Radio Antenna Extension Cable Assembly Procedure Disconnect the electrical connectors at each end of the radio antenna extension cable. If the antenna extension cable is taped into the wiring harness then cut the ends off the old antenna and route the new antenna threw the access holes on either side of the I/P compartment. Secure the antenna cable using tie straps.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Remove the radio. Refer to Radio Replacement .
Remove the instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .

Radio Antenna Extension Cable Assembly

Procedure

Disconnect the electrical connectors at each end of the radio antenna extension cable.
If the antenna extension cable is taped into the wiring harness then cut the ends off the old antenna and route the new antenna threw the access holes on either side of the I/P compartment. Secure the antenna cable using tie straps.
