Digital Radio Antenna Replacement
WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

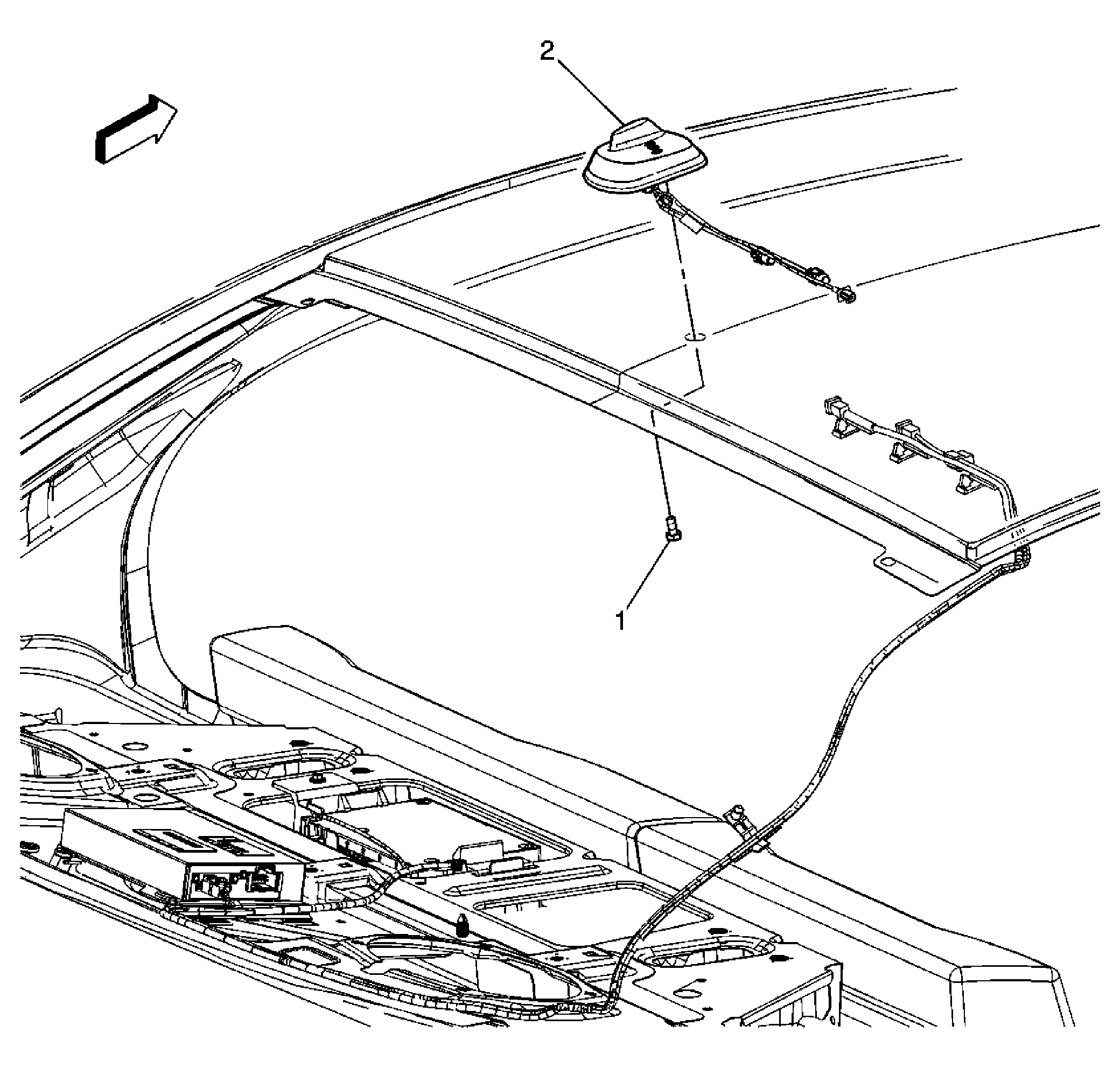

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Lower the rear of the headliner. Refer to Headlining Trim Panel Replacement . |
|
| 1 | Digital Radio Antenna Bolt
NOTE:
Refer to Fastener Notice
.
Tighten: 9 N.m (80 lb in) |
| 2 | Digital Radio Antenna Assembly Tip: Disconnect the electrical connectors. |
