Digital Radio Antenna Cable Replacement

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

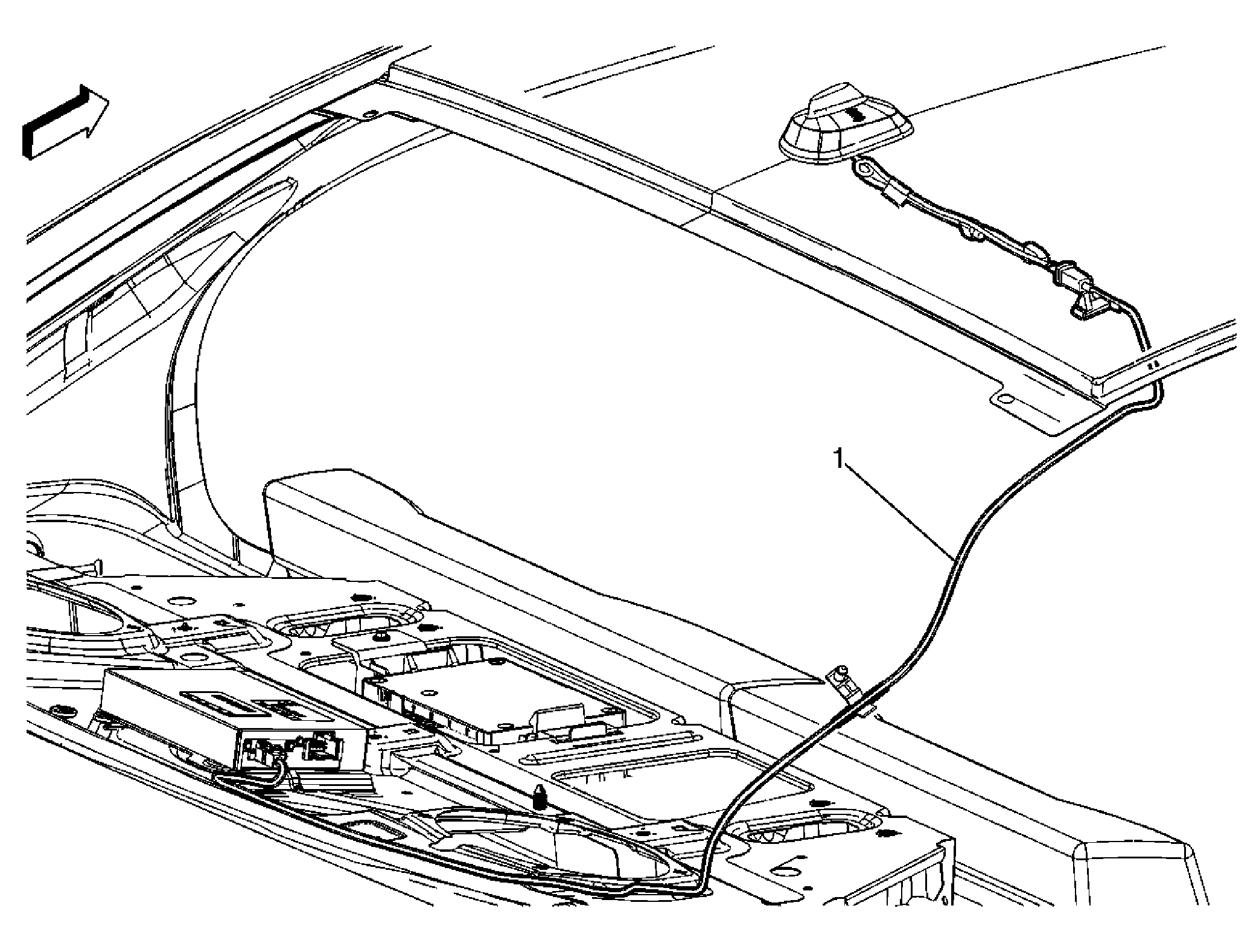

Fig 1: View Of Coaxial Cable - Digital Radio

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear shelf trim. Refer to Rear Window Shelf Trim Panel Replacement . Lower the rear of the headliner. Refer to Headlining Trim Panel Replacement .
1	Digital Radio Antenna Cable Assembly Tip: Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedures

Remove the rear shelf trim. Refer to Rear Window Shelf Trim Panel Replacement .
Lower the rear of the headliner. Refer to Headlining Trim Panel Replacement .

Digital Radio Antenna Cable Assembly
Tip: Disconnect the electrical connectors.
