Fuse Block - Underhood X6

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

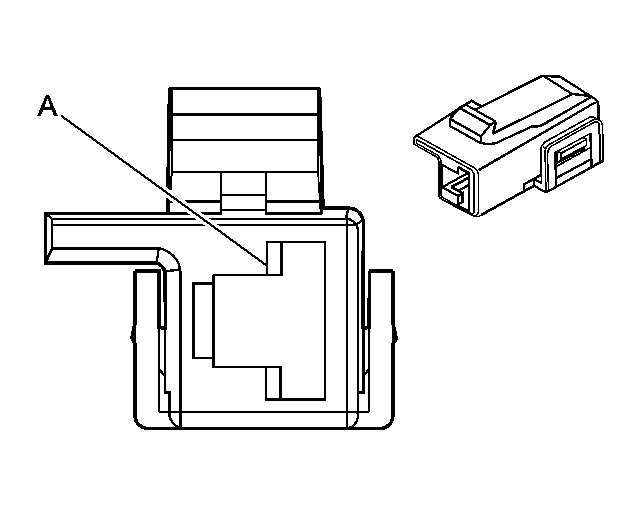

Fig 1: Fuse Block - Underhood X6 Connector End View
GM888055Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood X6

Pin Wire Circuit Function
A 5 RD/BK 642 Battery Positive Voltage
Connector Part Information
  • OEM: 15303503
  • Service: 88988312
  • Description: 1-Way F Metri-Pack 800 Series (L-GY)
Terminal Part Information
  • Terminal/Tray: 12110127/19
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12150860/J-35616-44 (YE)
