Fuse Block - Underhood Label - Solstice Coupe (LE5 with MA5)

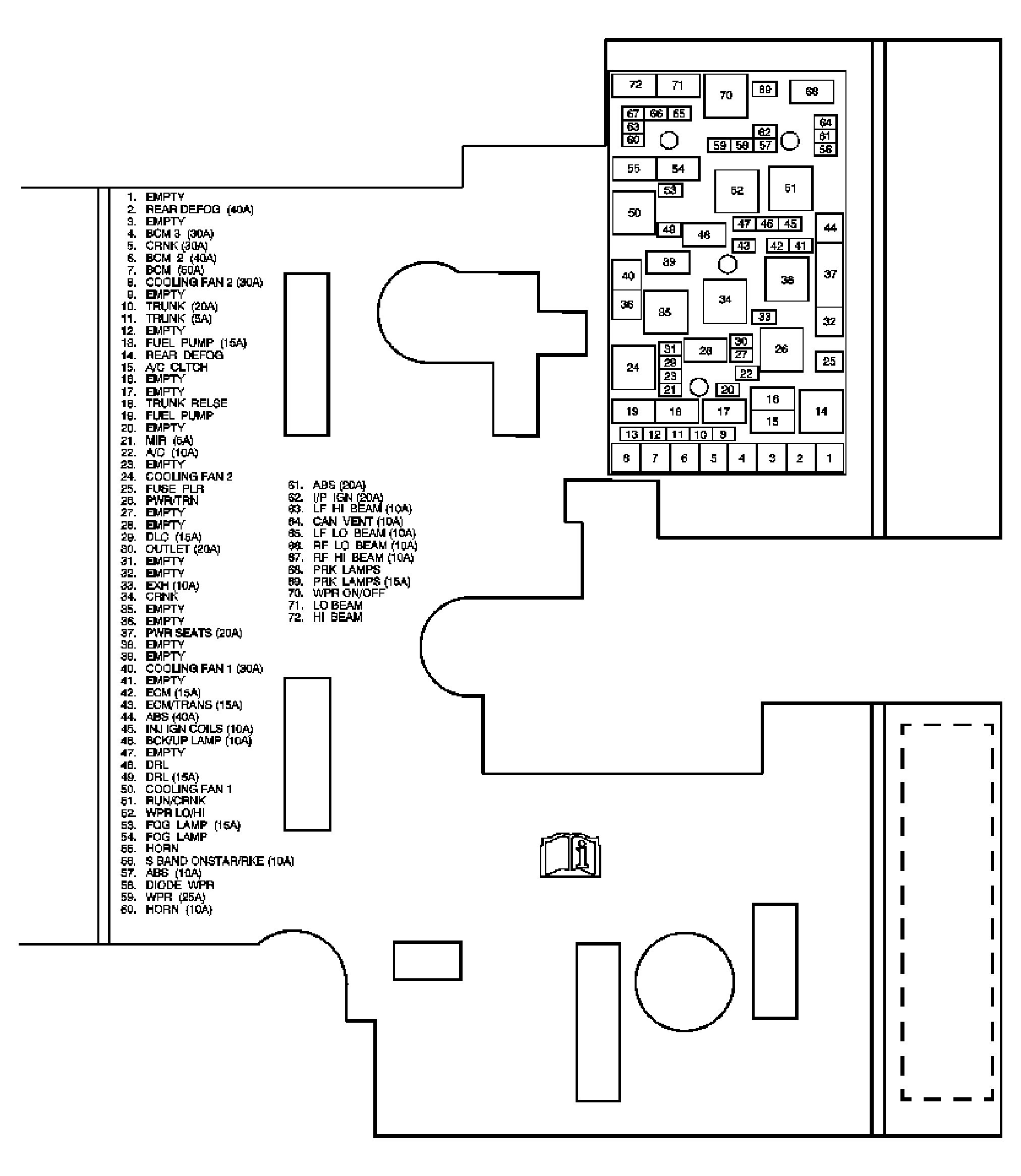

Fig 1: View Of Fuse Block - Underhood Label - Solstice Coupe (LE5 with MA5)

GM2135971

Courtesy of GENERAL MOTORS CORP.
