Inflatable Restraint Steering Wheel Module Coil Replacement

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

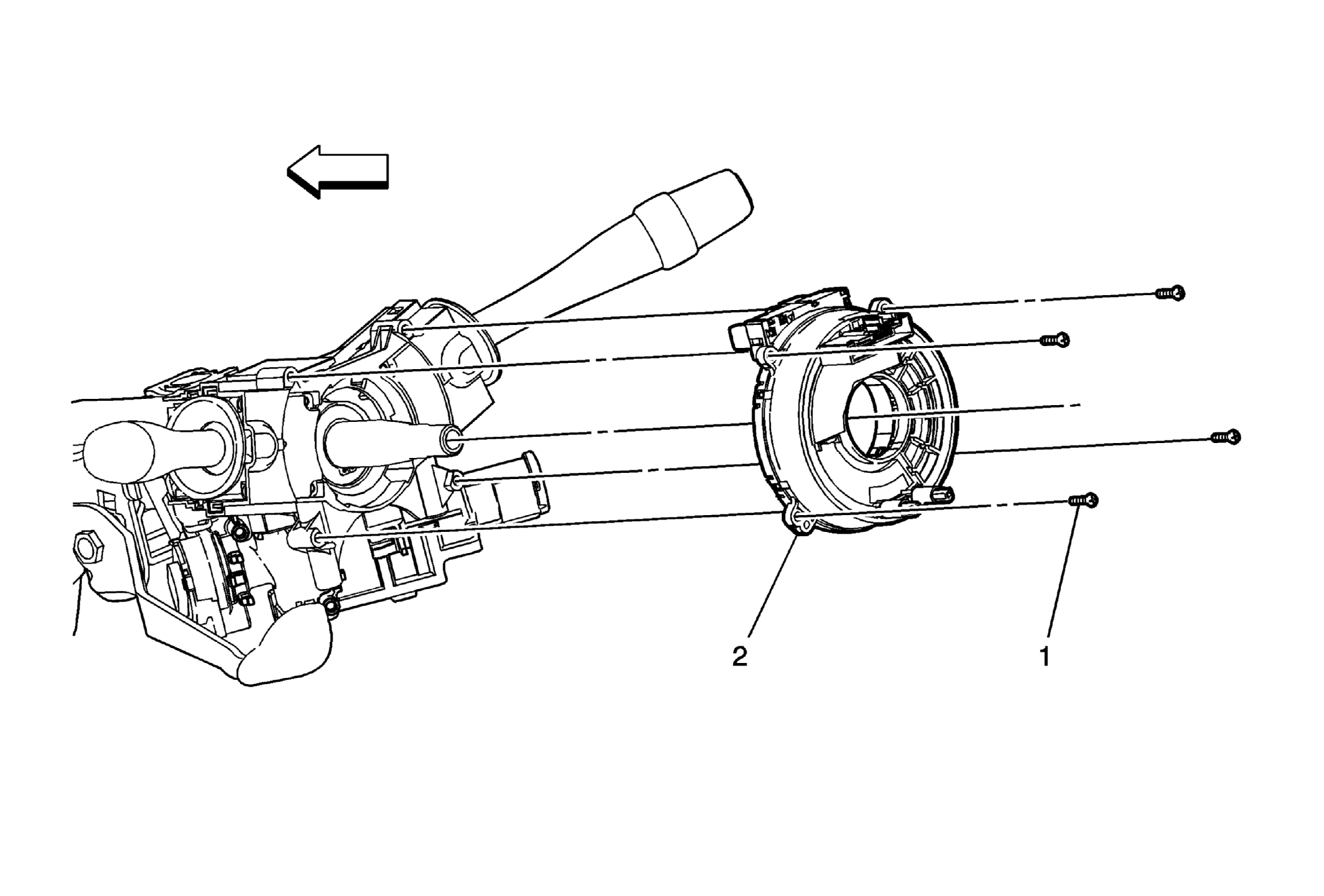

Fig 1: View Of Inflatable Restraint Steering Wheel Module Coil
GM2085980Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove the steering wheel. Refer to Steering Wheel Replacement
  2. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
1 Inflatable Restraint Steering Wheel Module Coil Bolt (Qty: 4)
NOTE: Refer to Fastener Notice .

Tighten:  1.5 N.m (13 lb in)
2 Inflatable Restraint Steering Wheel Module Coil

Procedure

  1. Disconnect any electrical connectors as needed.
  2. If re-centering of the inflatable restraint steering wheel module coil is needed then refer to Inflatable Restraint Steering Wheel Module Coil Centering .
