Power Distribution Schematics

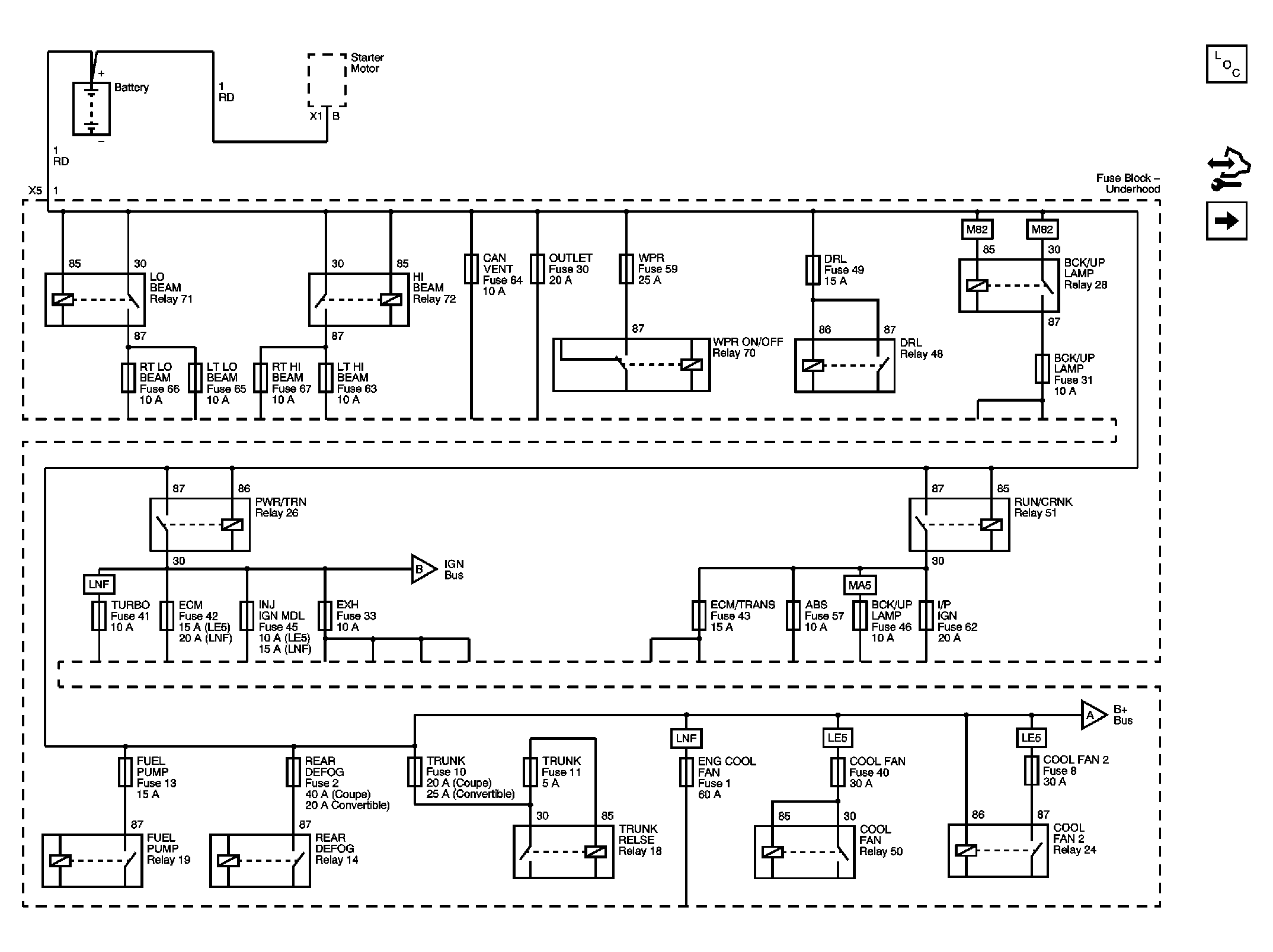

Fig 1: B+ Bus (1 of 2)
GM2049667Courtesy of GENERAL MOTORS CORP.

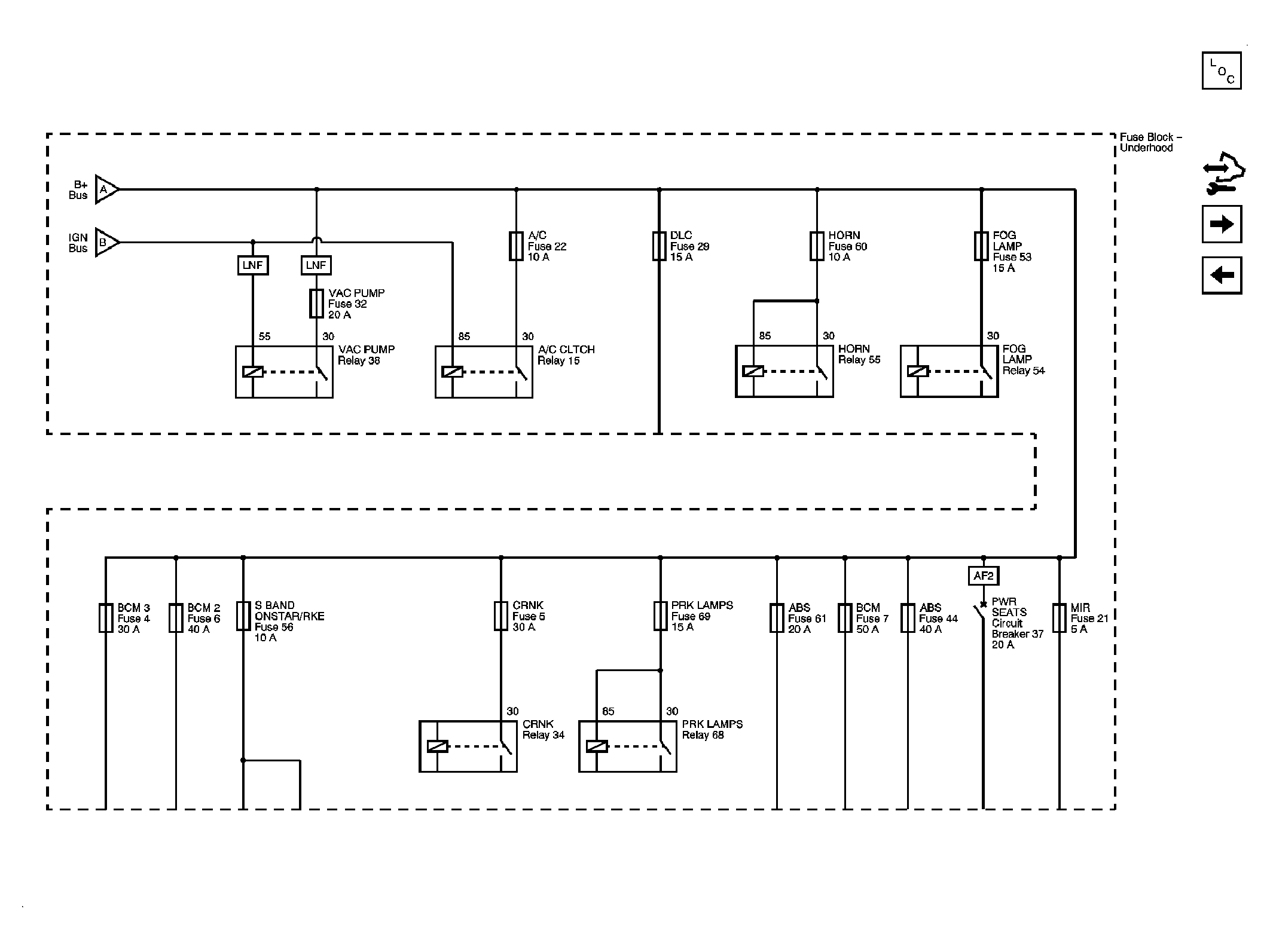

Fig 2: B+ Bus (2 of 2)
GM2049669Courtesy of GENERAL MOTORS CORP.

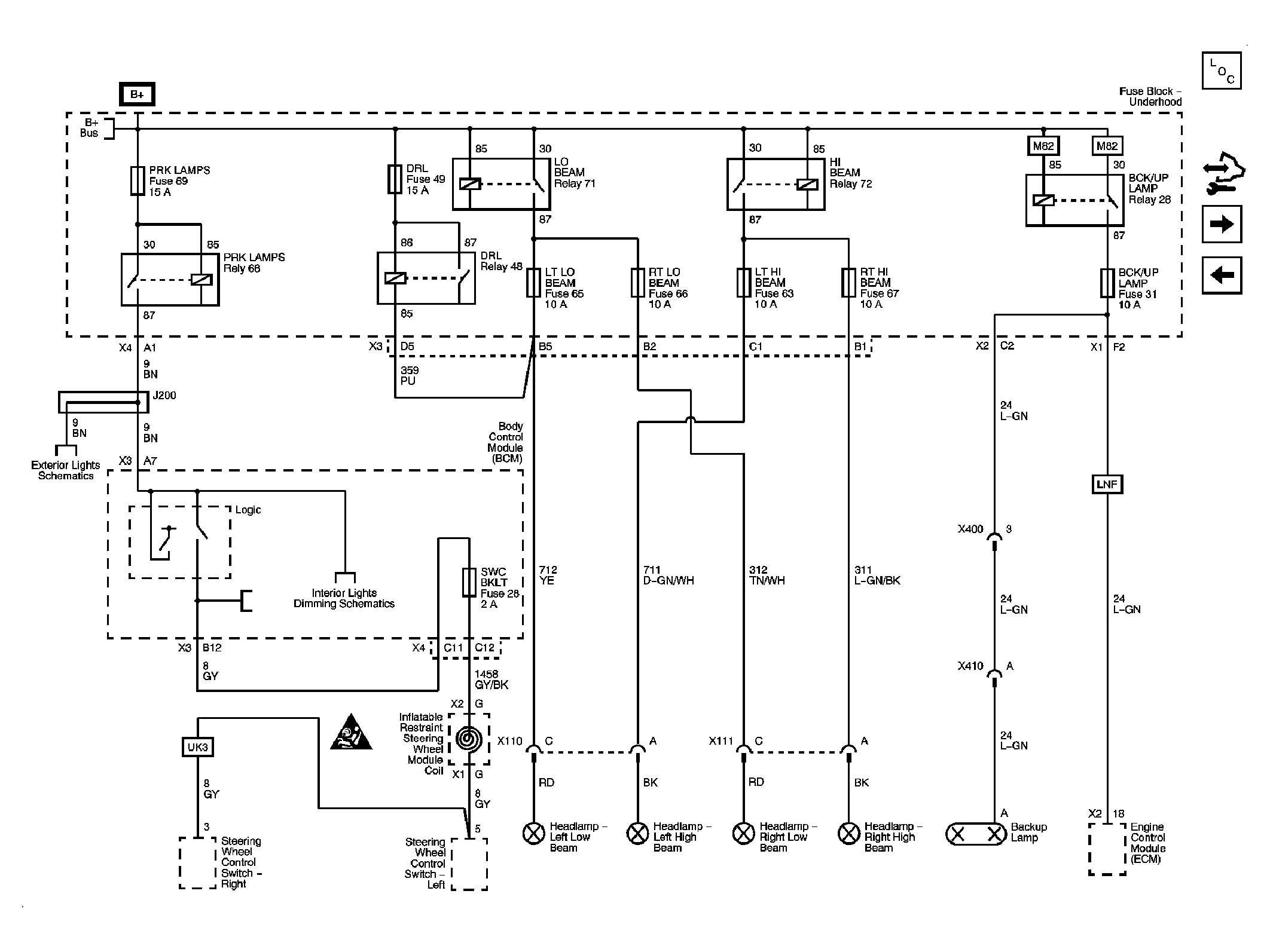

Fig 3: LT LO BEAM, LT HI BEAM, RT LO BEAM & RT HI BEAM, Park Lamp, DRL & BCK/UP Lamp (M82) Fuses (SKY)
GM2049672Courtesy of GENERAL MOTORS CORP.
Fig 4: LT LO BEAM, LT HI BEAM, RT LO BEAM & RT HI BEAM & DRL Fuses (Solstice)
GM2049674Courtesy of GENERAL MOTORS CORP.

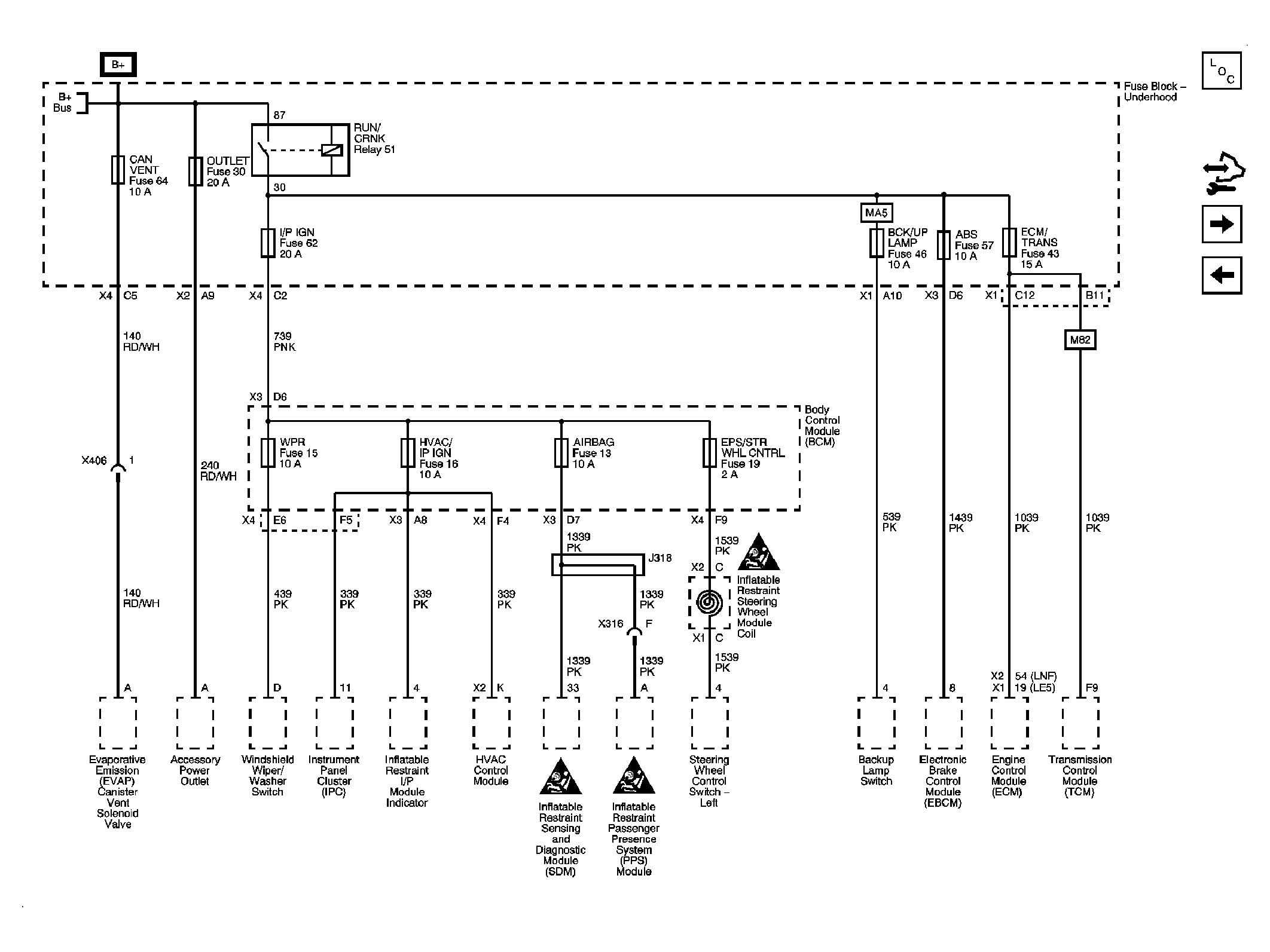

Fig 5: ECM/TRANS, ABS, BCK/UP LAMP (MA5), I/P IGN, OUTLET, CAN VENT, AIR BAG, EPS/STR WHL CNTRL, HVAC/IP IGN & WPR Fuses
GM2049676Courtesy of GENERAL MOTORS CORP.

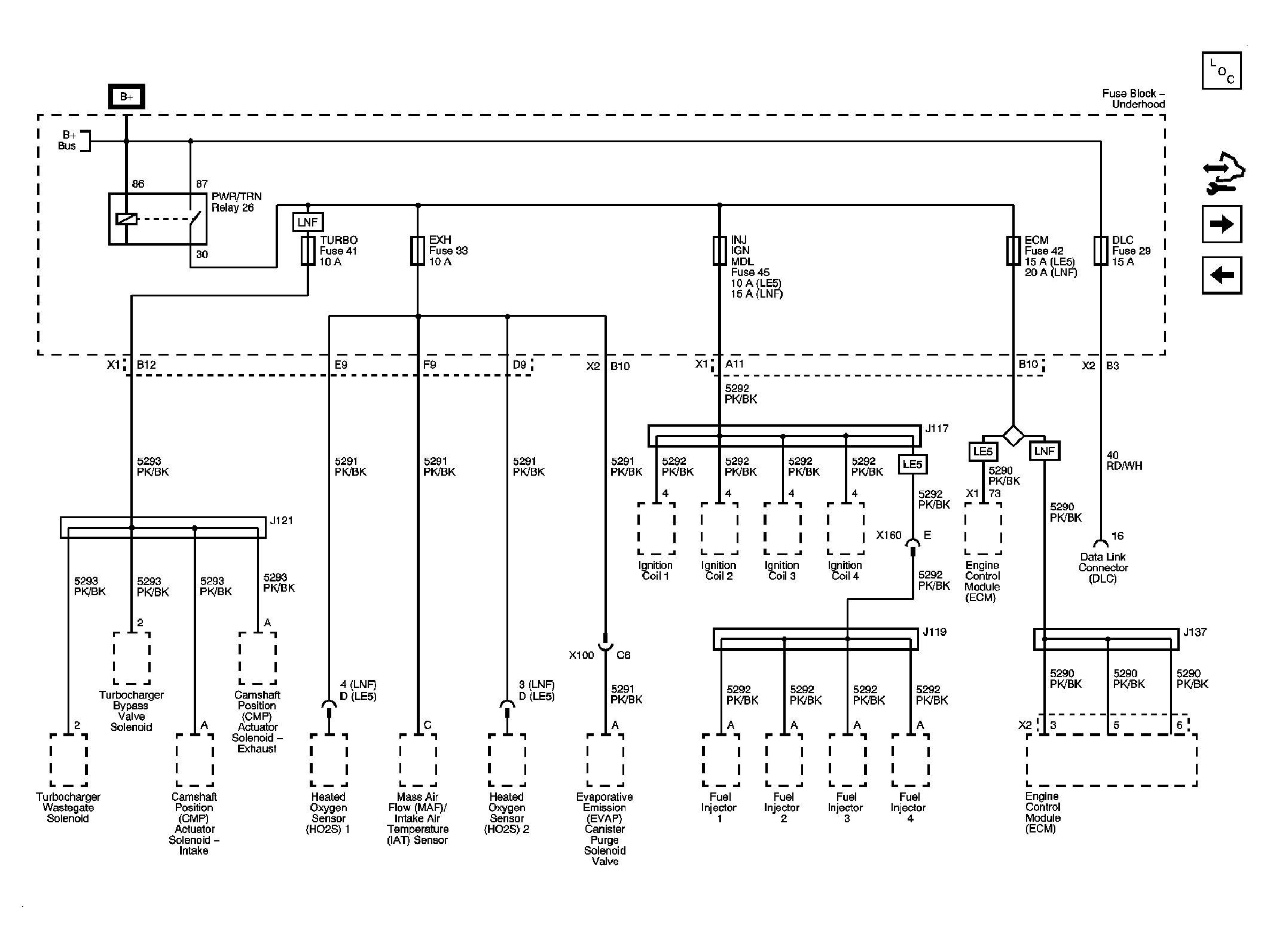

Fig 6: DLC, ECM, EXH, INJ IGN MDL & Turbo (LNF) Fuses
GM2049688Courtesy of GENERAL MOTORS CORP.

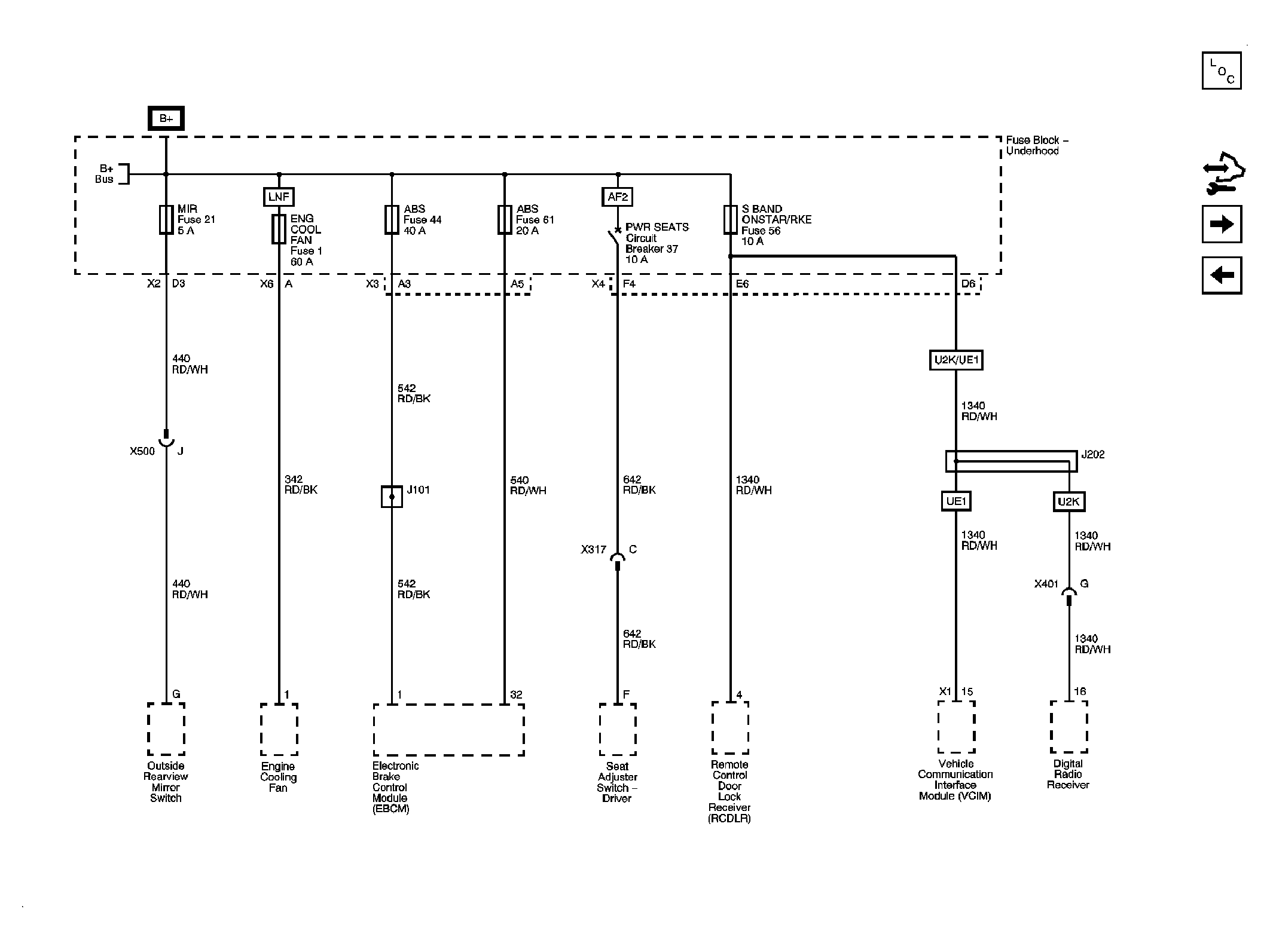

Fig 7: MIR, ENG COOL FAN, ABS, S-BAND ONSTAR/RKE Fuses & PWR SEATS Circuit Breaker
GM2049692Courtesy of GENERAL MOTORS CORP.

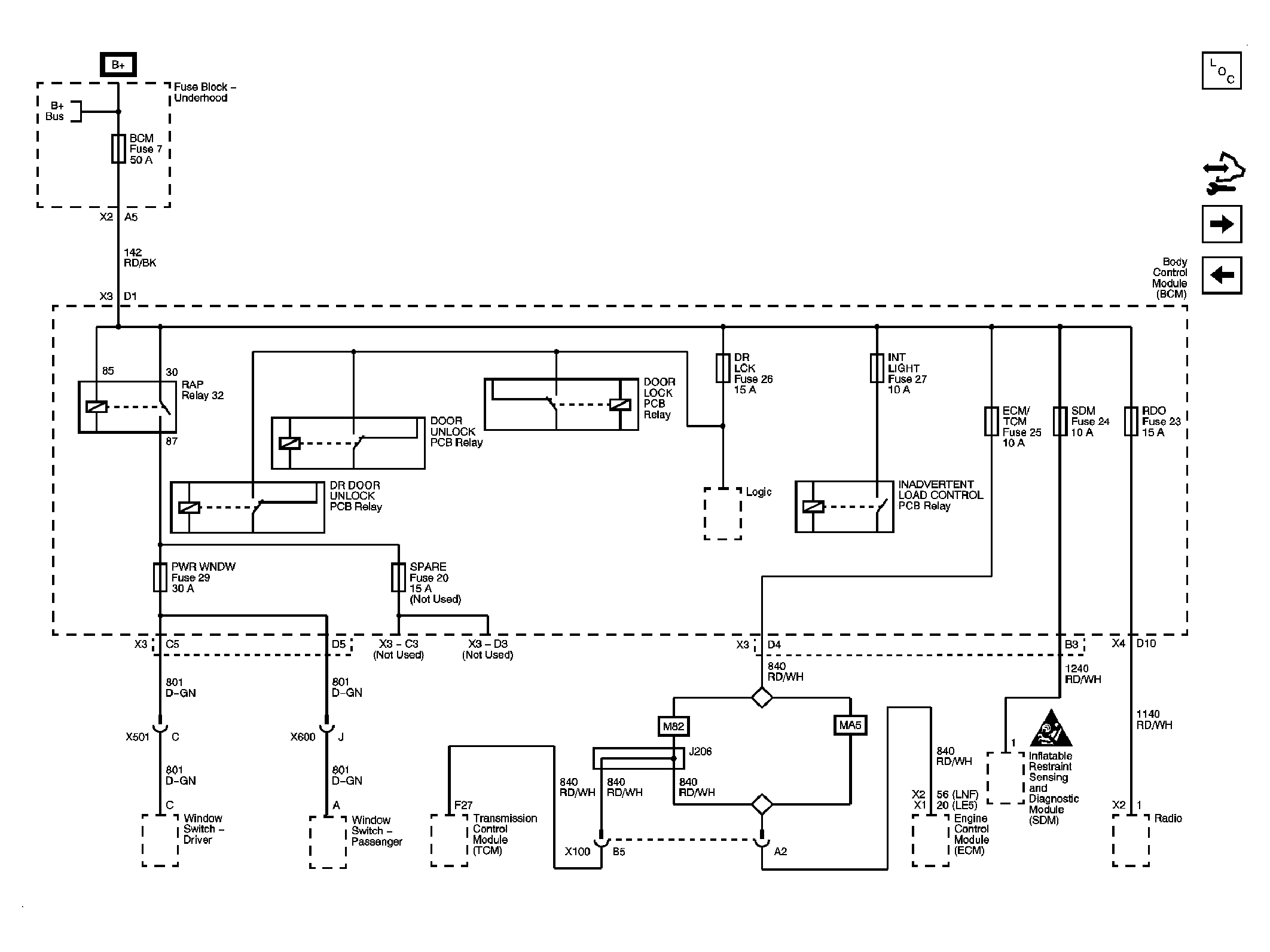

Fig 8: BCM, DR LCK, ECM/TCM, INT/LIGHT, PWR WNDW, RDO & SDM Fuses
GM2049697Courtesy of GENERAL MOTORS CORP.
Fig 9: BCM2, BCM3, CLSTR, IGN SW/PK3+, HVAC/PK3+ & AMP Fuses
GM2049701Courtesy of GENERAL MOTORS CORP.

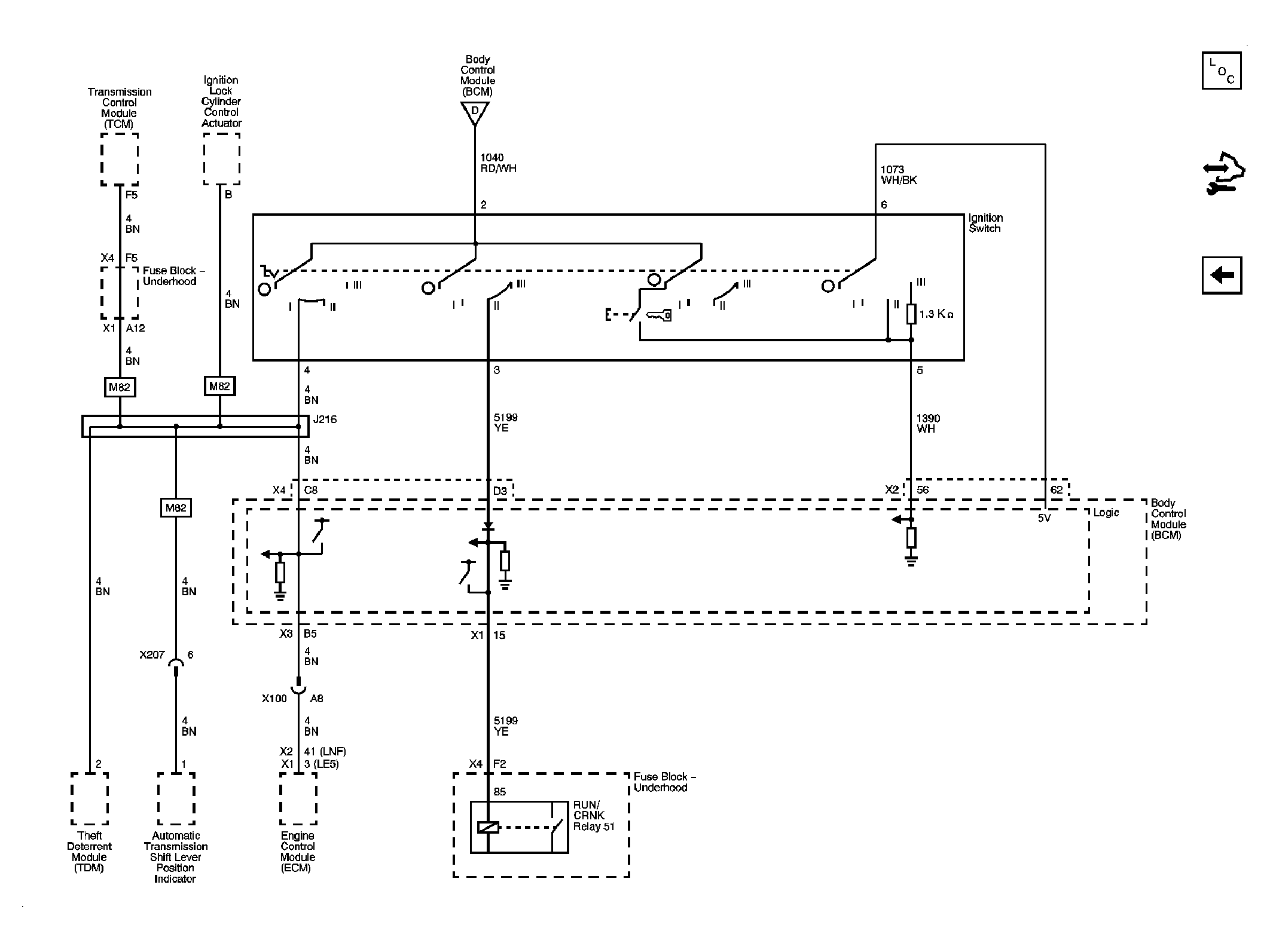

Fig 10: Ignition Switch Modes
GM2049705Courtesy of GENERAL MOTORS CORP.
