Harness Routing Views

Fig 1: Identifying Forward Lamp Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X111 (SKY)
2	G102
3	J115
4	Wheel Speed Sensor (WSS) - Right Front
5	X102
6	J115
7	J105
8	J129
9	Fuse Block - Underhood
10	X120
11	J103
12	X103
13	J130
14	J131
15	J109
16	Electronic Brake Control Module (EBCM)
17	J101
18	Wheel Speed Sensor (WSS) - Left Front
19	G101
20	G105
21	X110 (SKY)

Fig 2: Identifying Engine Harness - Left Side (LE5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X160
2	J104
3	J108
4	Engine Control Module (ECM)
5	Transmission Control Module (TCM) (M82)
6	Starter Motor

Fig 3: Identifying Engine Harness - Right Side (LE5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J107
2	J106
3	J108
4	Fuse Block - Underhood Bracket
5	X100
6	Fuse Block - Underhood
7	Engine Coolant Temperature (ECT) Sensor
8	Camshaft Position (CMP) Actuator Solenoid - Exhaust
9	G103
10	Evaporative Emission (EVAP) Canister Purge Solenoid Valve

Fig 4: Identifying Engine Harness Routing (1 of 2 - LNF)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block-Underhood
2	X162
3	Transmission Control Module (TCM) (M82)
4	Engine Control Module (ECM) Bracket
5	J137
6	J142
7	J141
8	J120
9	Engine Harness

Fig 5: Identifying Engine Harness Routing (2 of 2 - LNF)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J123
2	J124
3	Engine Harness
4	J121
5	X100
6	Fuse Block - Underhood
7	G103
8	J140
9	J107
10	X175 (M82)
11	Automatic Transmission (M82)

Fig 6: Identifying Engine Compartment Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	X500
3	X100
4	X120
5	X122 (SKY)
6	X600

Fig 7: Identifying I/P Harness - Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood X2
2	X600
3	J135
4	X100
5	X120
6	J134
7	J136
8	Fuse Block - Underhood X4

Fig 8: Identifying Lower Right Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator - Right
2	Air Temperature Actuator - Left
3	Mode Actuator
4	Ambient Light Sensor
5	Air Vent Grille
6	HVAC Control Module
7	X216
8	X218
9	Blower Motor
10	Blower Motor Connector
11	Blower Motor High Speed Relay
12	Blower Motor Resistor Assembly
13	X208

Fig 9: Identifying I/P Harness - Behind Driver & Passenger Seat Area

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J300
2	J226
3	G303
4	J400
5	G301
6	G304
7	J205
8	G300
9	X317
10	X316
11	J303 (JL9)
12	J304 (JL9)
13	G302

Fig 10: Identifying Rear Compartment Area Instrument Panel Body Harness Splices

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J415
2	J403
3	J300
4	J311
5	J318
6	X316
7	J303 (JL9)
8	J304 (JL9)

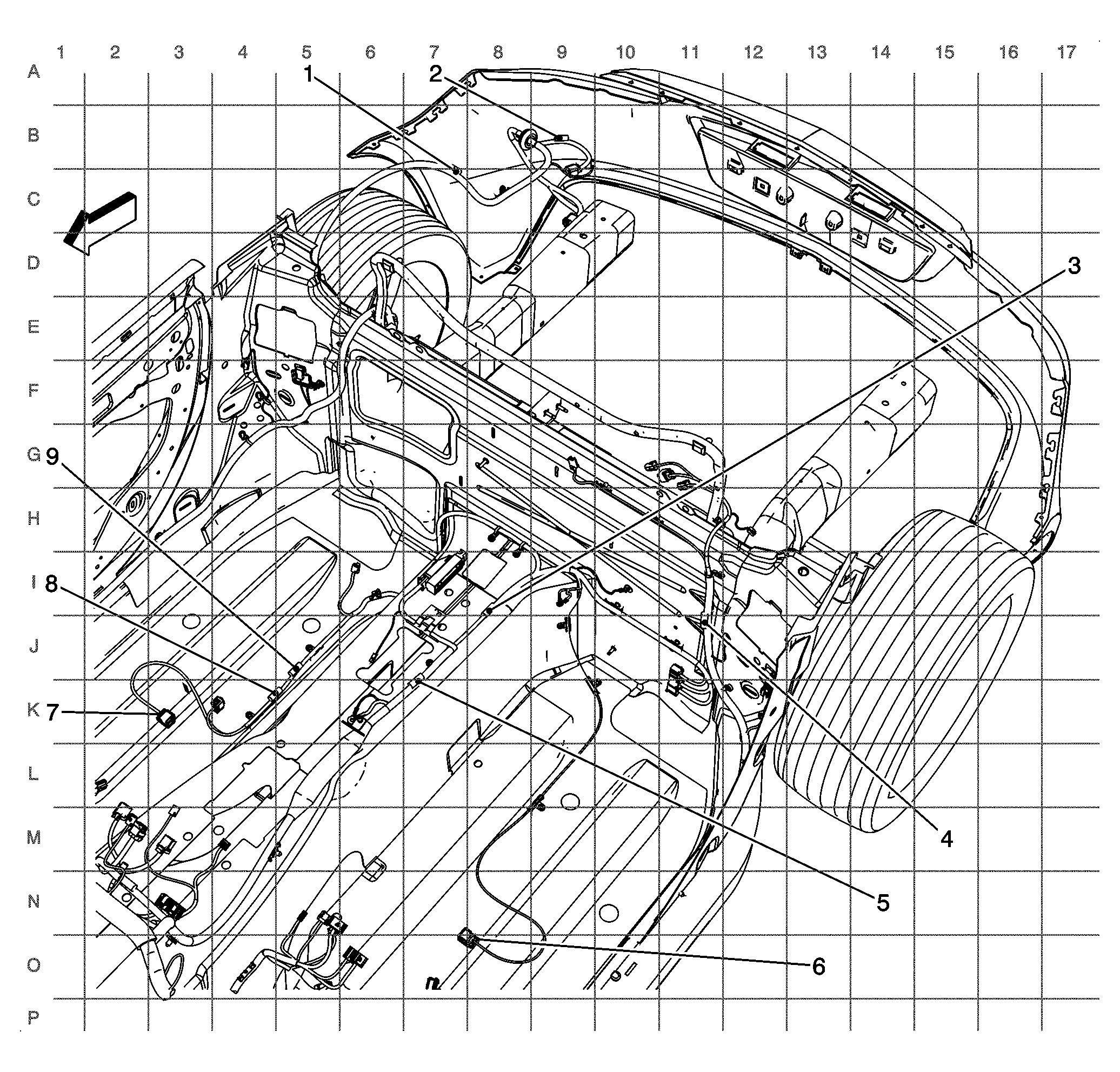

Fig 11: Identifying I/P Harness - Right Rear Quarter Panel (Solstice)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Harness
2	J403
3	Backup Lamp - Right
4	X400
5	X406
6	X408
7	Drain (U2K)
8	J402
9	Backup Lamp - Right Connector

Fig 12: Identifying Underneath Floor Shifter

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X207
2	Floor Shifter

Fig 13: Identifying Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Outside Rearview Mirror - Driver
3	Outside Rearview Mirror Connector - Driver
4	X501
5	X500
6	J501
7	Speaker Connector - Left Front
8	J500
9	Window Motor - Driver
10	Window Switch - Driver
11	Door Lock Actuator - Driver

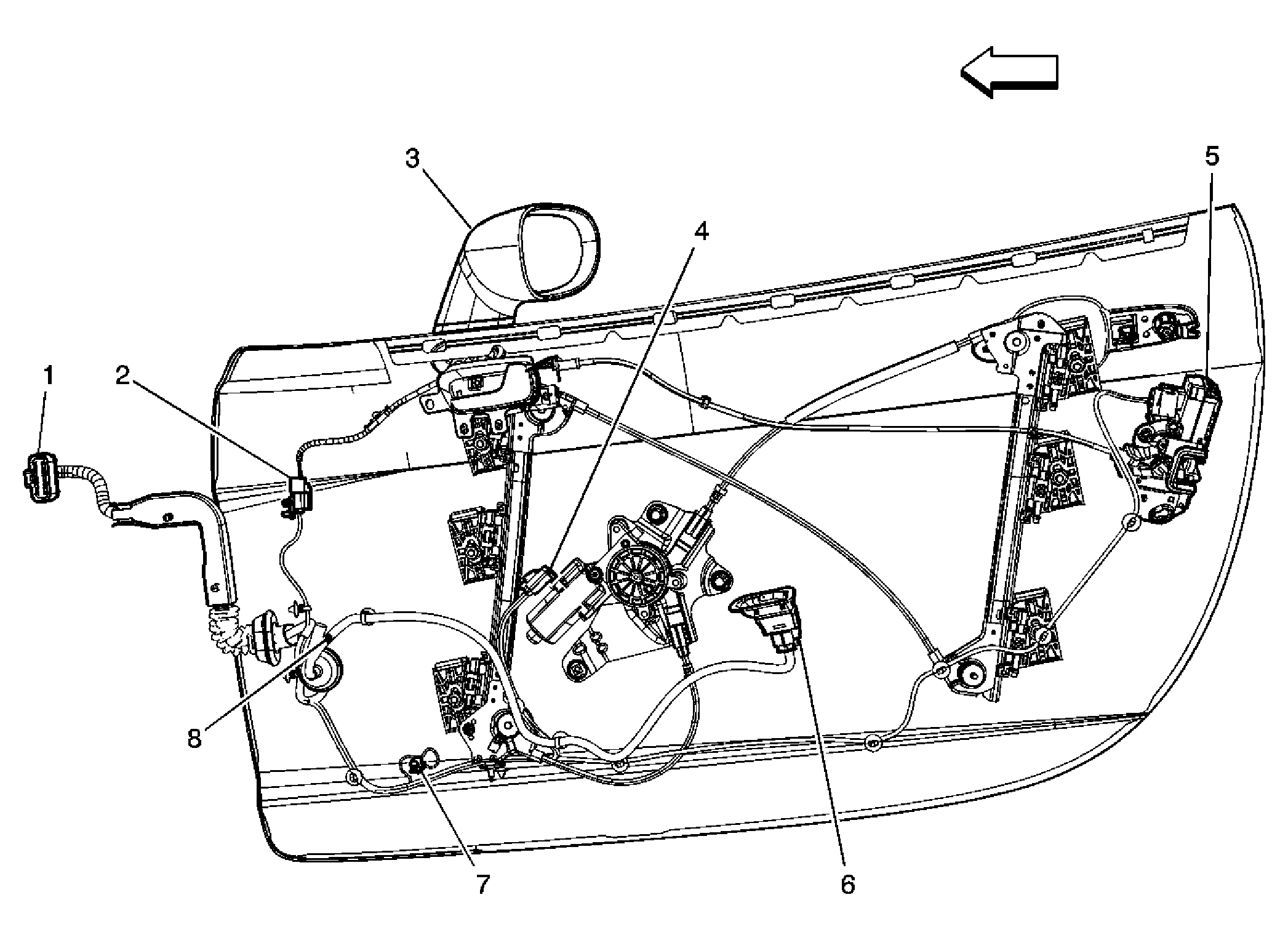

Fig 14: Identifying Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X600
2	Outside Rearview Mirror Connector - Passenger
3	Outside Rearview Mirror - Passenger
4	Window Motor - Passenger
5	Door Lock Actuator - Passenger
6	Window Switch - Passenger
7	Speaker Connector - Right Front
8	J600

Fig 15: Identifying Rear Fascia Harness Routing (SKY)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X405
2	X410
3	X408
4	X406
5	X400
6	X407

Fig 16: Identifying Rear Fascia Harness (Solstice)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X400
2	J401
3	Backup Lamp - Right
4	J402
5	Center High Mounted Stop Lamp (CHMSL)
6	License Lamp

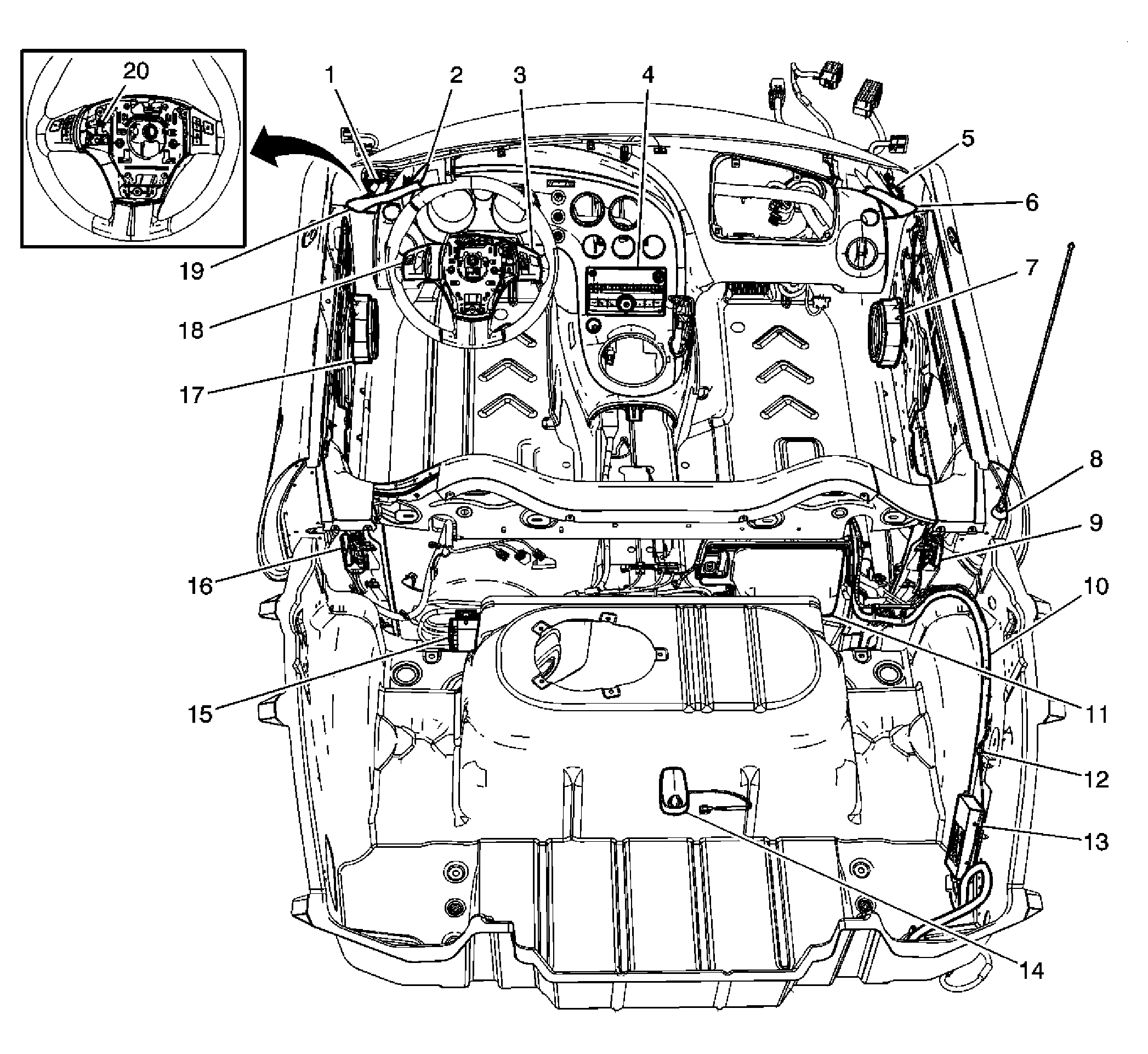

Fig 17: Identifying Entertainment Harness Routing Rear Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Left Tweeter
2	Cellular Telephone Microphone (UE1)
3	Steering Wheel Control Switch - Right (UK3)
4	Radio
5	Speaker - Right Tweeter
6	Windshield Side Molding Garnish - Right
7	Speaker - Right Front
8	Antenna
9	Speaker - Right Rear
10	Instrument Panel Body Harness
11	Speaker - Subwoofer (UQ3)
12	X401 (U2K)
13	Digital Radio Receiver (U2K)
14	Cellular and Navigational Antenna (UE1/U2K)
15	Audio Amplifier (UQ3)
16	Speaker - Left Rear
17	Speaker - Left Front
18	Steering Wheel Control Switch - Left (K34)
19	Windshield Side Molding Garnish - Left
20	Horn Switch
