Ground Distribution Schematics

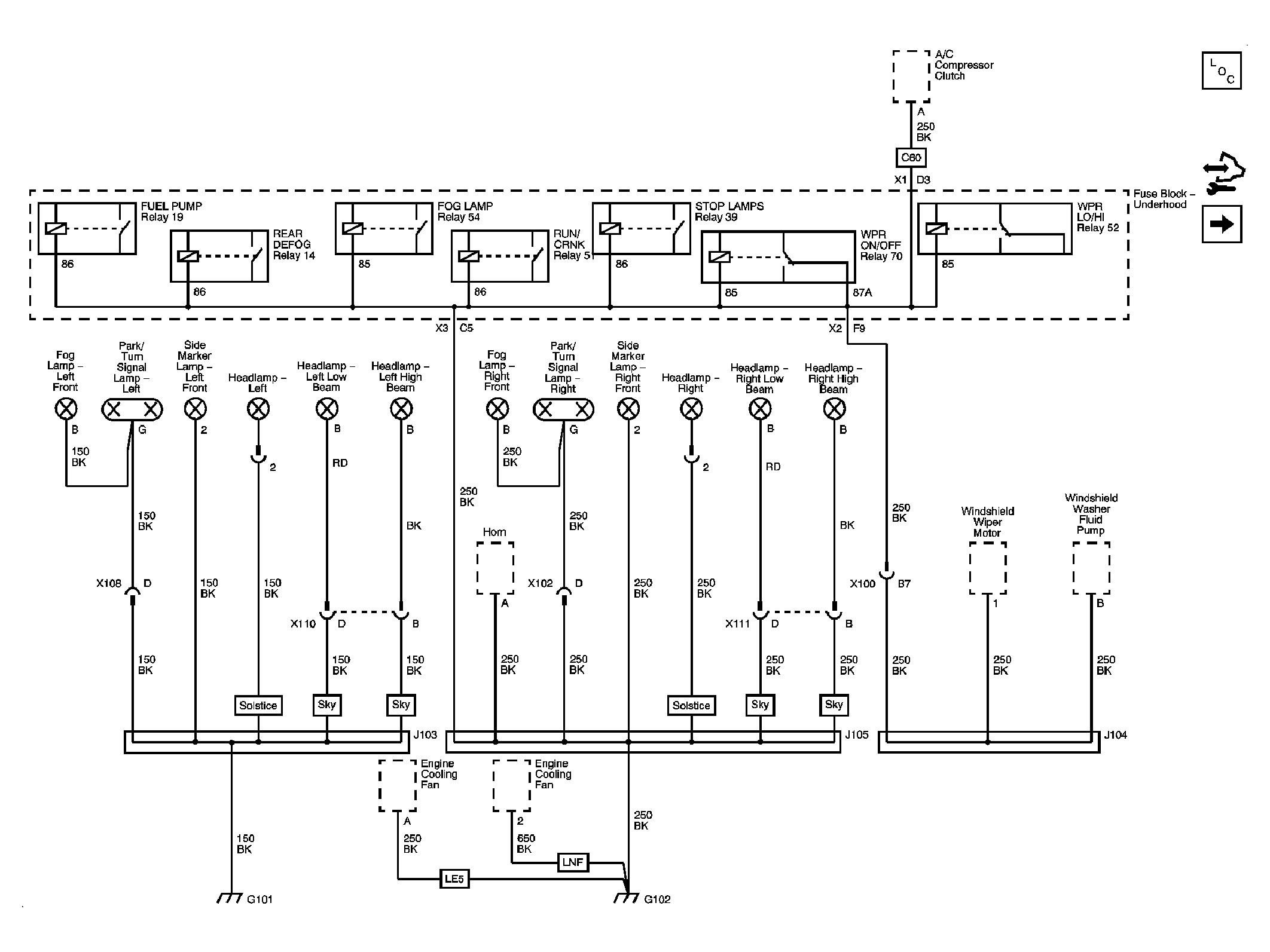

Fig 1: G101 & G102
GM2049713Courtesy of GENERAL MOTORS CORP.

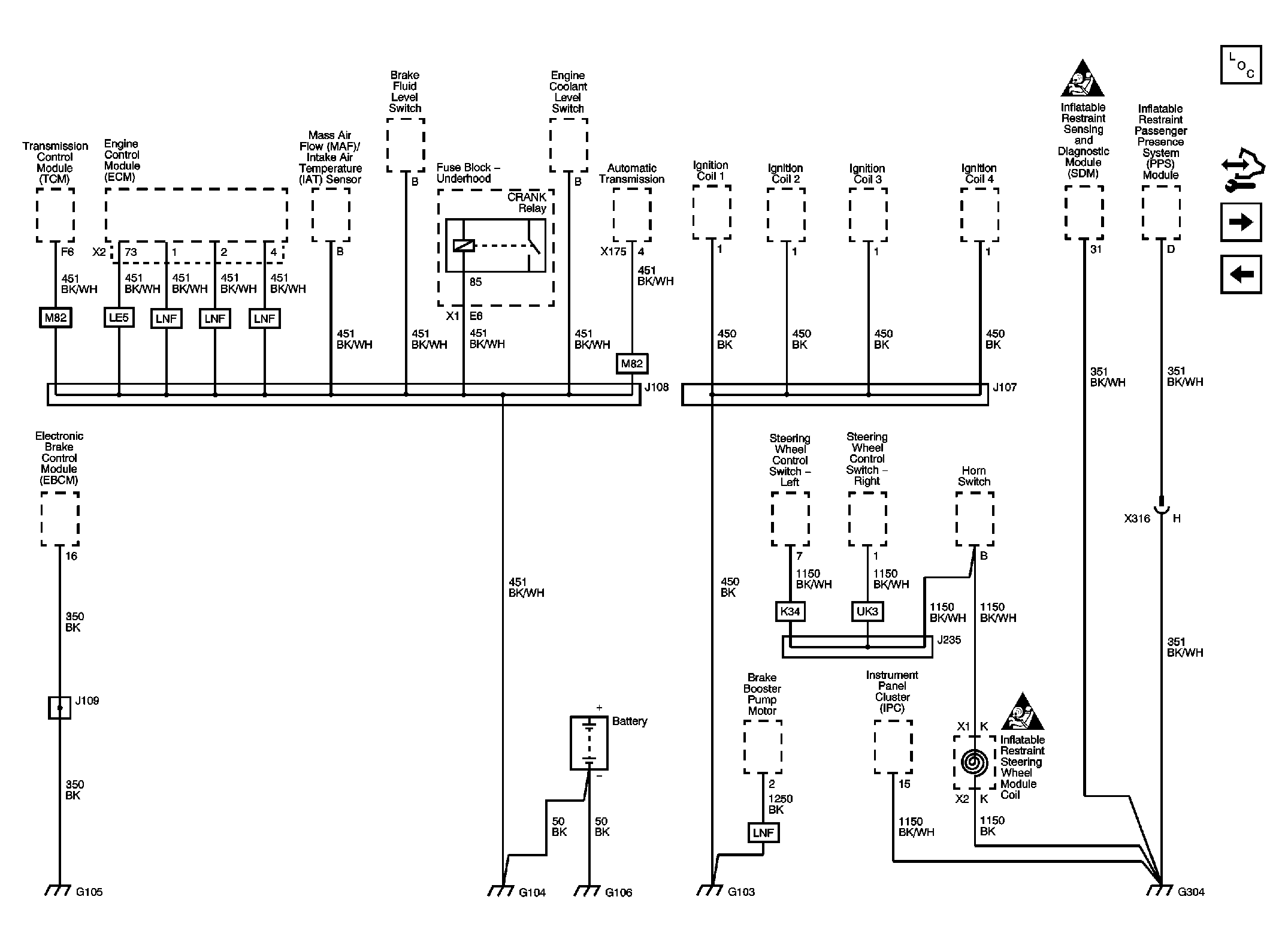

Fig 2: G103, G105, G104, G106, G304
GM2049716Courtesy of GENERAL MOTORS CORP.
Fig 3: G300 (1 of 2)
GM2049723Courtesy of GENERAL MOTORS CORP.

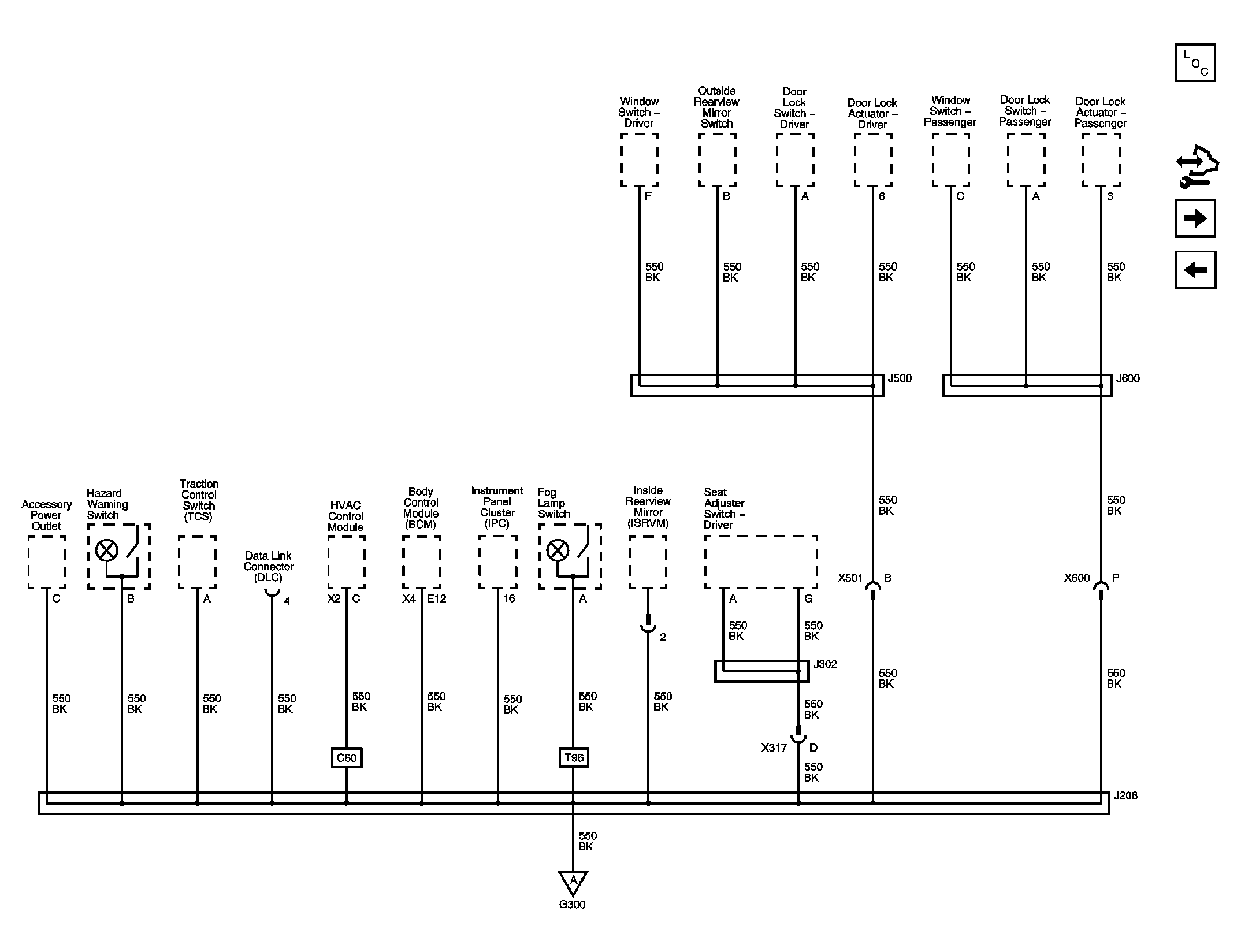

Fig 4: G300 (2 of 2)
GM2049727Courtesy of GENERAL MOTORS CORP.

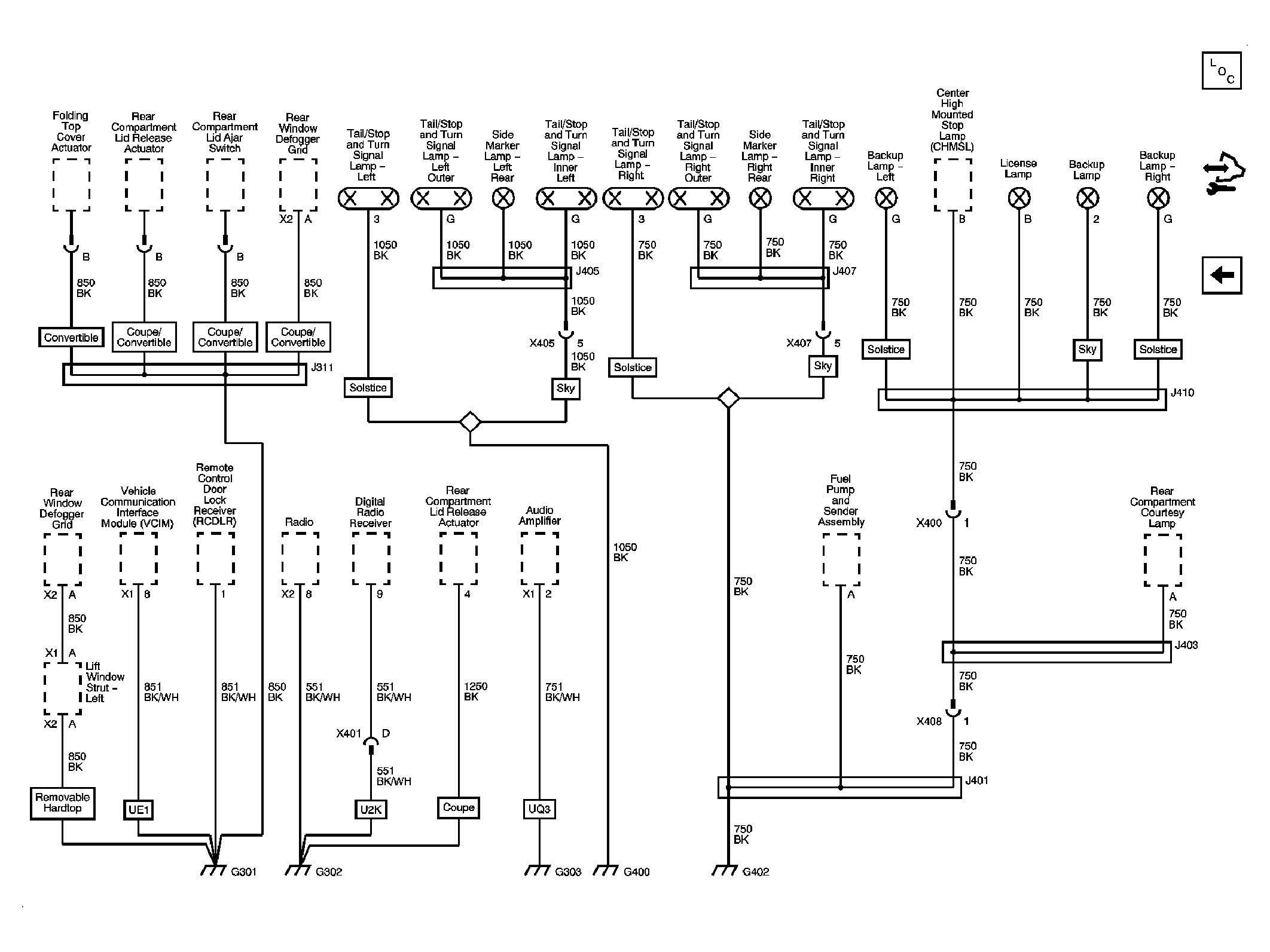

Fig 5: G301, G302, G303, G400, G402
GM2049732Courtesy of GENERAL MOTORS CORP.
