Removal Procedure

  1. Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
  2. Remove the rear seat back. Refer to Rear Seat Back Cushion Replacement .
  3. Remove the upper rear quarter trim panel. Refer to Quarter Upper Trim Panel Replacement .
    4. Fig 1: Identifying Rear Seat Belt Lower Anchor To Body Retaining Bolt
    GM2048214Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear seat belt lower anchor to body retaining bolt (1).

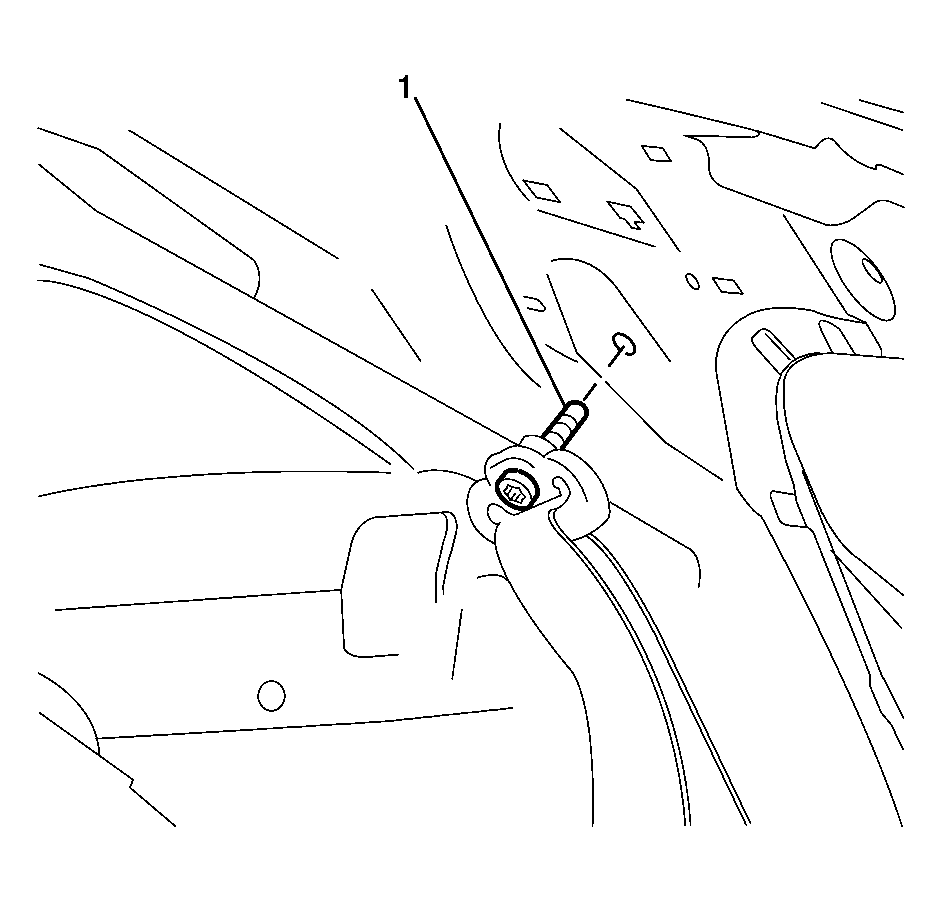

    5. Fig 2: Identifying Rear Seat Belt Guide Assembly To Body Retaining Bolt
    GM1959882Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear seat belt guide assembly to body retaining bolt (1).

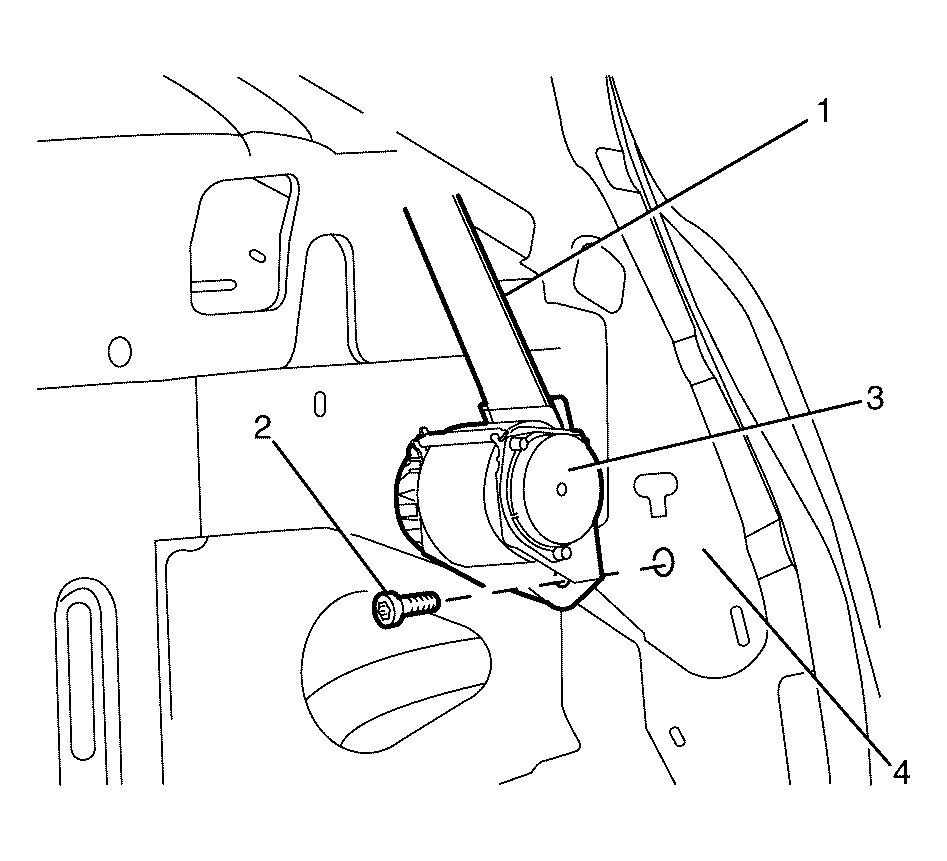

    6. Fig 3: View Of Rear Seat Belt Assembly
    GM2039780Courtesy of GENERAL MOTORS CORP.
    NOTE: Lift and tilt the seat belt retractor (3) approximately 30 degrees to detach the seat belt retractor from the body slot (4).
  6. Remove the rear seat belt retractor to body retaining bolt (2).
  7. Remove the rear seat belt assembly (1) from the vehicle.
