Removal Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the battery negative cable from the battery. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the upper and lower steering column trim covers. Refer to Steering Column Trim Cover Replacement .

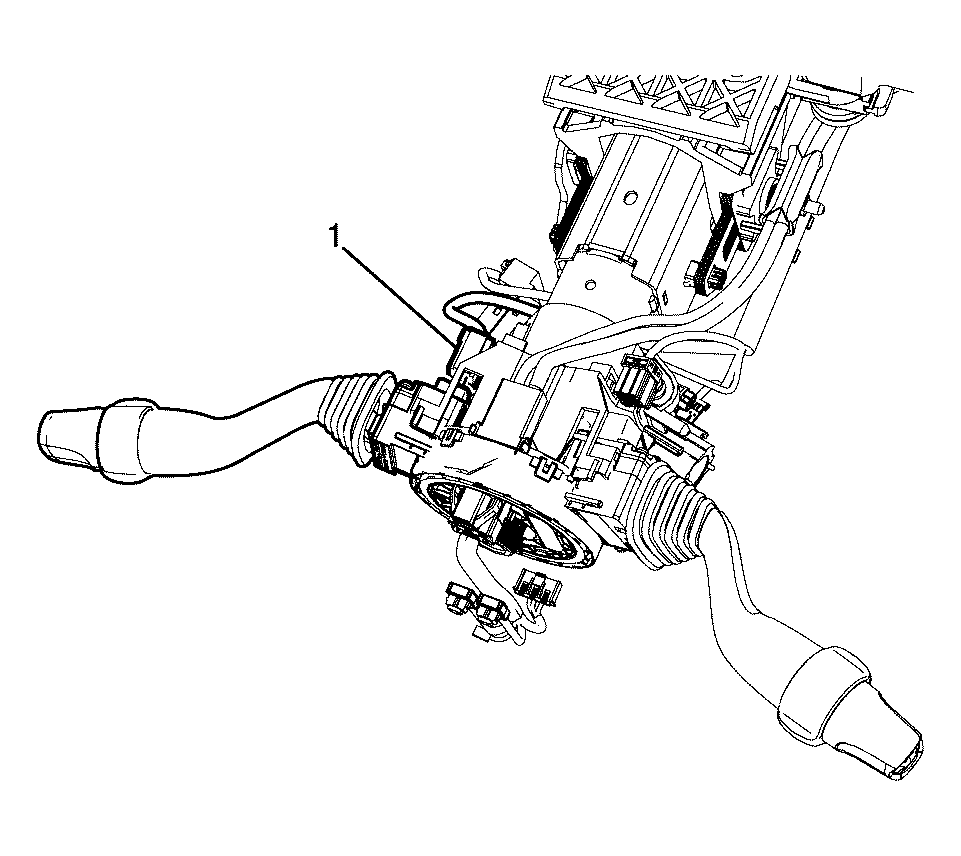

    3. Fig 1: Identifying Turn Signal Switch Electrical Connector
    GM2041140Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the turn signal switch electrical connector (1).

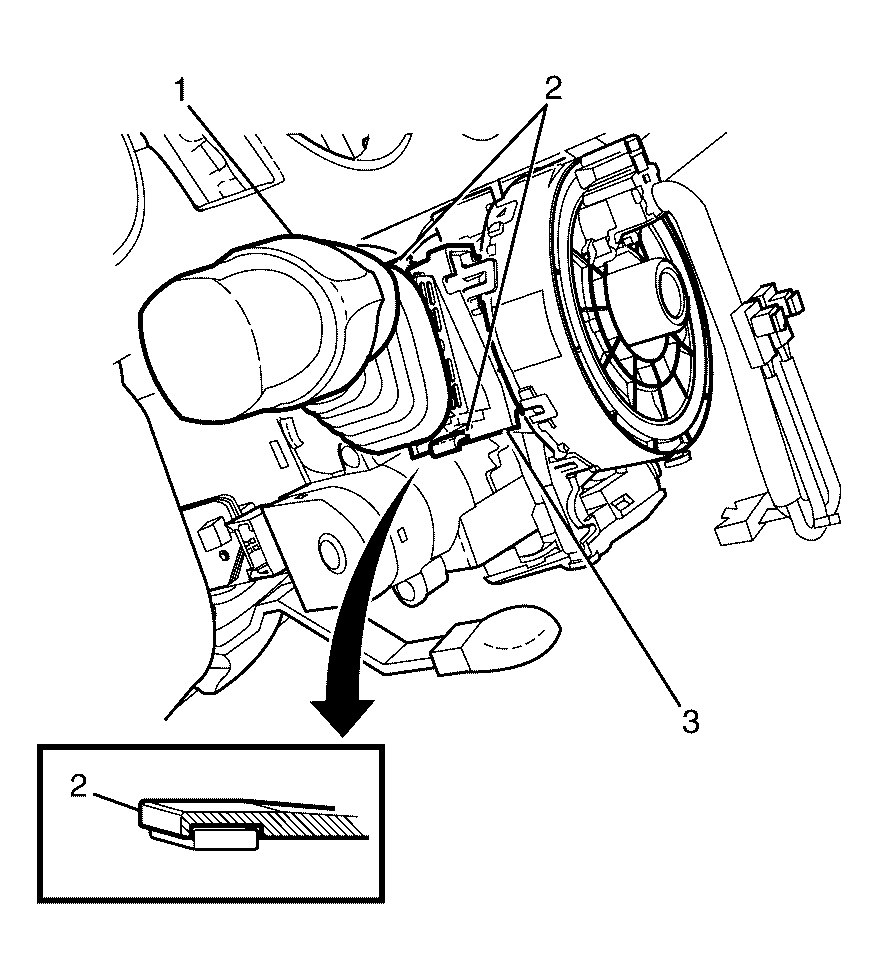

    4. Fig 2: Identifying Turn Signal Switch Retaining Tabs
    GM2041141Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Press the retaining tabs (2) on the turn signal switch (1) and pull the turn signal switch assembly away from the steering column (3).
  4. Remove the turn signal switch assembly from the steering column (3).
