Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

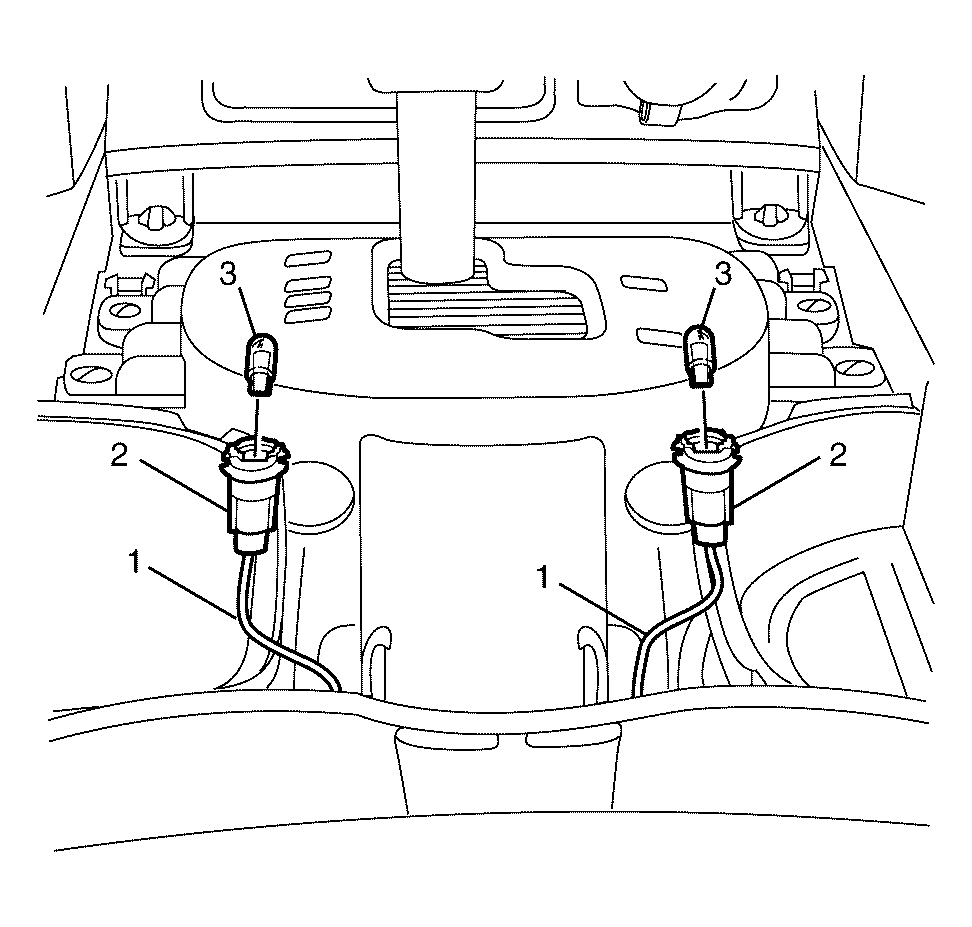

    Fig 1: Identifying Transmission Floor Shift Control Indicator LED & Socket
    GM2040631Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Make sure that the polarity of the transmission floor shift control indicator LED (3) corresponds to the transmission floor shift control wiring harness (1).
    IMPORTANT: Push the transmission floor shift control indicator LED (3) into the transmission floor shift control indicator LED socket (2).
  1. Install the transmission floor shift control indicator LED (3) to the transmission floor shift control indicator LED socket (2).

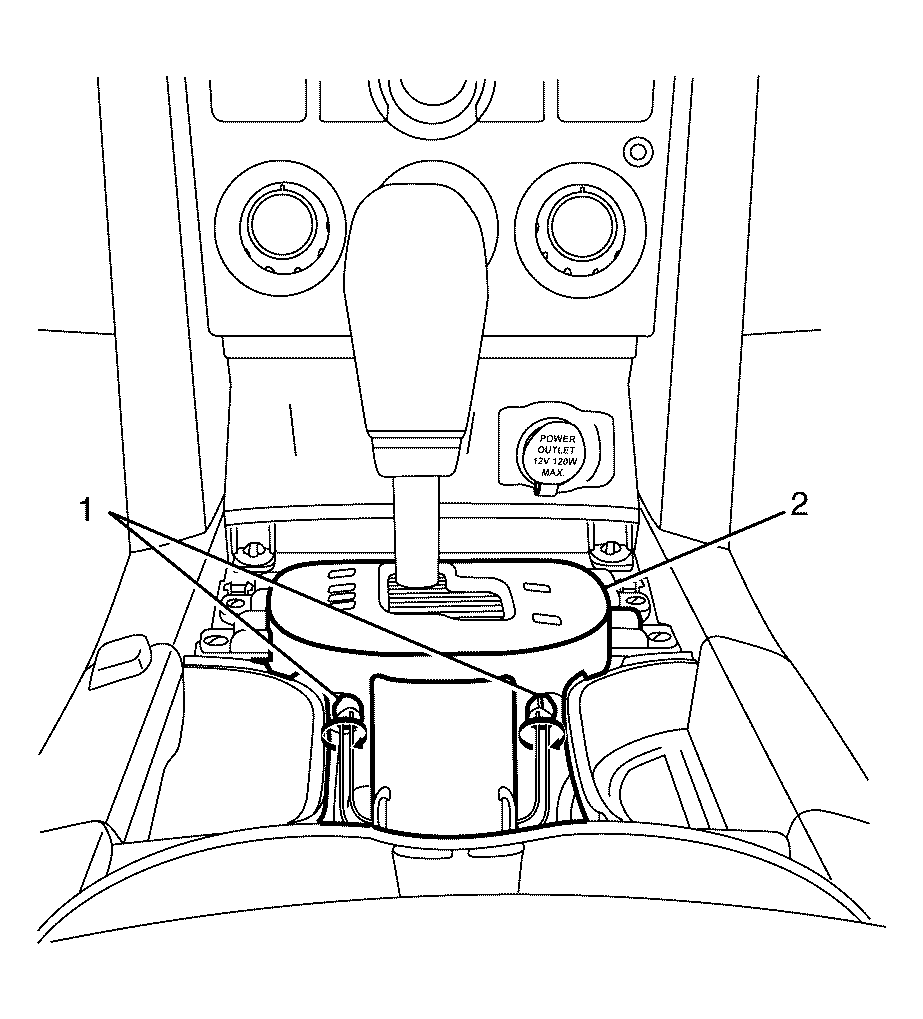

    2. Fig 2: Identifying Transmission Floor Shift Control Housing & Indicator LED Socket
    GM2040635Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Rotate the transmission floor shift control indicator LED socket (1) clockwise to install.
    IMPORTANT: In order to maintain uniform illumination at the transmission floor shift control indicator, always replace both transmission floor shift control indicator LEDs.
  2. Install the transmission floor shift control indicator LED socket (1) to the transmission floor shift control housing (2).
  3. Install the trim plate panel. Refer to Console Trim Plate Replacement .
  4. Check the operation of the transmission floor shift illumination.
