Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Dome Lamp Bulb & Socket

Courtesy of GENERAL MOTORS CORP.

Install a new dome lamp bulb (1) to the dome lamp bulb socket (2).

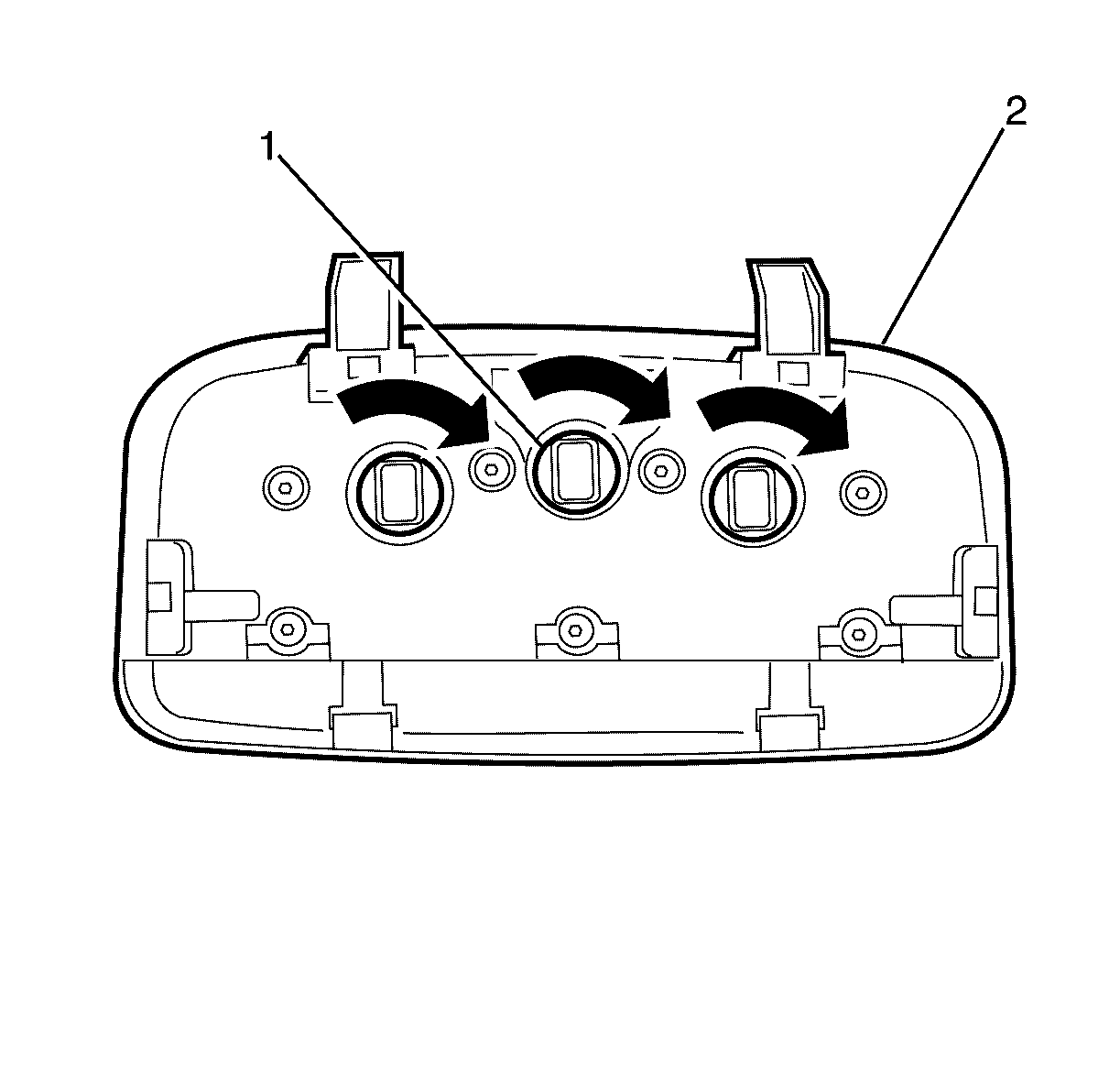

Fig 2: Identifying Dome Lamp Assembly & Bulb Socket

Courtesy of GENERAL MOTORS CORP.

Install the dome lamp bulb socket (1) into the dome lamp assembly (2) and twist the dome lamp bulb socket clockwise to secure.
Install the rear dome lamp assembly. Refer to Dome Lamp Replacement .
Connect the battery ground cable. Refer to Battery Negative Cable Disconnection and Connection .
Test the rear dome lamp for correct operation.
