Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

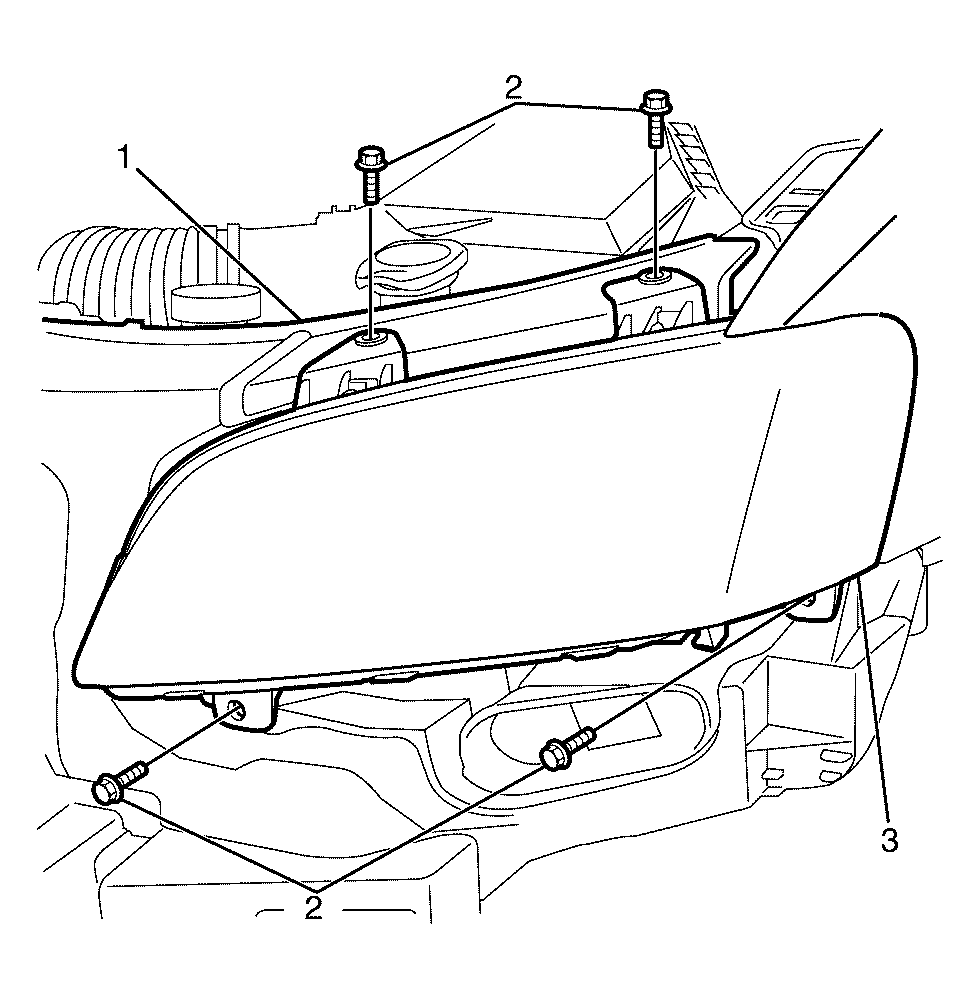

    Fig 1: Identifying Headlamp Assembly To Front End Module Retaining Bolts
    GM2041081Courtesy of GENERAL MOTORS CORP.
  1. Install the headlamp assembly (3) to the front end module (1).
    2. NOTE: Refer to Fastener Notice .
  2. Install the headlamp assembly to front end module retaining bolts (2).

    Tighten:  Tighten the bolts to 4 N.m (35 lb in).

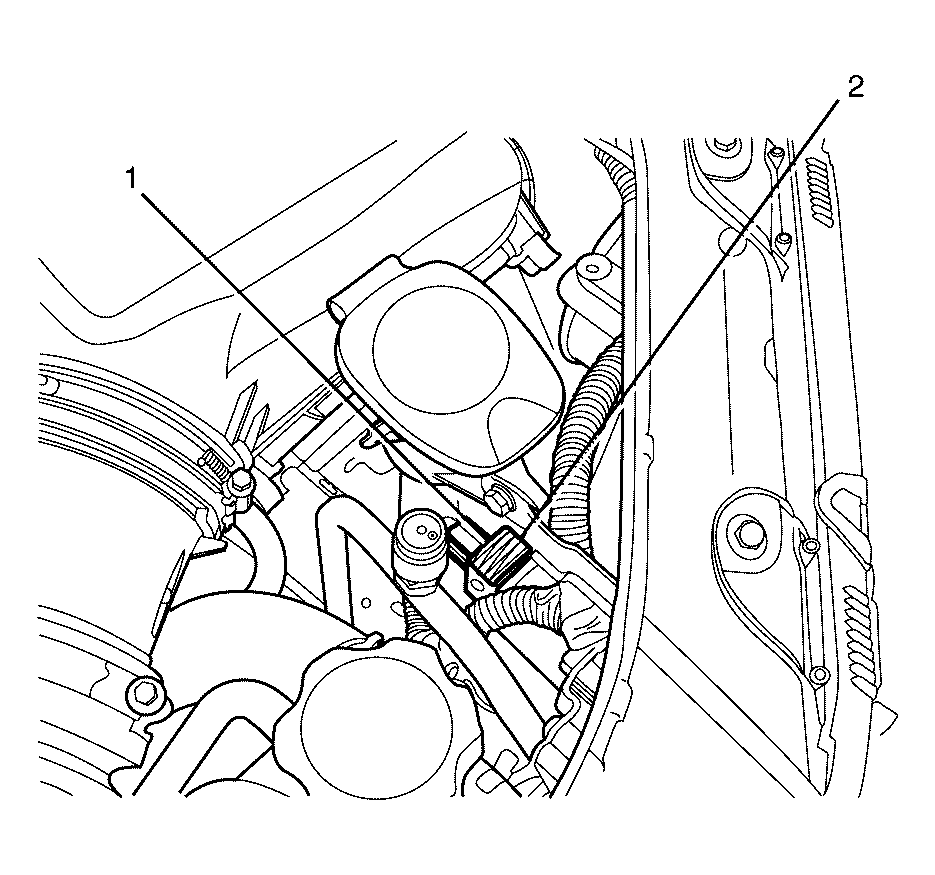

    3. Fig 2: Identifying Headlamp Assembly Electrical Connector & Locking Tab
    GM2032729Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Make sure the headlamp assembly electrical connector locking tab (2) is correctly engaged. Failure to do so may cause an inoperative headlamp assembly or intermittent condition.
  3. Connect the headlamp assembly electrical connector (1).

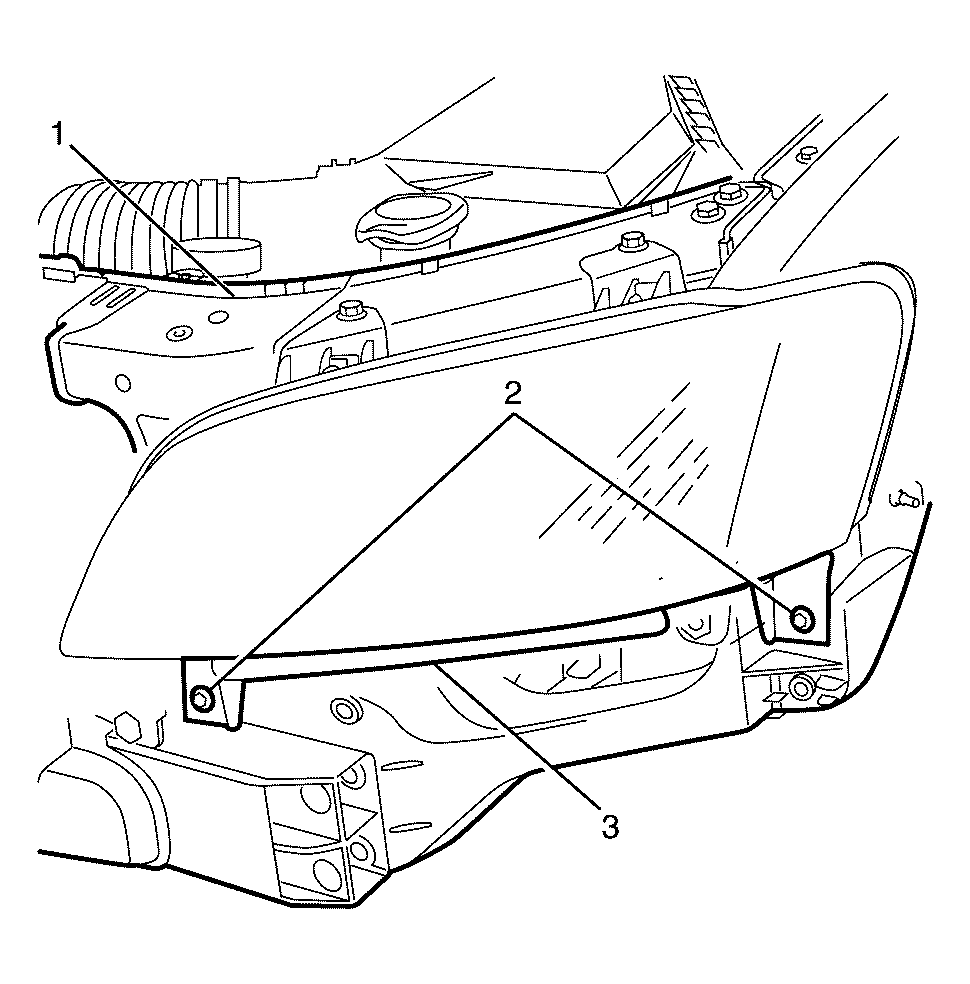

    4. Fig 3: Identifying Headlamp Assembly To Front End Module Retaining Bolts
    GM2032730Courtesy of GENERAL MOTORS CORP.
  4. Install the headlamp bracket (3) to the front end module (1).
  5. Install the headlamp assembly to front end module retaining bolts (2).

    Tighten:  Tighten the bolts to 4 N.m (35 lb in).

  6. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  7. Install the radiator air baffle and deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement .
  8. Connect the battery ground cable. Refer to Battery Negative Cable Disconnection and Connection .
  9. Check all vehicle lights for correct operation.
  10. Adjust the headlamps. Refer to Headlamp Aiming .
