Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

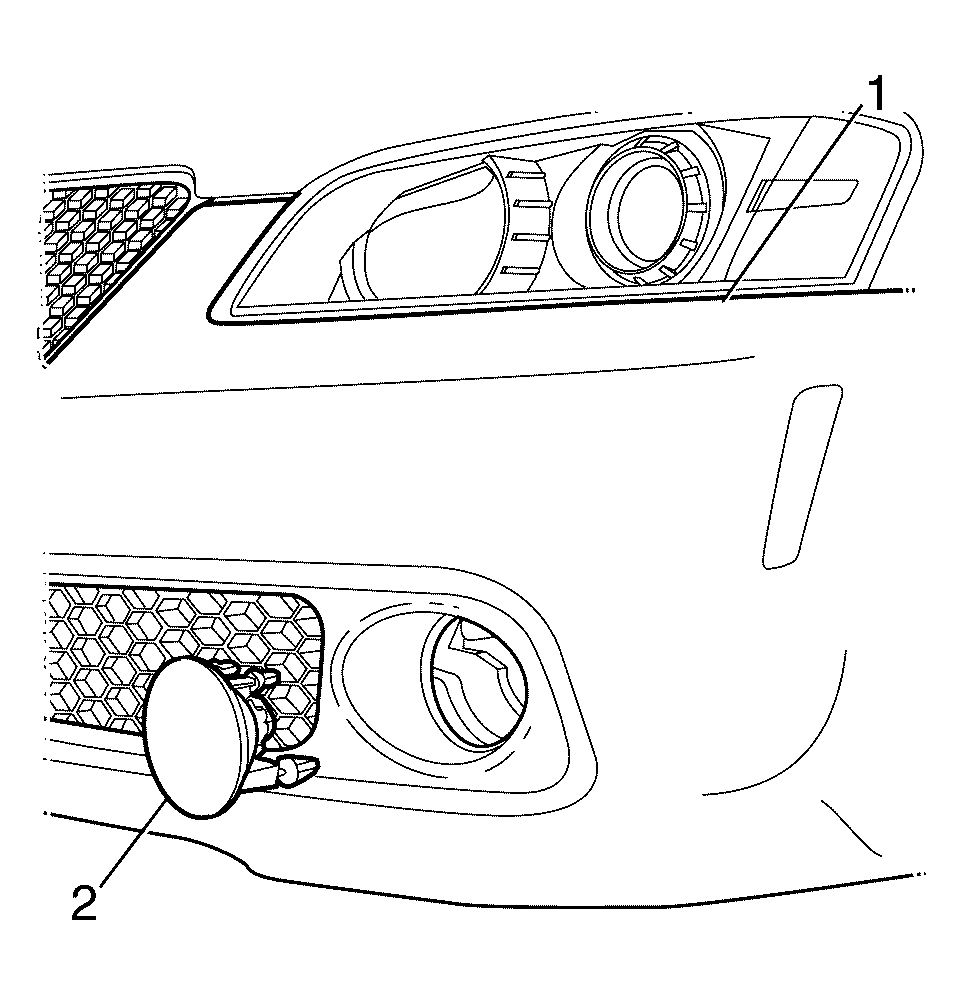

    Fig 1: Identifying Front Fog Lamp Assembly & Front Fascia
    GM2040591Courtesy of GENERAL MOTORS CORP.
  1. Install the front fog lamp assembly (2) to the front fascia (1).

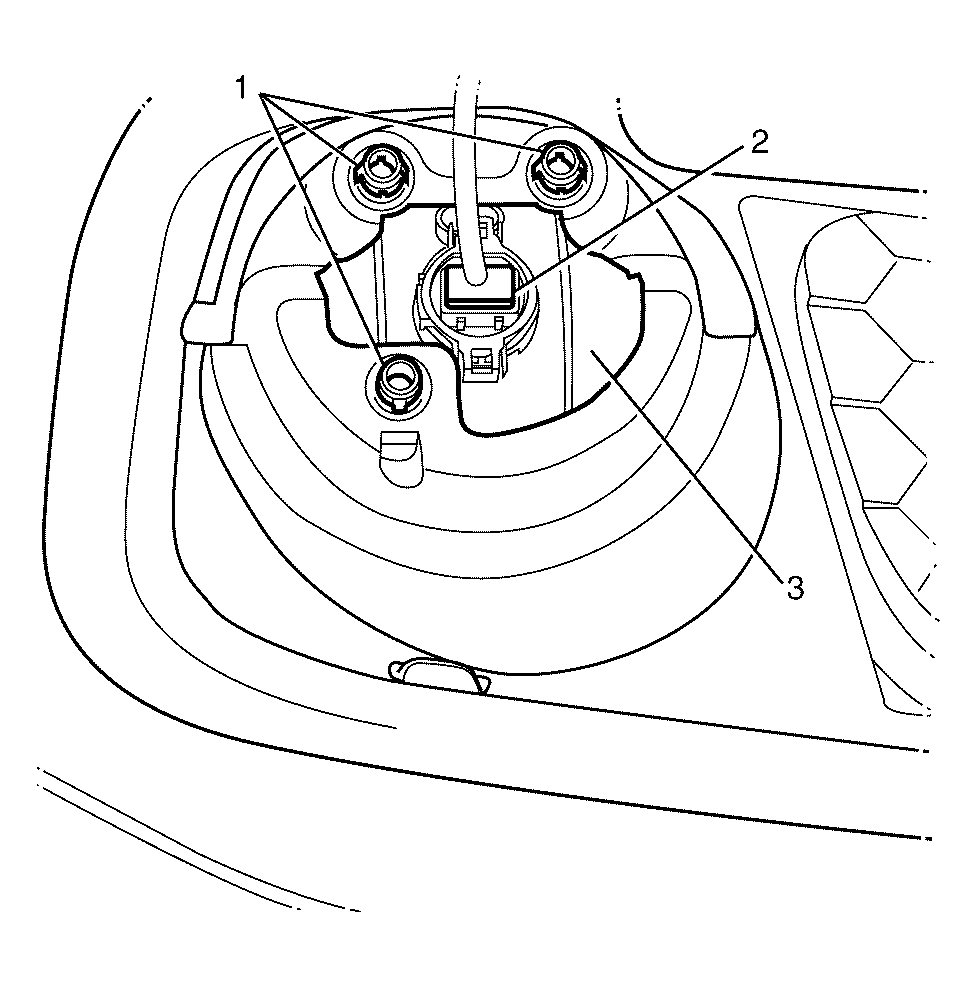

    2. Fig 2: Identifying Front Fog Lamp Assembly To Front Fascia Retaining Clips
    GM2040590Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Push the front fog lamp assembly (3) rearwards to engage the front fog lamp assembly to front fascia retaining clips (1). Listen for an audible click to confirm fitting.
  2. Attach the front fog lamp assembly to front fascia retaining clips (1).
  3. Connect the front fog lamp assembly electrical connector (2).
  4. Install the air deflector to the front end of the vehicle. Refer to Front Air Deflector Replacement .
  5. Lower the vehicle.
    6. CAUTION: Refer to Battery Disconnect Caution .
  6. Connect the battery ground cable. Refer to Battery Negative Cable Disconnection and Connection .
  7. Aim the fog lamps. Refer to Fog Lamp Aiming .
