Outside Rearview Mirror Folding Motor - Driver

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

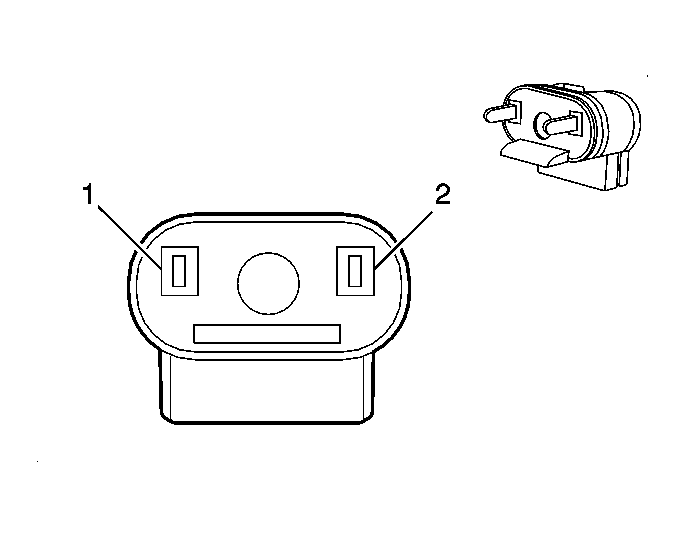

Fig 1: Outside Rearview Mirror Folding Motor - Driver Connector End View
GM2369042Courtesy of GENERAL MOTORS COMPANY
Outside Rearview Mirror Folding Motor - Driver

Pin Wire Circuit Function
1 0.35 BK 191 Outside Rearview Mirror Retract
2 0.35 BK 190 Outside Rearview Mirror Extend
Connector Part Information
  • Harness Type: Outside Rearview Mirror
  • OEM Connector: Pending
  • Service Connector: Service by Assembly- See Part Catalog
  • Description: 2 - Way M (GY)
Terminal Part Information
  • Terminal/Tray: Service by Assembly- See Part Catalog
  • Core/Insulation Crimp: Service by Assembly- See Part Catalog
  • Release Tool/Test Probe: Service by Assembly- See Part Catalog
