Inflatable Restraint Side Impact Module - Right

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

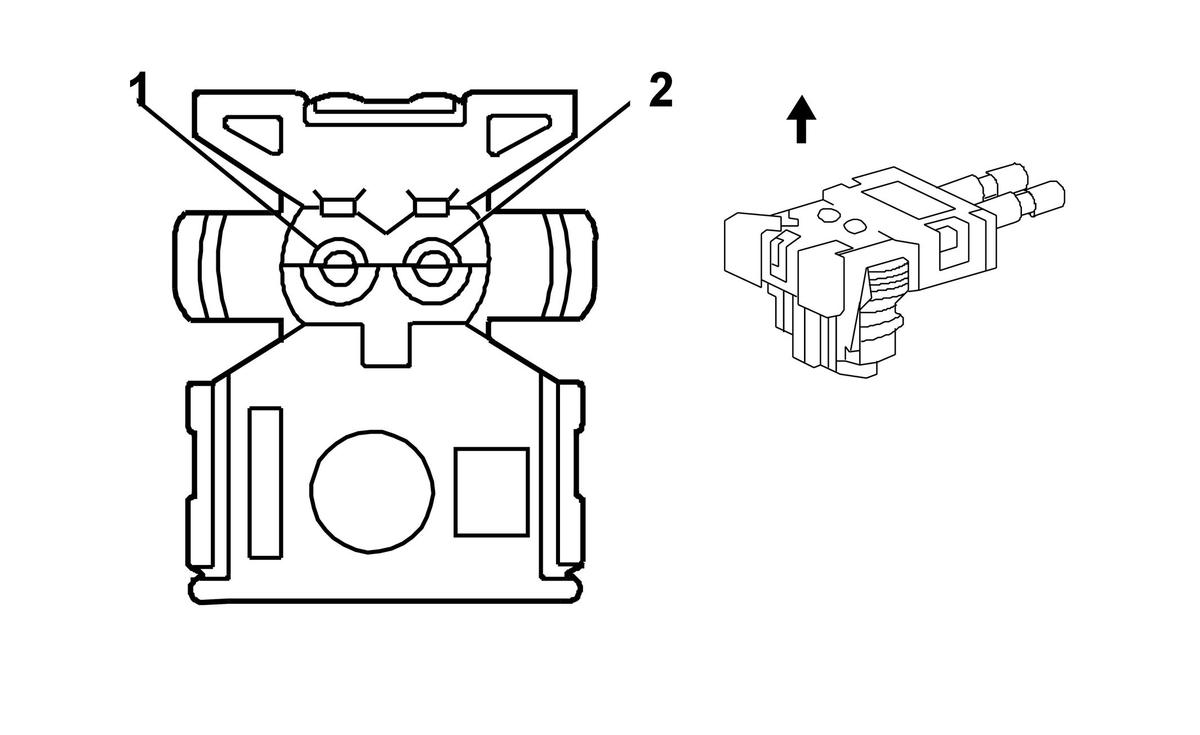

Fig 1: Inflatable Restraint Side Impact Module - Right Connector End View
GM878490Courtesy of GENERAL MOTORS COMPANY
Inflatable Restraint Side Impact Module - Right

Pin Wire Circuit Function
1 0.5 YE/GY 6969 Side Impact Module- Right Front- Low Control
2 0.5 L-BU/BK 6970 Side Impact Module- Right Front- High Control
Connector Part Information
  • Harness Type: Right Front Seat
  • OEM Connector: 252922343
  • Service Connector: 88988428
  • Description: 2-Way F (YE)
Terminal Part Information
  • Terminated Lead: Service by Harness- See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
