Heated Seat Switch - Right Rear (KA6)

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

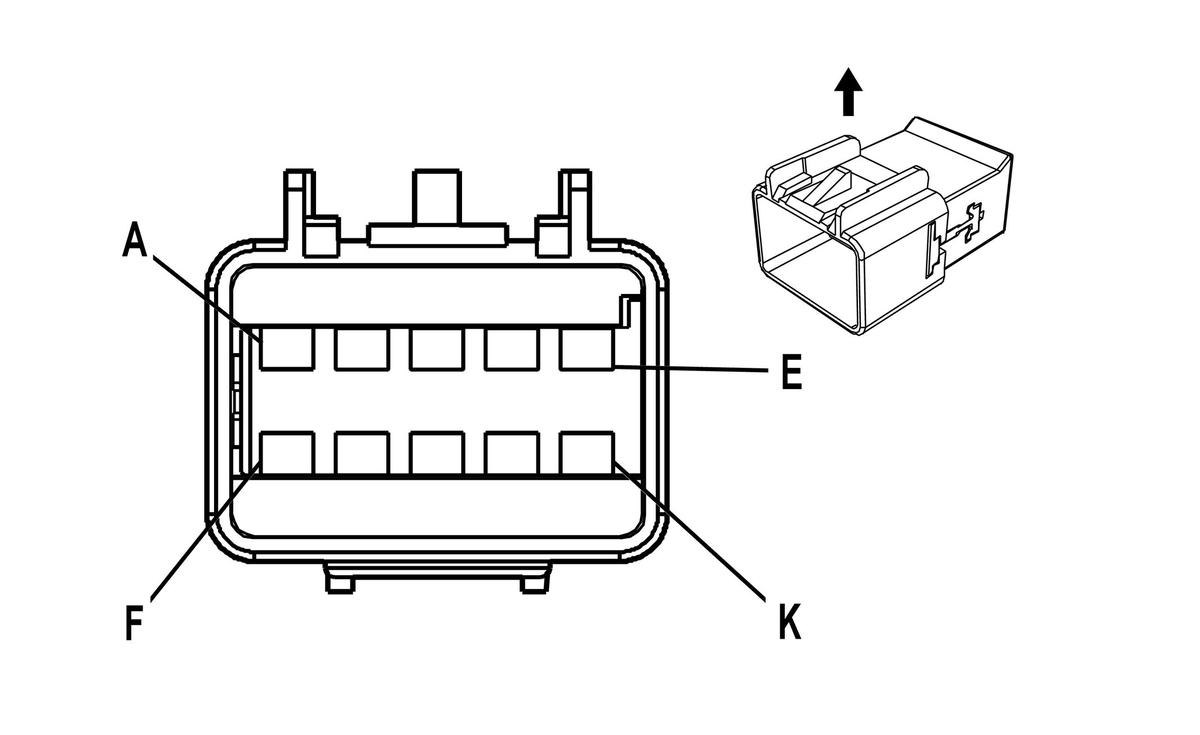

Fig 1: Heated Seat Switch - Right Rear (KA6) Connector End View
GM646388Courtesy of GENERAL MOTORS COMPANY
Heated Seat Switch - Right Rear (KA6)

Pin Wire Circuit Function
A 0.35 PK/BK 6595 Right Rear Heated Seat Back Only Mode Switch Signal
B 0.35 L-BU/BN 6589 Right Rear Heated Seat Back Only Mode Indicator Control
C 0.35 PK/YE 1631 Heated Seat Low Indicator Control
D 0.35 BN/WH 6585 Heated Seat Medium Indicator Control
E 0.35 TN/WH 1638 Heated Seat High Indicator Control
F 0.35 GY 8 Instrument Panel Lamp Supply Voltage
G 0.35 PU/WH 6597 Right Rear Heated Seat Back Cushion Switch Signal
H 0.35 L-GN 6591 Right Rear Heated Seat Heat Back Cushion Indicator Control
J 0.35 BK 750 Ground
K 0.35 PU 1382 LED Dimming Signal
Connector Part Information
  • Harness Type: Right Rear Door Trim
  • OEM Connector: 15332158
  • Service Connector: 19153745
  • Description: 10-Way M GT 150 Series (BK)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-3 (GY)
  • Terminal/Tray: 15304702/19
  • Core/Insulation Crimp: E/C
