Headlamp High/Low Beam Solenoid - Right

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

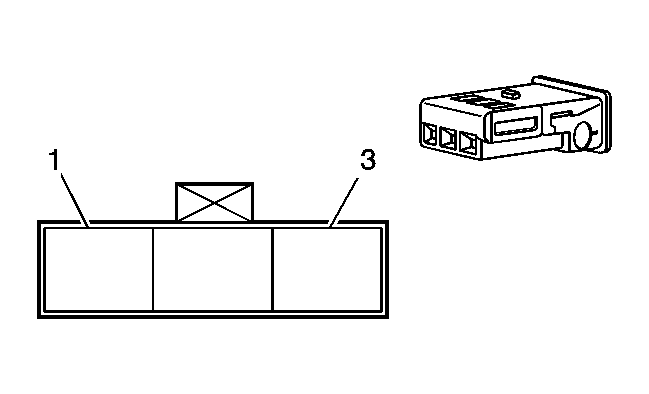

Fig 1: Headlamp High/Low Beam Solenoid - Right Connector End View
GM1661439Courtesy of GENERAL MOTORS COMPANY
Headlamp High/Low Beam Solenoid - Right

Pin Wire Circuit Function
1 0.5 D-GN/WH 311 Right Headlamp High Beam Supply Voltage
2 - - Not Used
3 0.35 BK/PU - Headlamp Ballast
Connector Part Information
  • Harness Type: Headlamp
  • OEM Connector: 968705
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 3-Way F AMP (GN)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
