Engine Oil Pressure (EOP) Switch

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

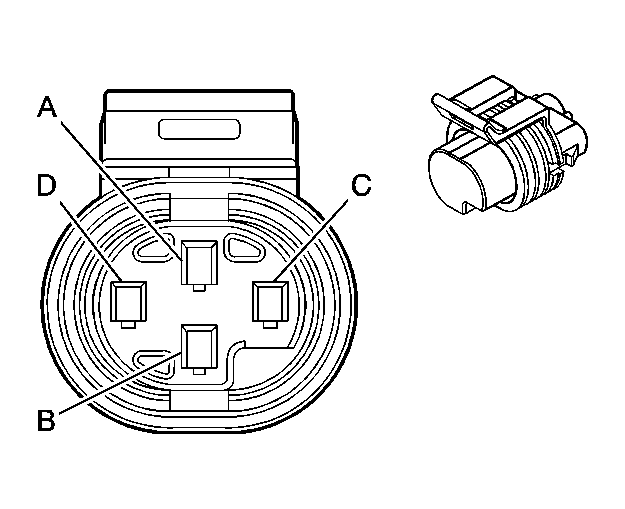

Fig 1: Engine Oil Pressure (EOP) Switch Connector End View
GM1664567Courtesy of GENERAL MOTORS COMPANY
Engine Oil Pressure (EOP) Switch

Pin Wire Circuit Function
A 0.5 YE/D-GN 231 Oil Pressure Switch Signal
B 0.5 BK/WH 1551 Ground
C-D - - Not Used
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 12065298
  • Service Connector: 12085539
  • Description: 4-Way F Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminated Lead: 13575419
  • Release Tool: J-38125-12A
  • Diagnostic Test Probe: J-35616-14 (GN)
  • Terminal/Tray: 12048074/2
  • Core/Insulation Crimp: E/1
