Component Connector End Views: Clock

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

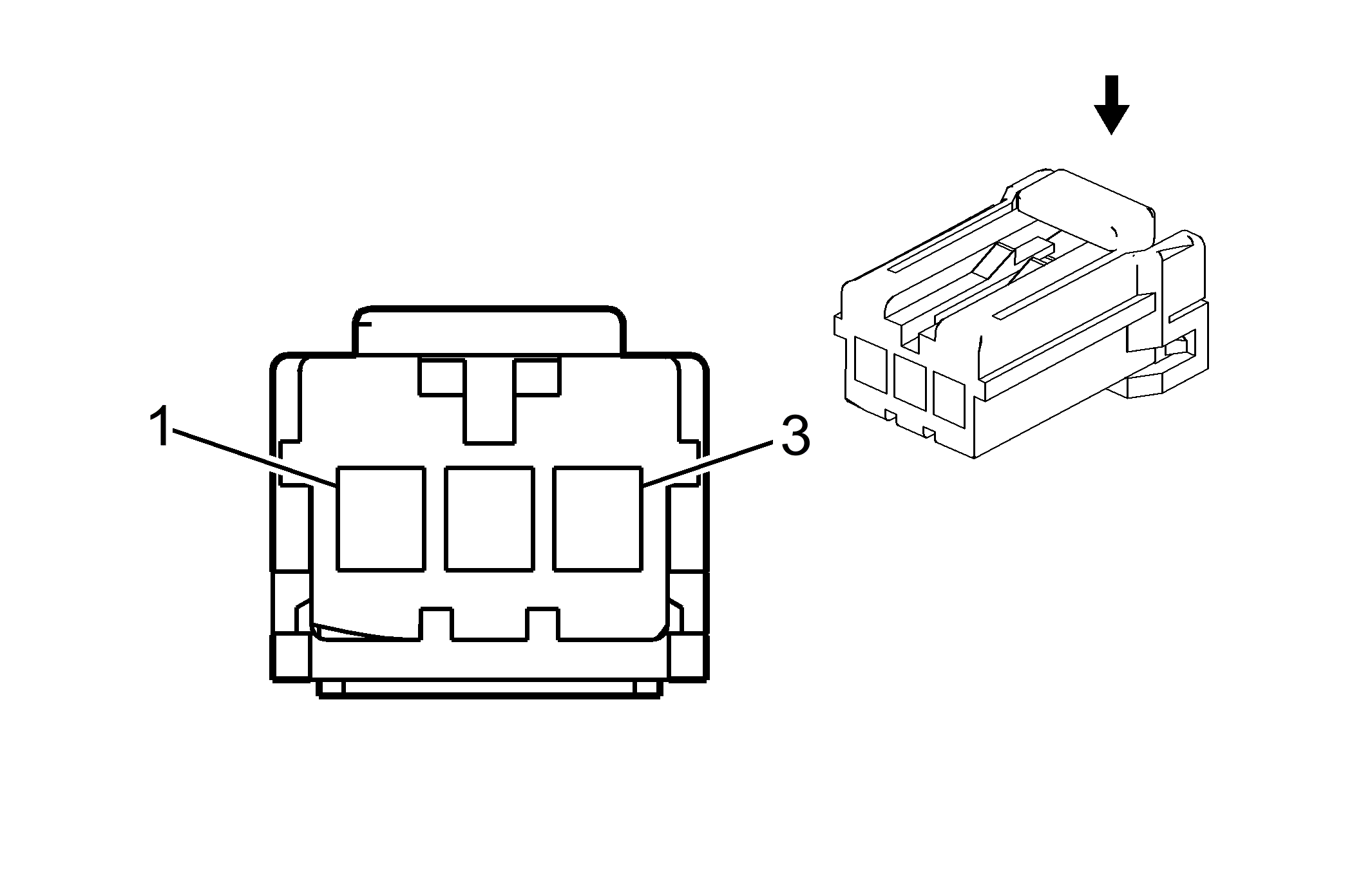

Fig 1: Clock Connector End View
GM1664516Courtesy of GENERAL MOTORS COMPANY
Clock

Pin Wire Circuit Function
1 0.35 OG/PK 1840 Battery Positive Voltage
2 0.35 BK 450 Ground
3 0.35 YE 1491 Backlight Lamp Control
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 174921-1
  • Service Connector: 88953272
  • Description: 3-Way F Multilock 070 Series (BK)
Terminal Part Information
  • Terminated Lead: 13575801
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-33 (YE)
  • Terminal/Tray: 173630-7/7
  • Core/Insulation Crimp: E/4
