Blower Motor
WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

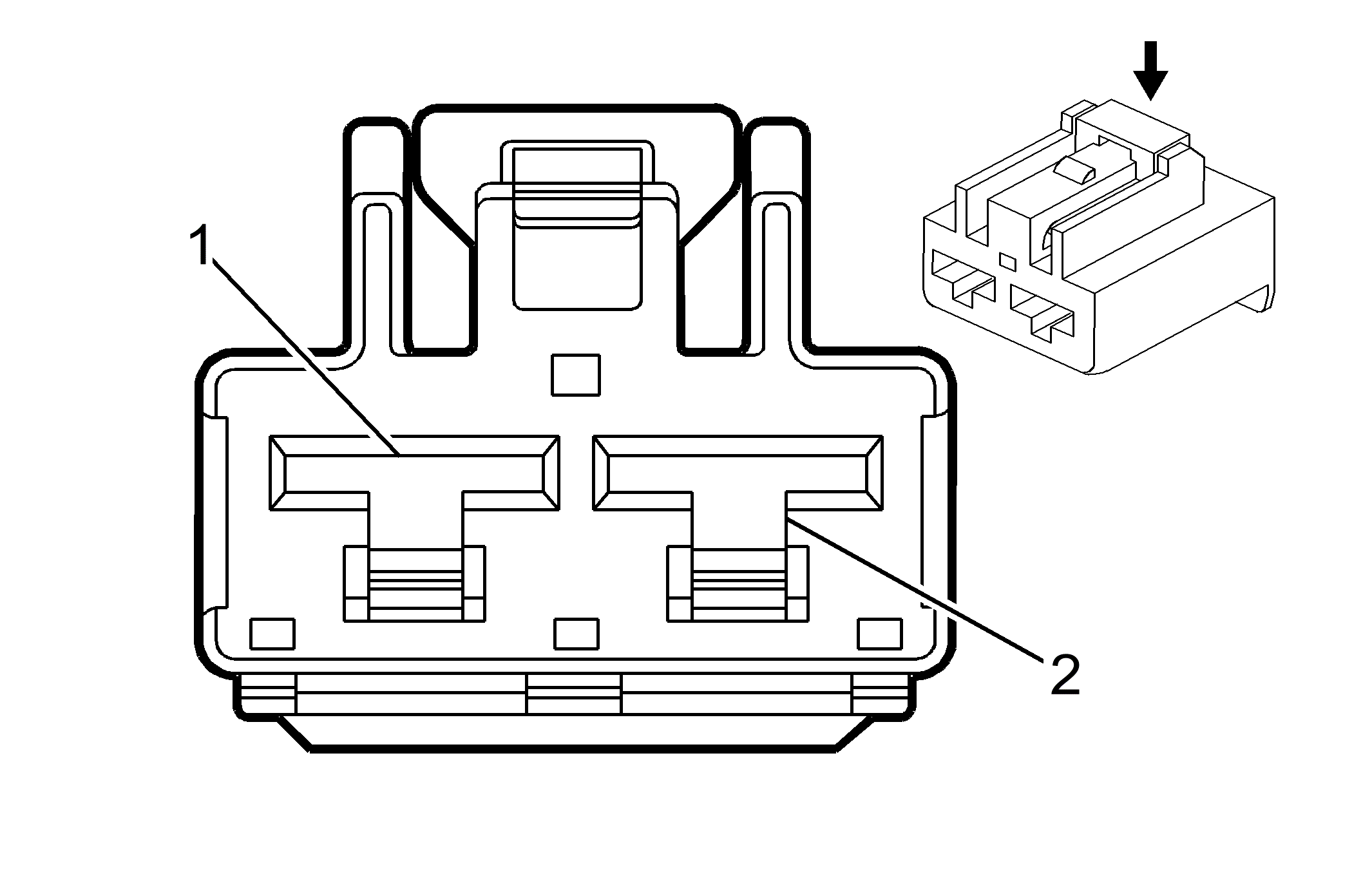

Blower Motor
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 5 PU | 65 | Blower Motor Supply Voltage (CJ2) |
| 5 RD/BK | 442 | Battery Positive Voltage (CJ4) | |
| 2 | 5 BK/RD | 5987 | Front Blower Motor Low Reference |
Connector Part Information
|
Terminal Part Information
|
