Blower Motor Control Module - Auxiliary (CJ4)

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

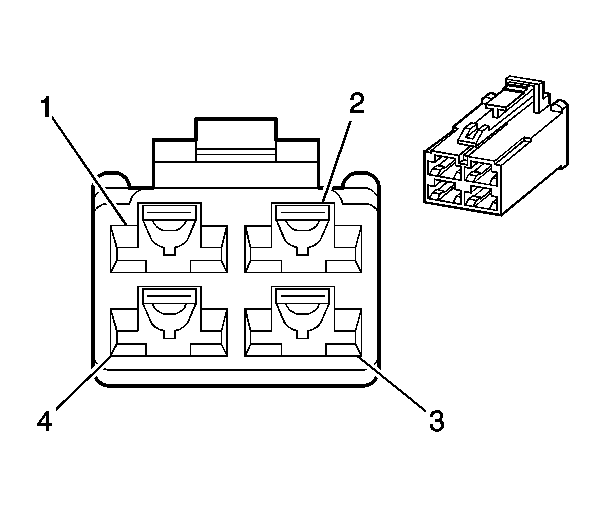

Fig 1: Blower Motor Control Module - Auxiliary (CJ4) Connector End View
GM1664492Courtesy of GENERAL MOTORS COMPANY
Blower Motor Control Module - Auxiliary (CJ4)

Pin Wire Circuit Function
1 0.35 D-GN 2211 Rear Blower Motor Speed Control
2 0.35 BK 450 Ground
3 0.35 OG 761 Blower Speed Feed Back Signal
4 0.35 OG/RD 5988 Low Reference
Connector Part Information
  • Harness Type: HVAC
  • OEM Connector: 6070-4612
  • Service Connector: Service by Harness- See Part Catalog
  • Description: 4-Way F 6.3 Series (BK)
Terminal Part Information
  • Terminated Lead: Service by Harness- See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
