Blower Motor Control Module (CJ4)

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

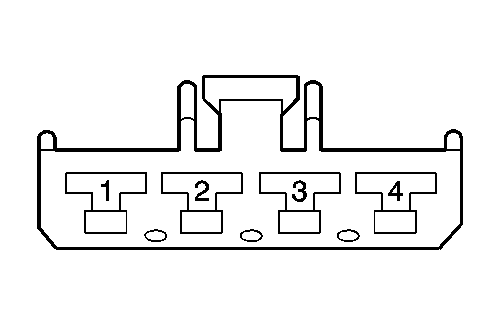

Fig 1: Blower Motor Control Module (CJ4) Connector End View
GM1331457Courtesy of GENERAL MOTORS COMPANY
Blower Motor Control Module (CJ4)

Pin Wire Circuit Function
1 5 BK 450 Ground
2 0.35 GY/GN 754 Blower Motor Speed Control
3 5 RD/BK 442 Battery Positive Voltage
4 5 BK/RD 5987 Front Blower Motor Low Reference
Connector Part Information
  • Harness Type: HVAC
  • OEM Connector: 6098-1449
  • Service Connector: 88988396
  • Description: 4-Way F (BK)
Terminal Part Information
  • Terminated Lead: Service by Harness- See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
