Ashtray Lamp (AV8)

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

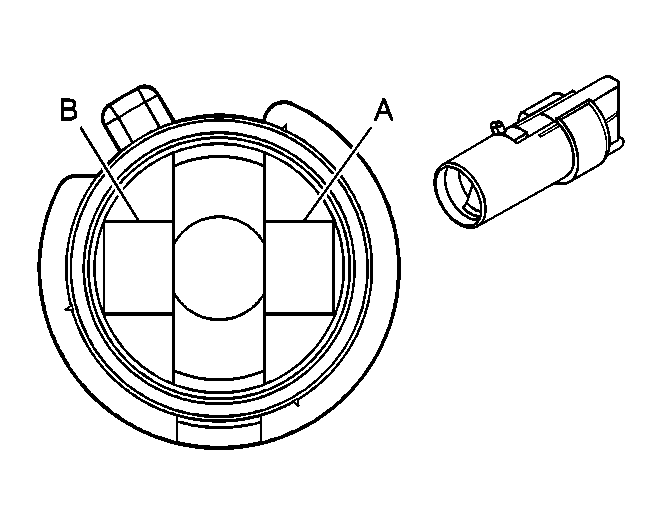

Fig 1: Ashtray Lamp (AV8) Connector End View
GM38556Courtesy of GENERAL MOTORS COMPANY
Ashtray Lamp (AV8)

Pin Wire Circuit Function
A 0.35 GY 8 Instrument Panel Lamp Supply Voltage
B 0.35 BK 350 Ground
Connector Part Information
  • Harness Type: Ashtray Jumper
  • OEM Connector: 12124722
  • Service Connector: 12125055
  • Description: 2-Way F Lamp Socket Wedge Base W2 (GY)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: Not Available
  • Diagnostic Test Probe: Pending
  • Terminal/Tray: 12124402//A
  • Core/Insulation Crimp: Not Available
