Air Suspension Control Module (ASCM) X2 (F38)

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

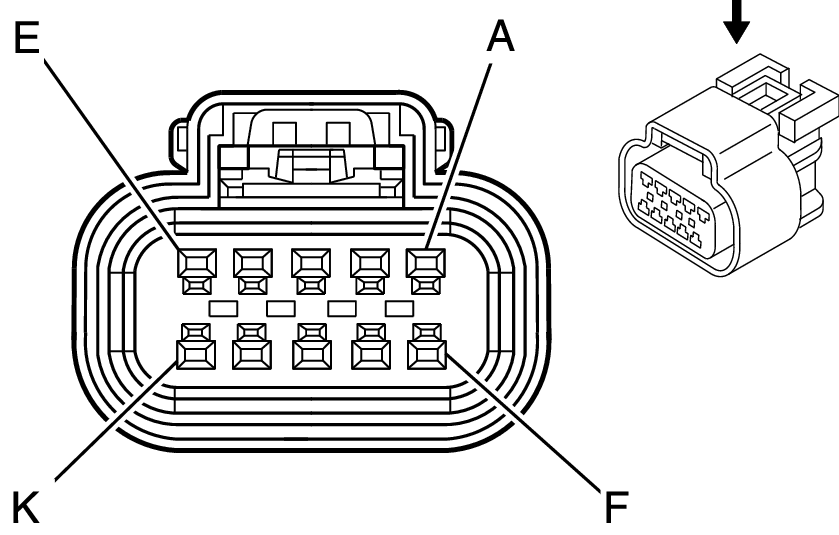

Fig 1: Air Suspension Control Module (ASCM) X2 (F38) Starter Generator X2 (HP7) Connector End View
GM1673480Courtesy of GENERAL MOTORS COMPANY
Air Suspension Control Module (ASCM) X2 (F38)

Pin Wire Circuit Function
A 0.35 OG/BK 1208 Left Rear Strut Position Sensor Voltage Reference
B 0.35 L-GN/WH 1210 Left Rear Strut Position Sensor Signal
C 0.35 L-GN/BK 1209 Left Rear Strut Position Sensor Low Reference
D 0.5 TN 2501 High Speed GMLAN Serial Data Bus-
E 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus +
F 0.35 L-GN/BK 1215 Right Rear Strut Position Sensor Voltage Reference
G 0.35 L-GN/WH 1216 Right Rear Strut Position Sensor Signal
H 0.35 OG/BK 1214 Right Rear Strut Position Sensor Low Reference
J 0.5 TN 2501 High Speed GMLAN Serial Data Bus-
K 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus +
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 15326842
  • Service Connector: 15326843
  • Description: 10-Way F GT 150 Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: No Tool Required
  • Diagnostic Test Probe: No Tool Required
  • Terminal/Tray: 15366021/4
  • Core/Insulation Crimp: Not Available
