A/C Compressor Clutch

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

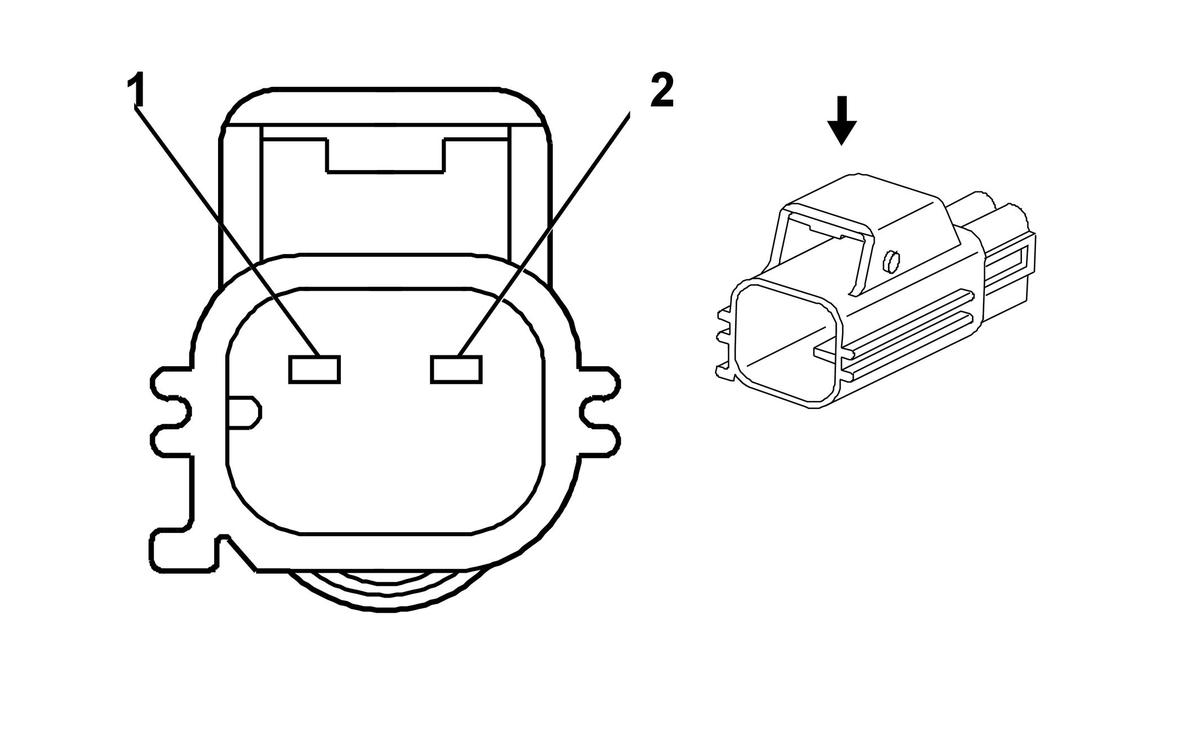

Fig 1: A/C Compressor Clutch Connector End View
GM897985Courtesy of GENERAL MOTORS COMPANY
A/C Compressor Clutch

Pin Wire Circuit Function
1 0.5 GN 59 A/C Compressor Clutch Supply Voltage
2 0.5 BK 1150 Ground
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 7282-5548-30
  • Service Connector: 88953303
  • Description: 2-Way M YESC Weather Pack Series (BK)
Terminal Part Information
  • Terminated Lead: 13578890
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-3 (GY)
  • Terminal/Tray: 7114-4102-08/9
  • Core/Insulation Crimp: E/1
