Window Switch - Left Rear Door

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

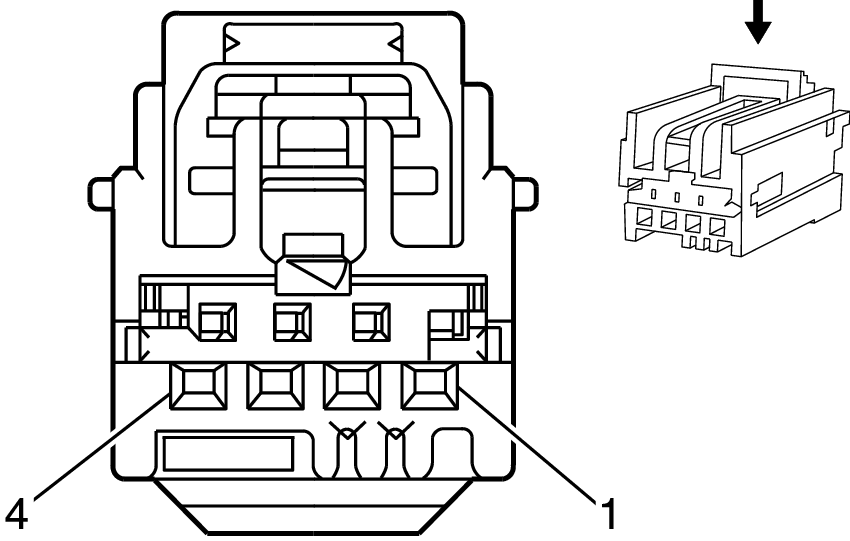

Fig 1: Window Switch - Left Rear Door Connector End View
GM1664594Courtesy of GENERAL MOTORS COMPANY
Window Switch - Left Rear Door

Pin Wire Circuit Function
1 0.35 BK 750 Ground
2 0.35 GY 8 Instrument Panel Lamp Supply Voltage
3 0.35 PK 5864 Power Window Driver Switch Voltage Reference
4 0.35 BN/YE 6710 Power Window Switch Left Rear Signal
Connector Part Information
  • Harness Type: Left Rear Door Trim
  • OEM Connector: 7283-9016-30
  • Service Connector: 19149305
  • Description: 4-Way F (BK)
Terminal Part Information
  • Terminated Lead: 13575845
  • Release Tool: J-38125-215A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: SAIT-A03T-M064/14
  • Core/Insulation Crimp: P/P
