Seat Lumbar Motor Position Sensor - Front Passenger (without A45)

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

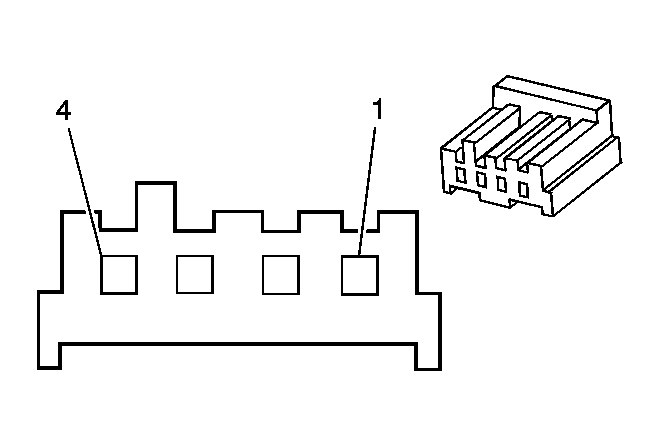

Fig 1: Seat Lumbar Motor Position Sensor - Front Passenger (without A45) Connector End View

Courtesy of GENERAL MOTORS COMPANY

Pin	Wire	Circuit	Function
1	0.35 BN	-	Passenger Seat Lumbar Up Switch Signal
2	0.35 RD	-	Passenger Seat Lumbar Down Switch Signal
3	-	-	Not Used
4	0.35 L-BU	-	Passenger Seat Lumbar Motor Forward Control

Connector Part Information

Harness Type: Right Front Seat
OEM Connector: See Catalog
Service Connector: Service by Harness - See Part Catalog
Description: 4-Way F (WH)

Terminal Part Information

Terminated Lead: Service by Harness - See Part Catalog
Release Tool: Not Available
Diagnostic Test Probe: Not Available
Terminal/Tray: Not Available
Core/Insulation Crimp: Not Available
