Seat Cushion Ventilation Heat and Cool Module - Front Passenger (KB6)

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

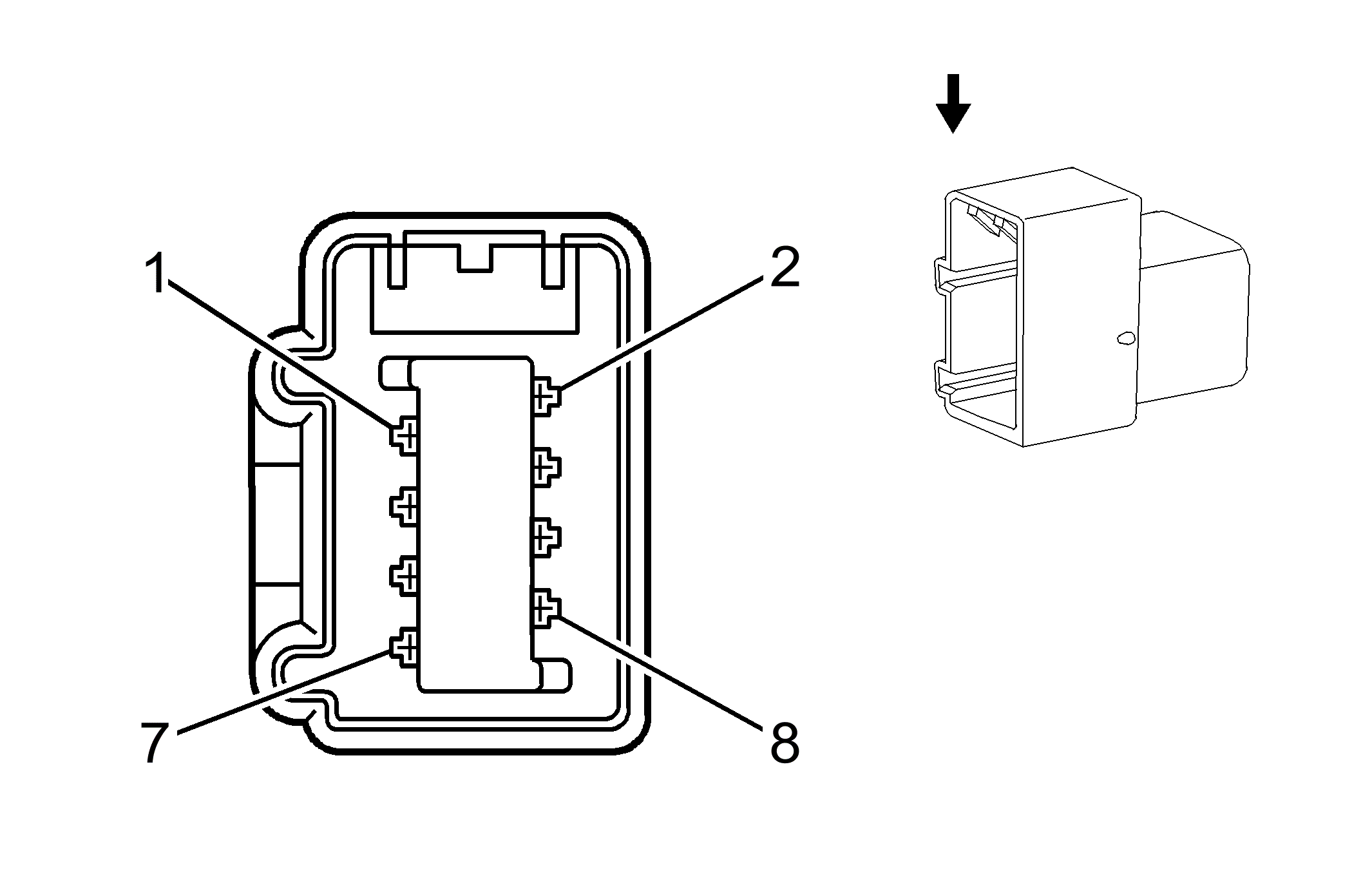

Fig 1: Seat Cushion Ventilation Heat and Cool Module - Front Passenger (KB6) Connector End View

Courtesy of GENERAL MOTORS COMPANY

Pin	Wire	Circuit	Function
1	1 L-GN/WH	6227	Passenger Seat Cushion Heated/Cool Ventilation Module Heat Control
2	0.5 D-BU/WH	6222	Passenger Seat Blower Supply Voltage
3	1 L-GN/OG	6228	Passenger Seat Cushion Heated/Cool Ventilation Module Cool Control
4	0.5 TN/PK	6446	Passenger Seat Blower Low Reference
5	0.35 GY	2434	Passenger Seat Cushion Temperature Sensor Signal
6	-	-	Not Used
7	0.35 PU	6229	Passenger Seat Cushion Blower Speed Control
8	0.35 PK	2435	Passenger Seat Cushion Temperature Low Reference

Connector Part Information

Harness Type: Right Front Seat
OEM Connector: E3578-003
Service Connector: Service by Harness - See Part Catalog
Description: 8-Way M (BK)

Terminal Part Information

Pins: 1, 3
Terminated Lead: 13575818
Release Tool: J-38125-553
Diagnostic Test Probe: J-35616-3 (GY)
Terminal/Tray: 7114-4101-08/9
Core/Insulation Crimp: C/A

Pins: 2, 4-8
Terminated Lead: 13575818
Release Tool: J-38125-553
Diagnostic Test Probe: J-35616-3 (GY)
Terminal/Tray: 7114-4100-08/9
Core/Insulation Crimp: E/C
