Section 473 (Cellular System, Entertainment System, And Navigation System)
>>
Wiring Schematics
>>
Video System Wiring Schematics
>>
Dual DVD Headrest System
Dual DVD Headrest System
WARNING:
This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

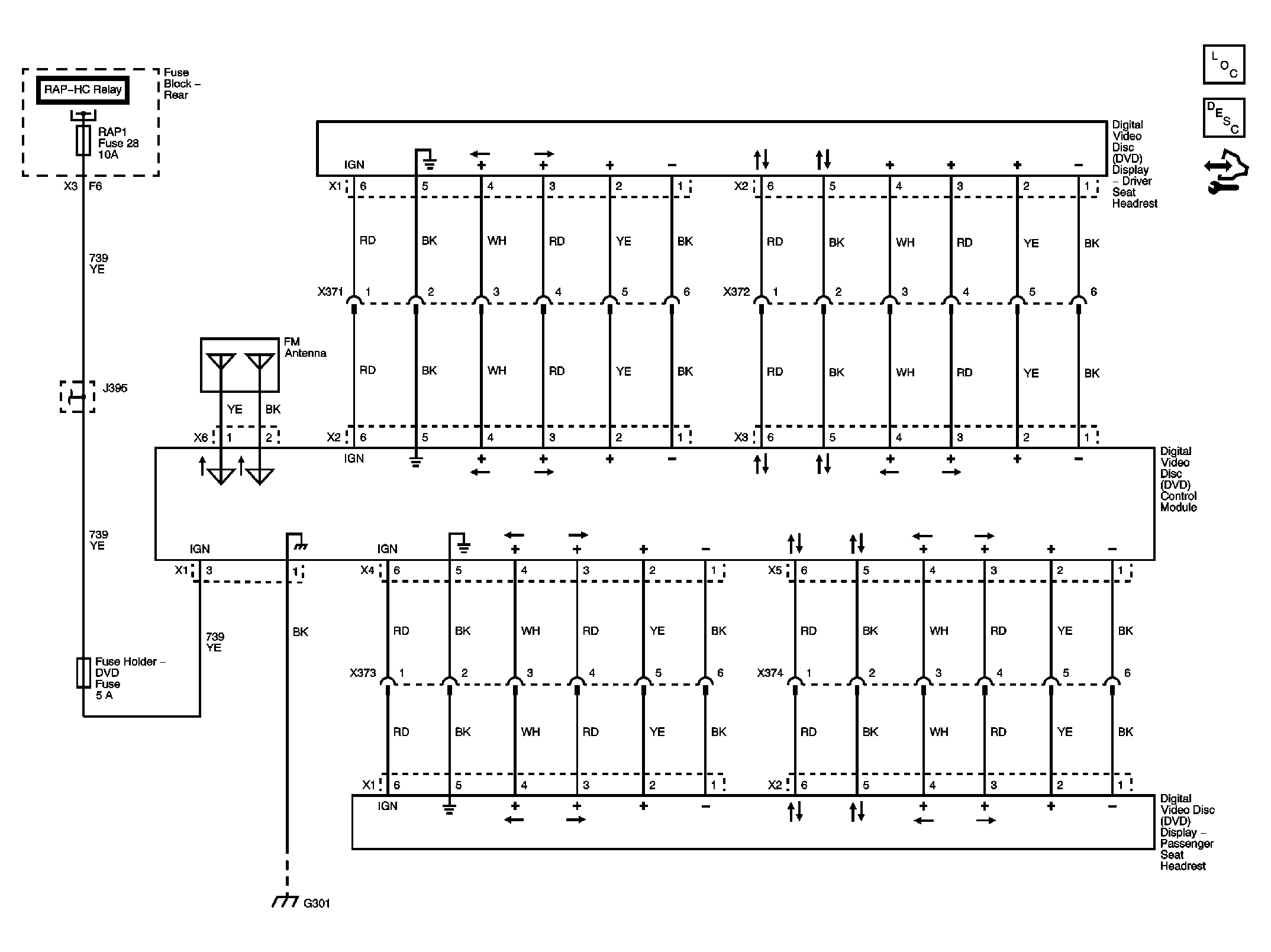

Fig 1: Dual DVD Headrest System Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
