Radio Power and Ground Wiring Schematics

WARNING: This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

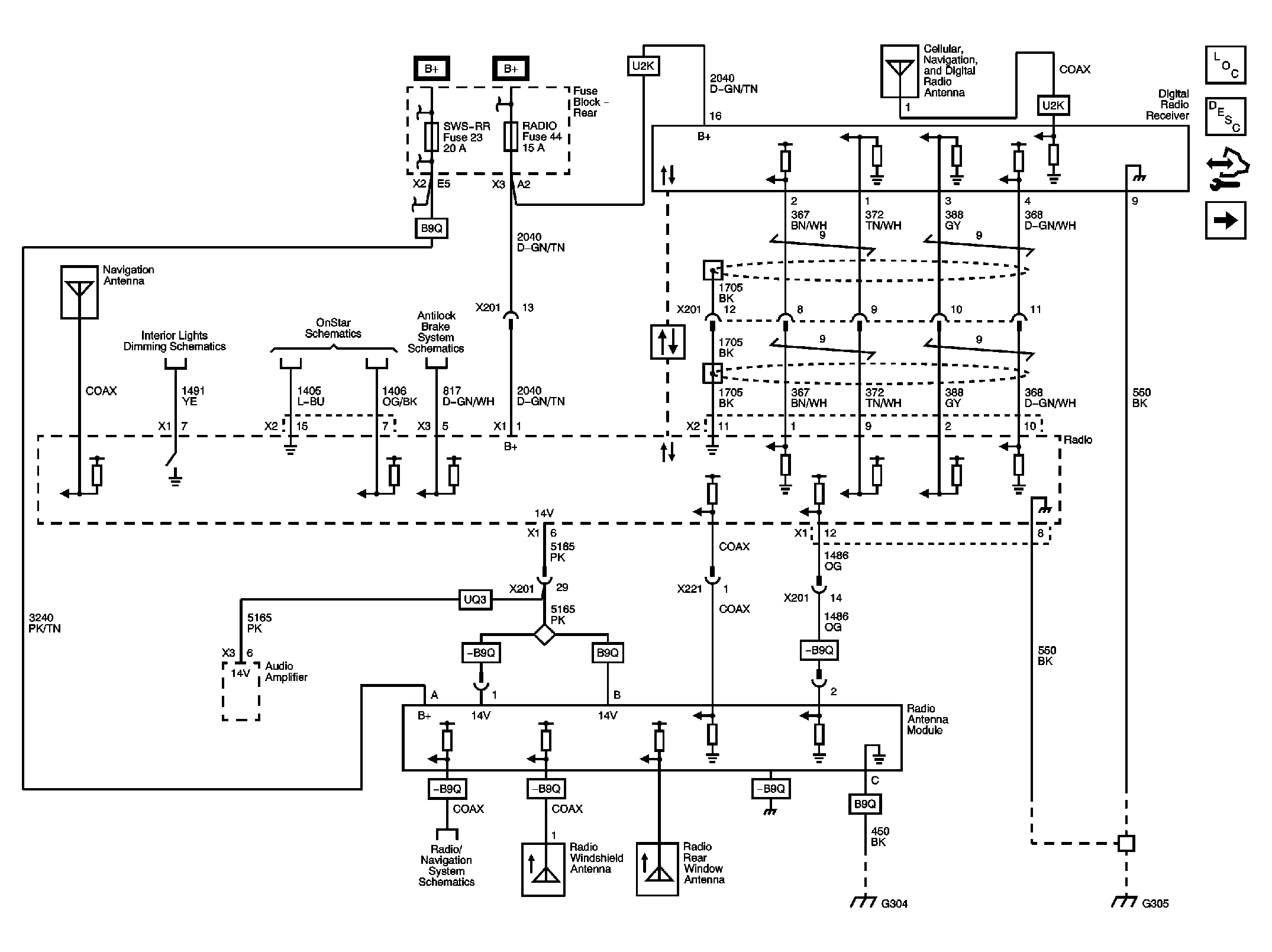

Fig 1: Radio Power and Ground Wiring Schematic

Courtesy of GENERAL MOTORS COMPANY
