Antilock Brake System Schematics

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

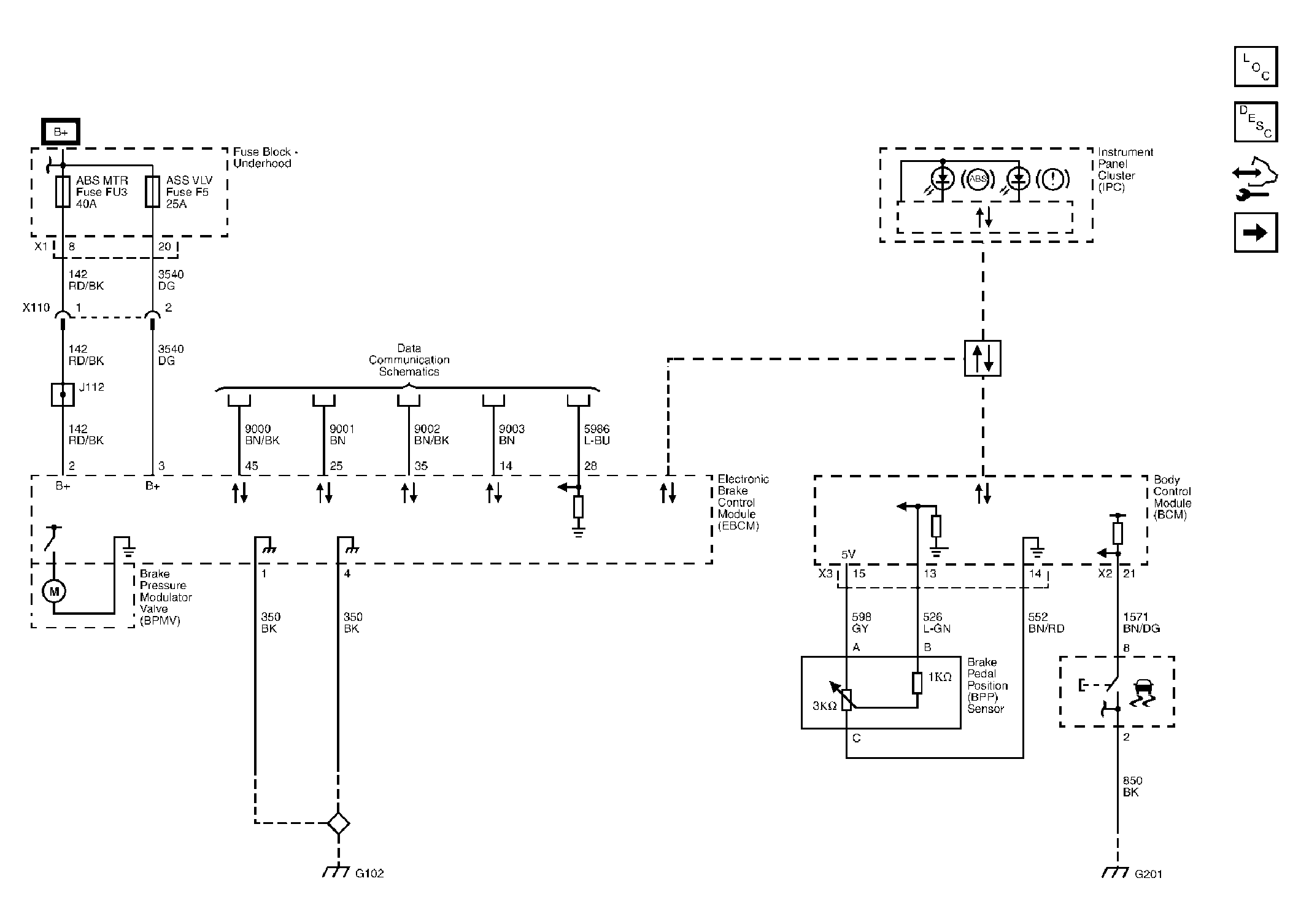

Fig 1: Module Power, Ground and Serial Data

Courtesy of GENERAL MOTORS CORP.

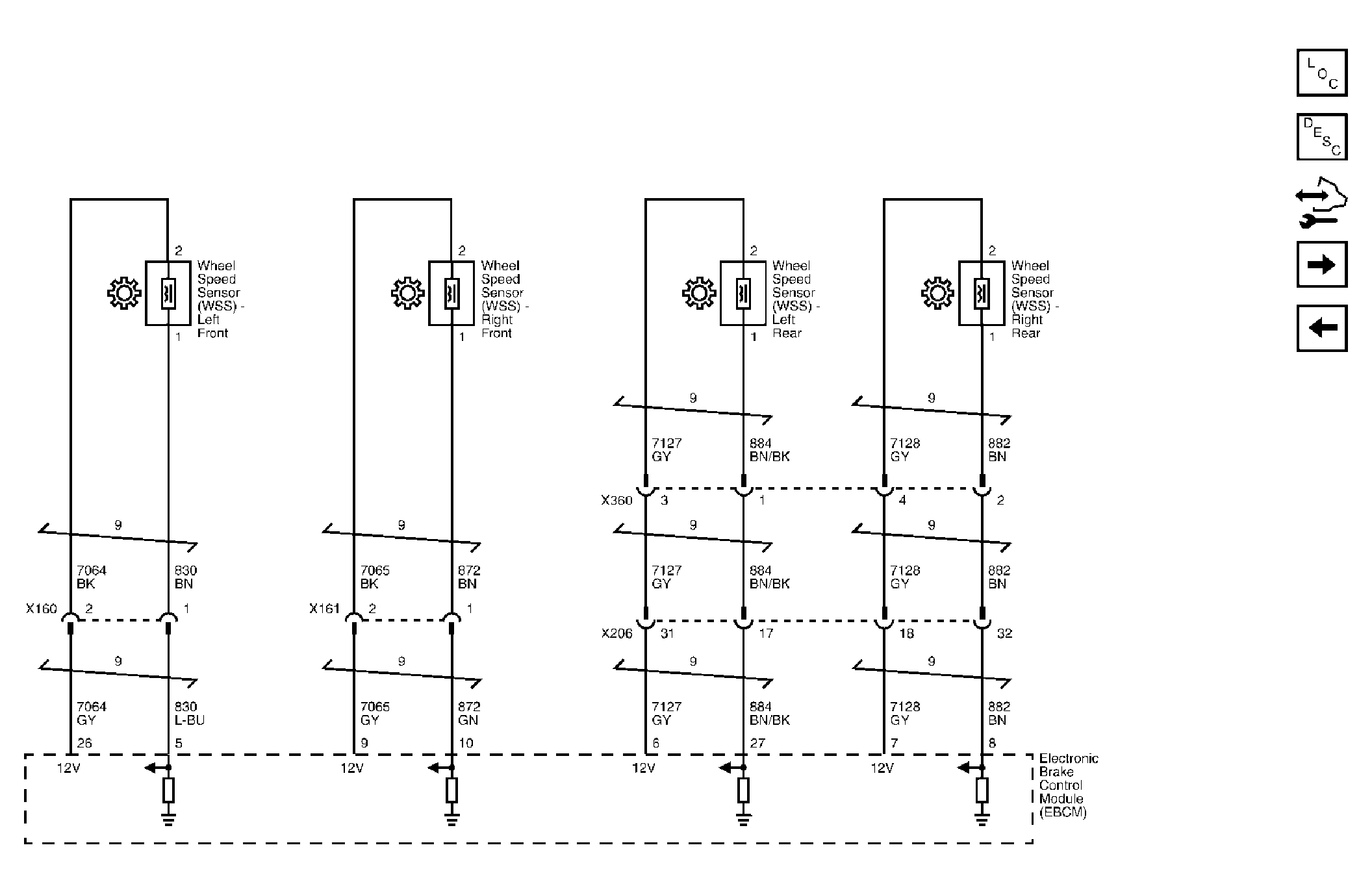

Fig 2: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

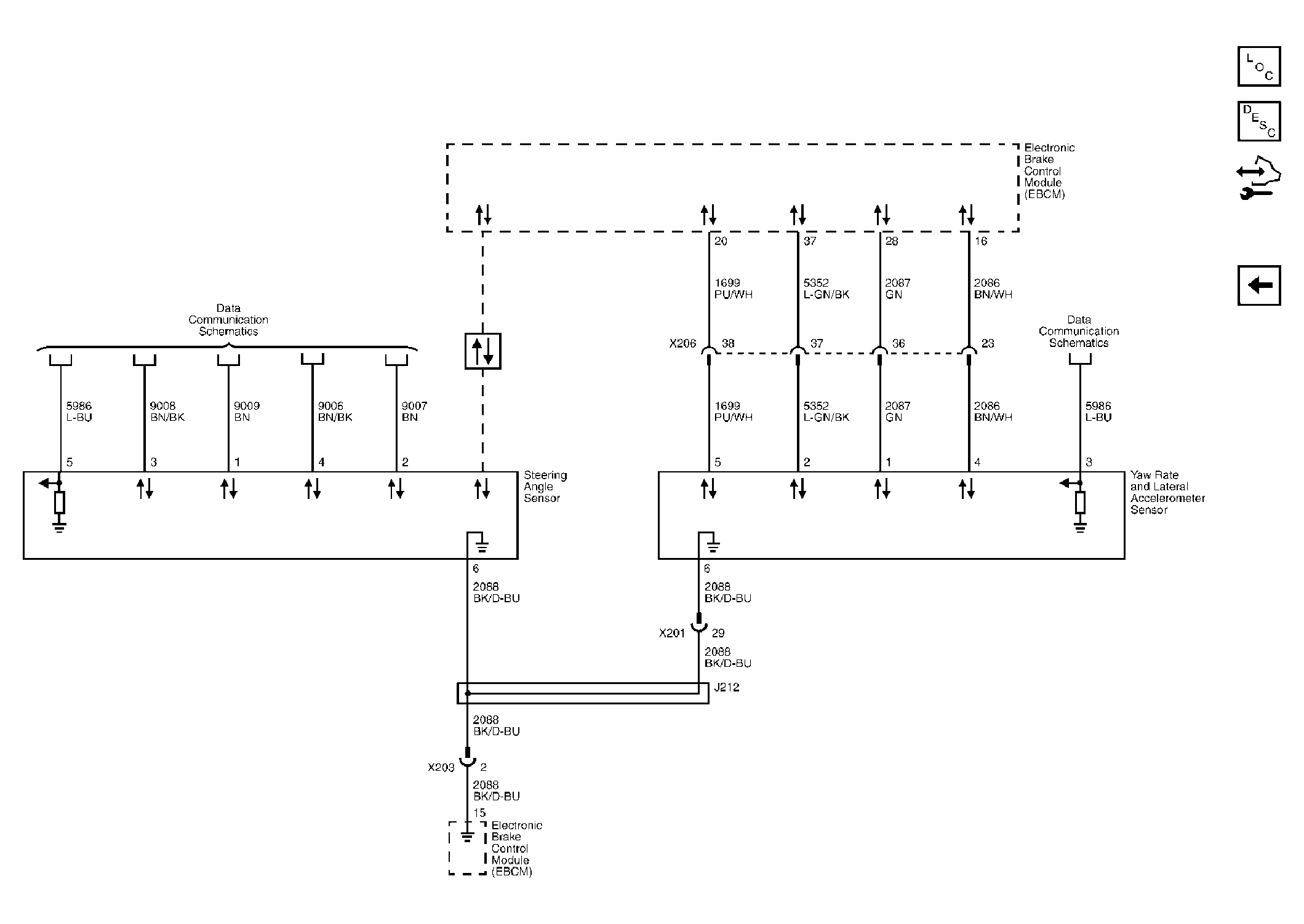

Fig 3: Electronic Stability Program Sensors

Courtesy of GENERAL MOTORS CORP.
