Rear Side Door Stationary Window Replacement

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

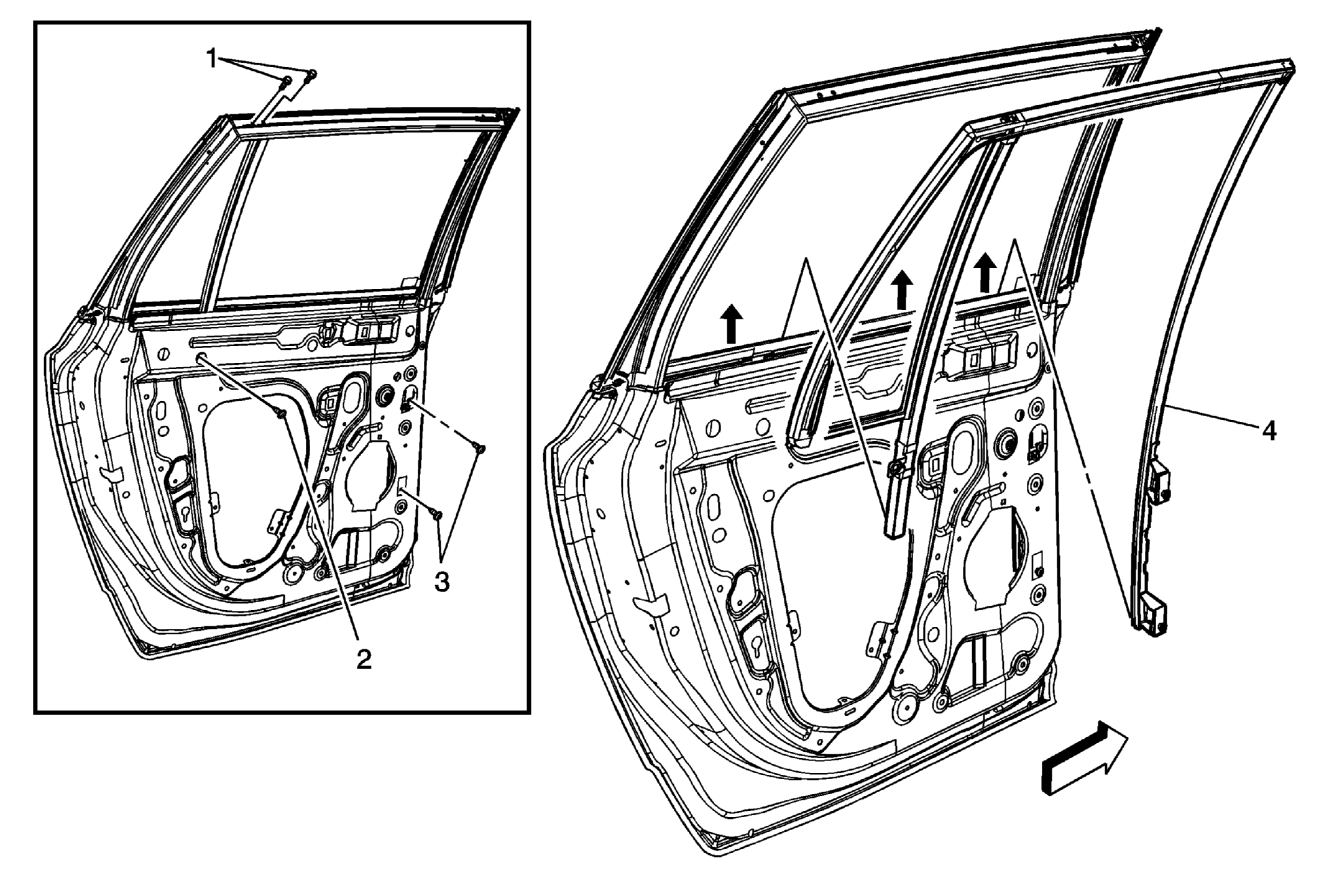

Fig 1: View Of Rear Side Door Stationary Window

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the trim panel. Refer to Rear Side Door Trim Panel Replacement (Enclave) or Rear Side Door Trim Panel Replacement (Acadia/OUTLOOK) or Rear Side Door Trim Panel Replacement (Traverse) . Remove the inner window belt sealing strip. Refer to Rear Side Door Window Inner Sealing Strip Replacement . Remove the outer window belt sealing strip. Refer to Rear Side Door Window Outer Sealing Strip Replacement (Acadia/Outlook) or Rear Side Door Window Outer Sealing Strip Replacement (Enclave) . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement . Remove the window. Refer to Rear Side Door Window Replacement .
1	Rear Side Door Stationary Window Upper Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Tip: The quarter glass and weatherstrip/run channel is not serviceable and should be replaced only as an assembly. Tighten: 5 N.m (44 lb in)
2	Rear Side Door Stationary Window Bolt Tighten: 10 N.m (89 lb in)
3	Rear Side Door Stationary Window Bolts (Qty: 2) Tighten: 10 N.m (89 lb in)
4	Rear Side Door Stationary Window Procedure When removing carefully twist the weatherstrip run channel and pull up at the top of the door frame. Press the weatherstrip/run channel into the window frame opening. Position the tabs on the weatherstrip/run channel into the slots on the door. Attach the molding to the outside of the door with double sided tape.
