OnStar® Schematics

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

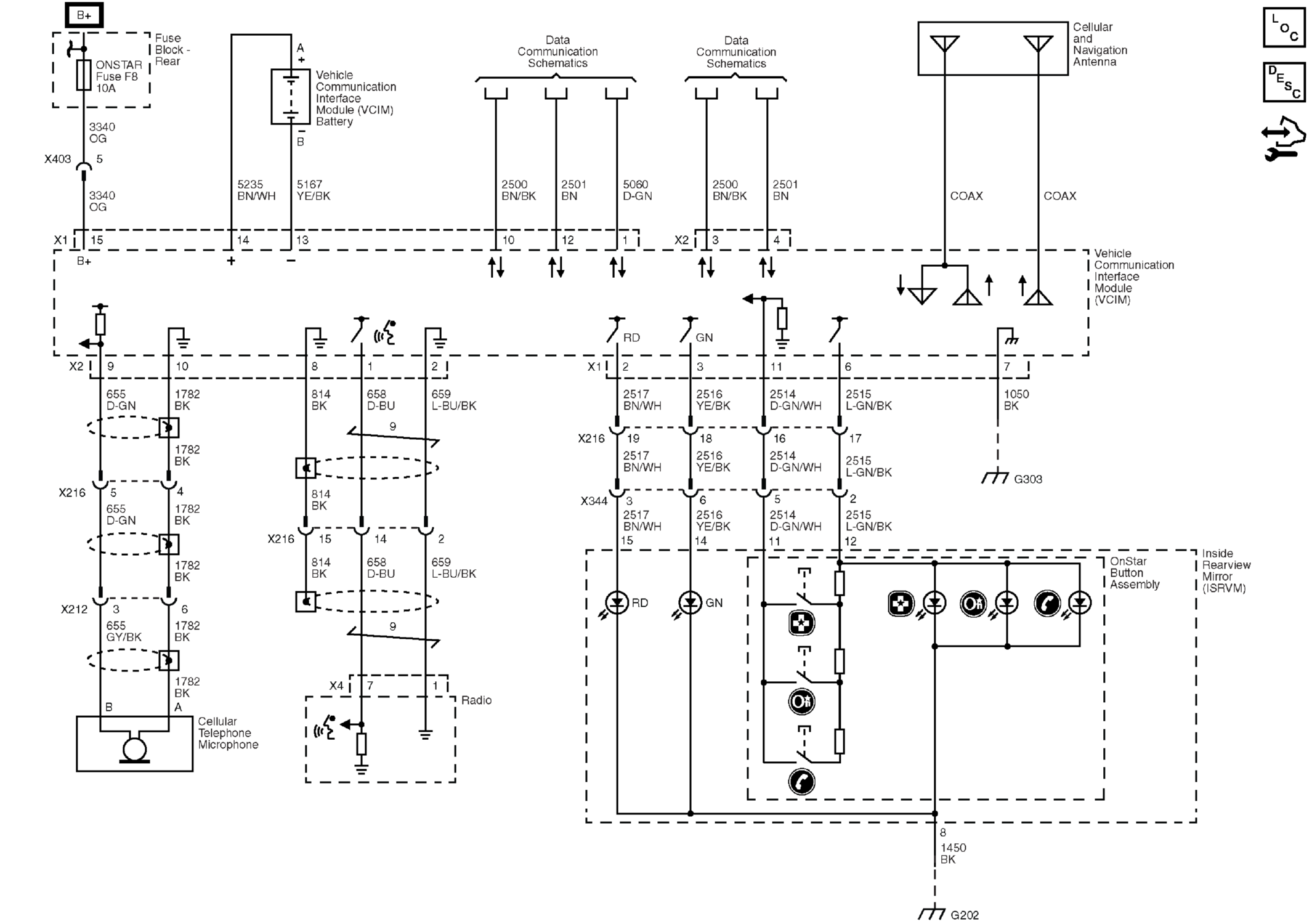

Fig 1: Identifying OnStar Schematics
GM2034199Courtesy of GENERAL MOTORS CORP.
