Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

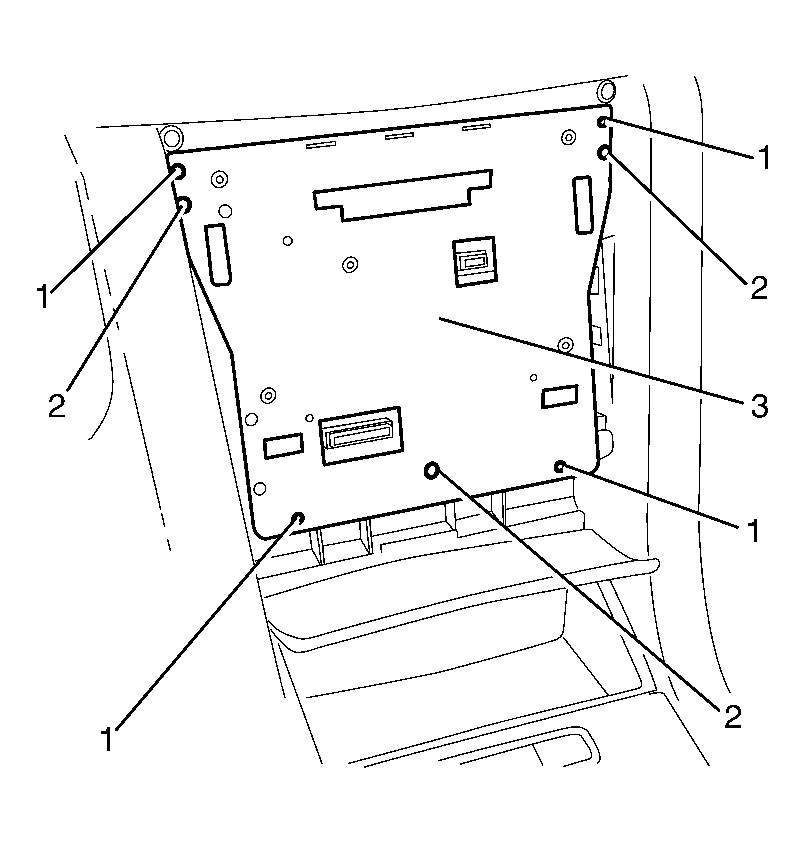

    Fig 1: Identifying Infotainment Unit To Instrument Panel Retaining Screws
    GM1957839Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Make sure to guide the infotainment unit (3) over the aligning lugs (2).
  1. Install the infotainment unit (3).
    2. NOTE: Refer to Fastener Notice .
  2. Install the infotainment unit to instrument panel retaining screws (1).

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

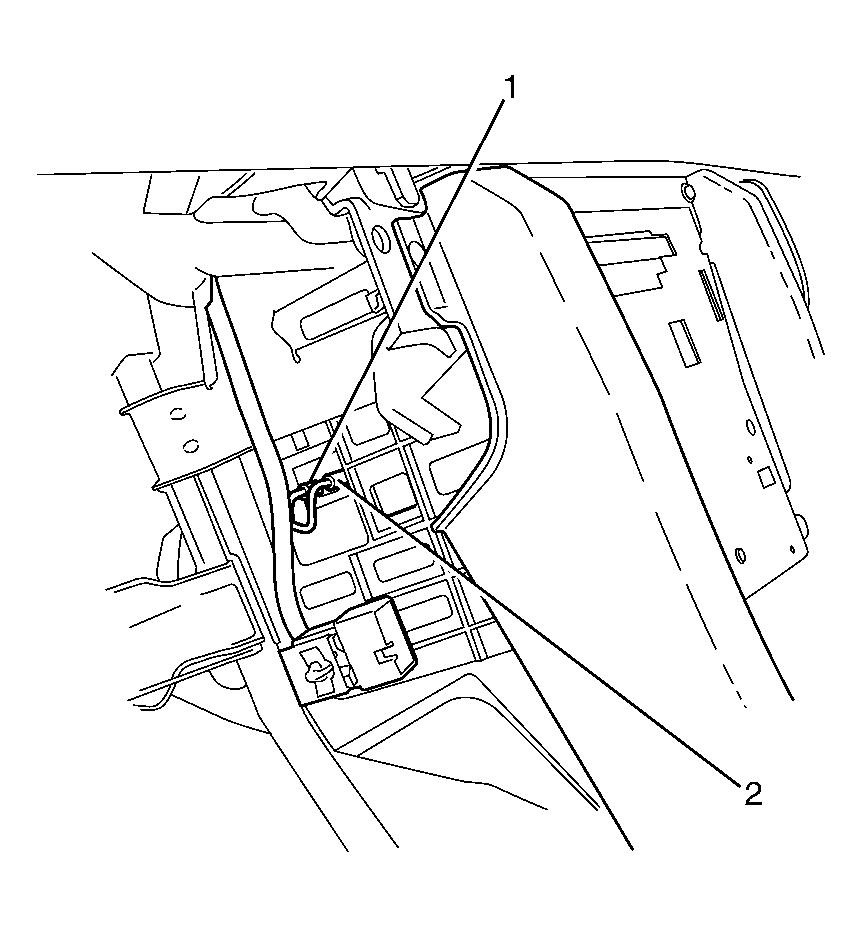

    3. Fig 2: Identifying Left Side Infotainment Unit Electrical Connector
    GM1957837Courtesy of GENERAL MOTORS CORP.
  3. Connect the left side infotainment unit electrical connector(s) (1 and 2 where applicable).
    4. Fig 3: Identifying Infotainment Electrical Connector
    GM1957838Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Make sure to close the retaining lever on the infotainment electrical connector (2) once connected.
  4. Connect the right side infotainment unit electrical connector(s) (1 and 2 where applicable).
  5. Install the left and right side instrument panel lower extension panels. Refer to Instrument Panel Extension Replacement .
  6. Install the driver side instrument panel lower trim panel assembly. Refer to Knee Bolster Replacement .
  7. Install the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement (LHD) .
  8. Install the infotainment fascia. Refer to Driver Information Display Replacement .
  9. Refer to Control Module References .
