Installation Procedure - Tweeter

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

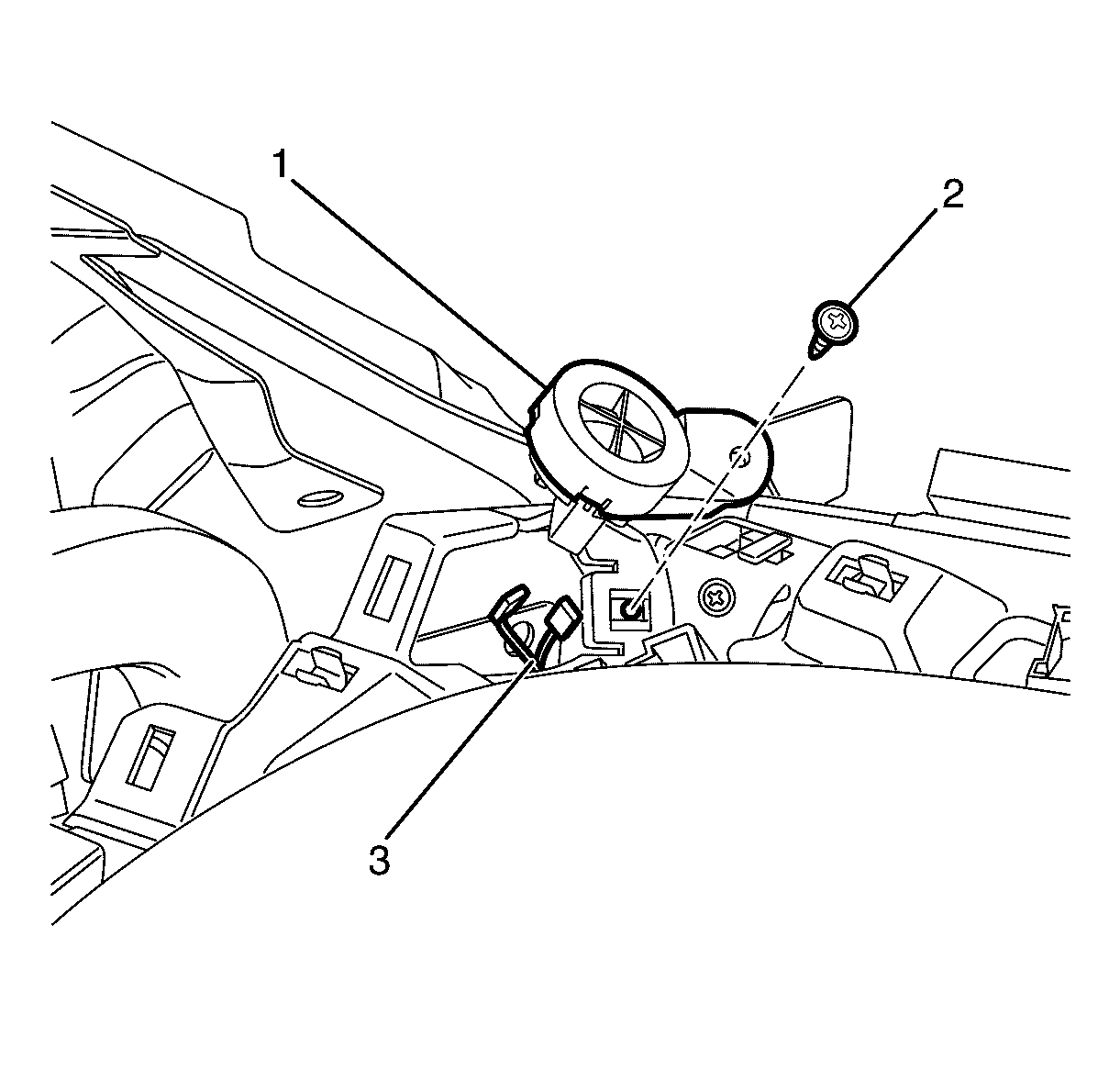

    Fig 1: Identifying Tweeter Speaker To I/P Attaching Screw
    GM1957841Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector (3).
    2. NOTE: Refer to Fastener Notice .
  2. Install the tweeter speaker to I/P attaching screw (2).

    Tighten:  Tighten the screw to 2 N.m (18 lb in).

  3. Install the left instrument panel defroster grille. Refer to Defroster Grille Replacement (LWB) .
