Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

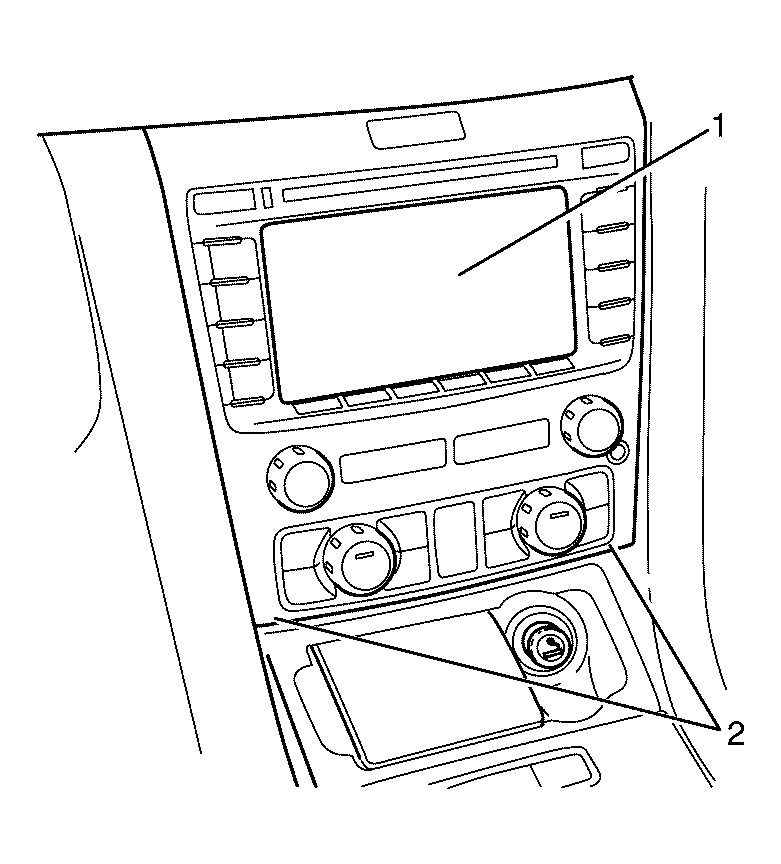

    Fig 1: Identifying Infotainment Fascia
    GM2048997Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Align the infotainment fascia retainers with the infotainment unit.
  1. Install the infotainment fascia (1) to the infotainment unit.
  2. Refer to Control Module References .
