Removal Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying VCIM Fascia Cover & Retaining Clips
    GM2040497Courtesy of GENERAL MOTORS CORP.
  1. Unclip the VCIM fascia cover (1) at the retaining clips (2) and remove the VCIM fascia cover (1) from the vehicle.
    2. Fig 2: Identifying Antenna Connectors, Wiring Harness Connectors & VCIM
    GM2040505Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the antenna connectors (1) and the harness connectors (2) from the VCIM (3).

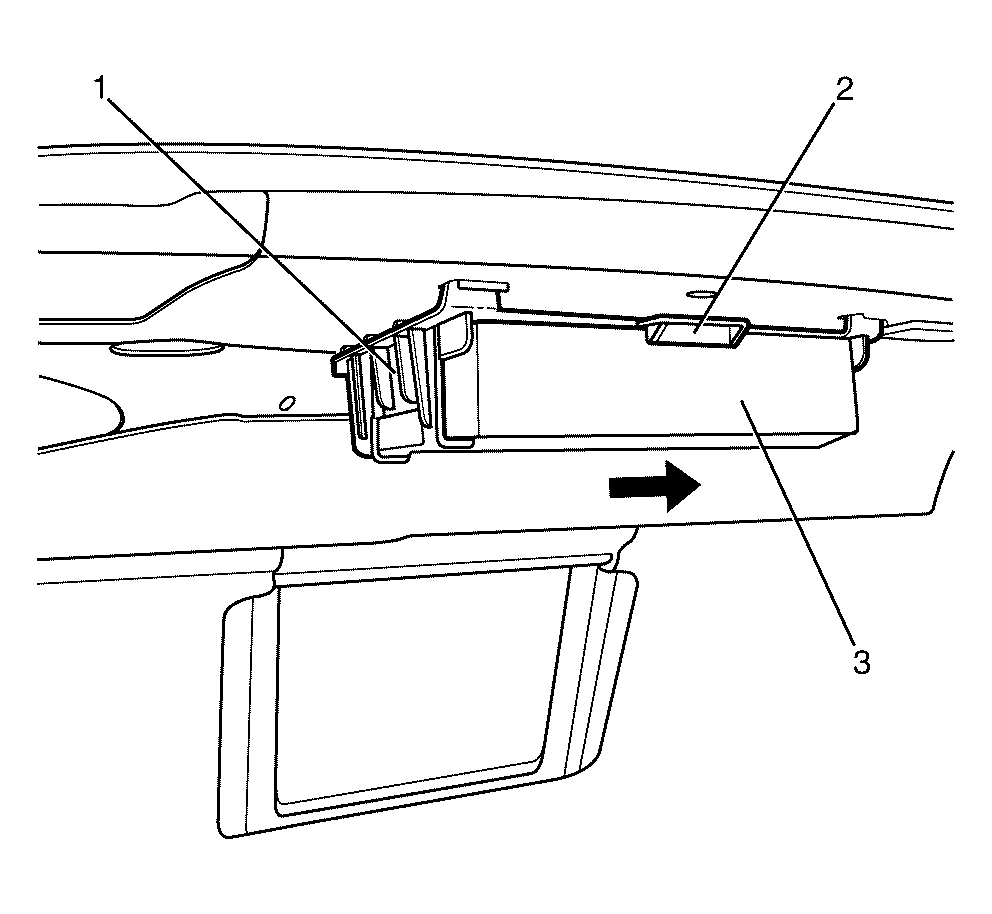

    3. Fig 3: Identifying VCIM, Supporting Bracket & Retaining Clip
    GM2040506Courtesy of GENERAL MOTORS CORP.
  3. Remove the VCIM (3) by pressing up on the retaining clip (2) and sliding the VCIM (3) out of the supporting bracket (1).
