Removal Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the vehicle communication interface module (VCIM). Refer to Communication Interface Module Replacement .

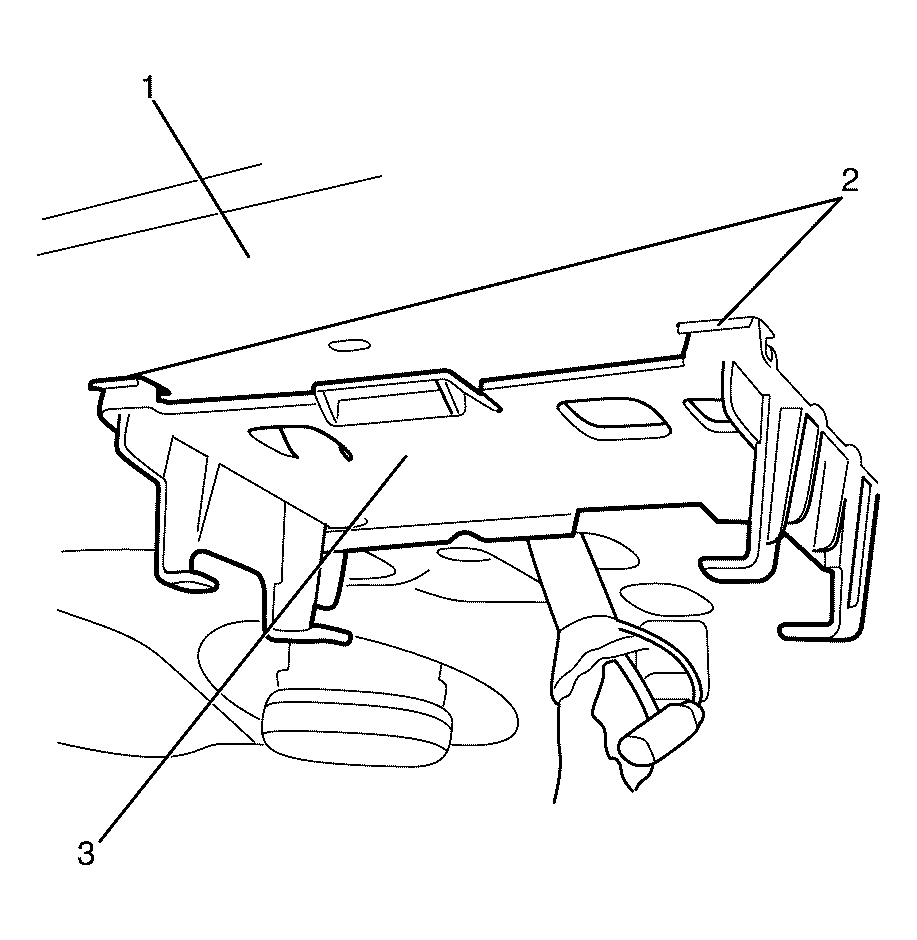

    2. Fig 1: Identifying VCIM Bracket To Body Retaining Clips
    GM2094151Courtesy of GENERAL MOTORS CORP.
  2. Disengage the VCIM bracket to body retaining clips (2).
  3. Lower the rear end of the VCIM bracket (3) away from the body (1).

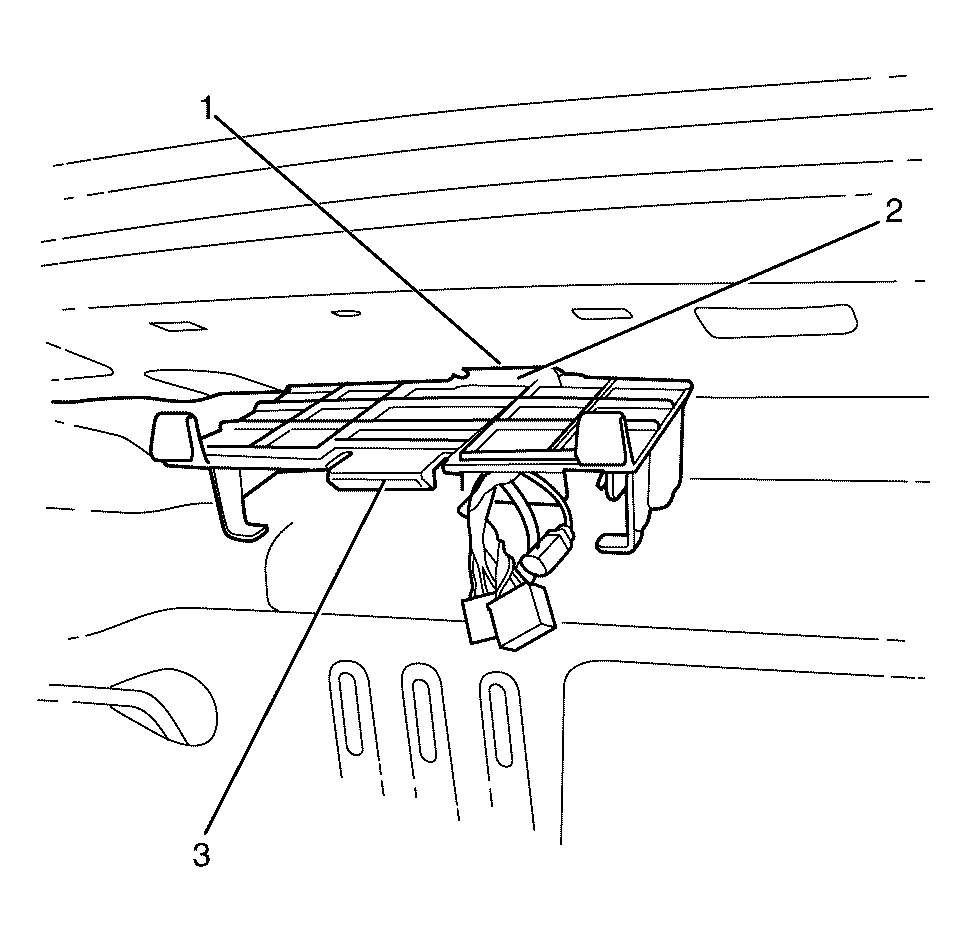

    4. Fig 2: Identifying VCIM Bracket & Retainer
    GM2094152Courtesy of GENERAL MOTORS CORP.
  4. Slide the VCIM bracket retainer (2) out of the body slot (1).
  5. Remove the VCIM bracket (3) from the vehicle.
