Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

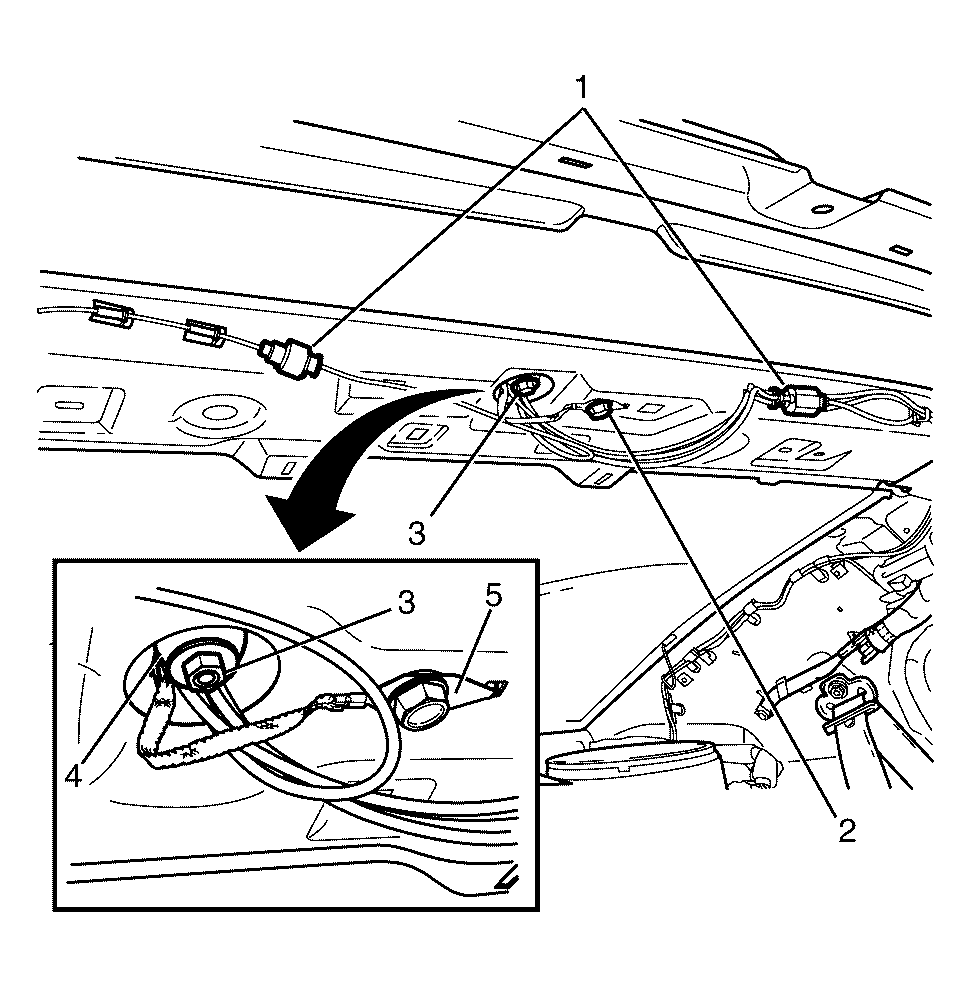

    Fig 1: Identifying Antenna Module Ground To Roof Panel Retaining Bolt
    GM2039769Courtesy of GENERAL MOTORS CORP.
  1. From outside the vehicle, install the antenna module assembly to the vehicle, threading the harness through the roof cavity.
    2. IMPORTANT: Listen for an audible click to confirm correct installation of the retaining clip (4)
  2. Install the retaining clip (4) securing the antenna module to the roof panel.
    3. NOTE: Refer to Fastener Notice .
  3. Install the antenna module to roof panel retaining bolt (3).

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

    4. IMPORTANT: Make sure that the antenna module ground (5) makes a good connection to the body.
  4. Install the antenna module ground to roof panel retaining bolt (2).

    Tighten:  Tighten the bolt to 22 N.m (195 lb in).

  5. Connect the electrical connectors (1).
  6. Install the headliner assembly. Refer to Headlining Trim Panel Replacement .
