Installation Procedure

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

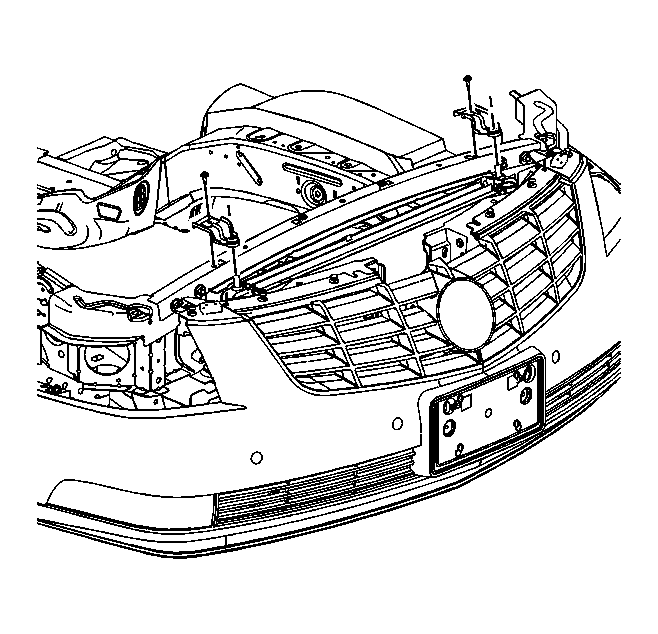

    Fig 1: Radiator Support Bracket
    GM1664996Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the radiator support bracket.
  2. Install the radiator support bracket retaining bolt.

    Tighten:  Tighten the bolts to 25 N.m (18 lb in).
