Video System Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

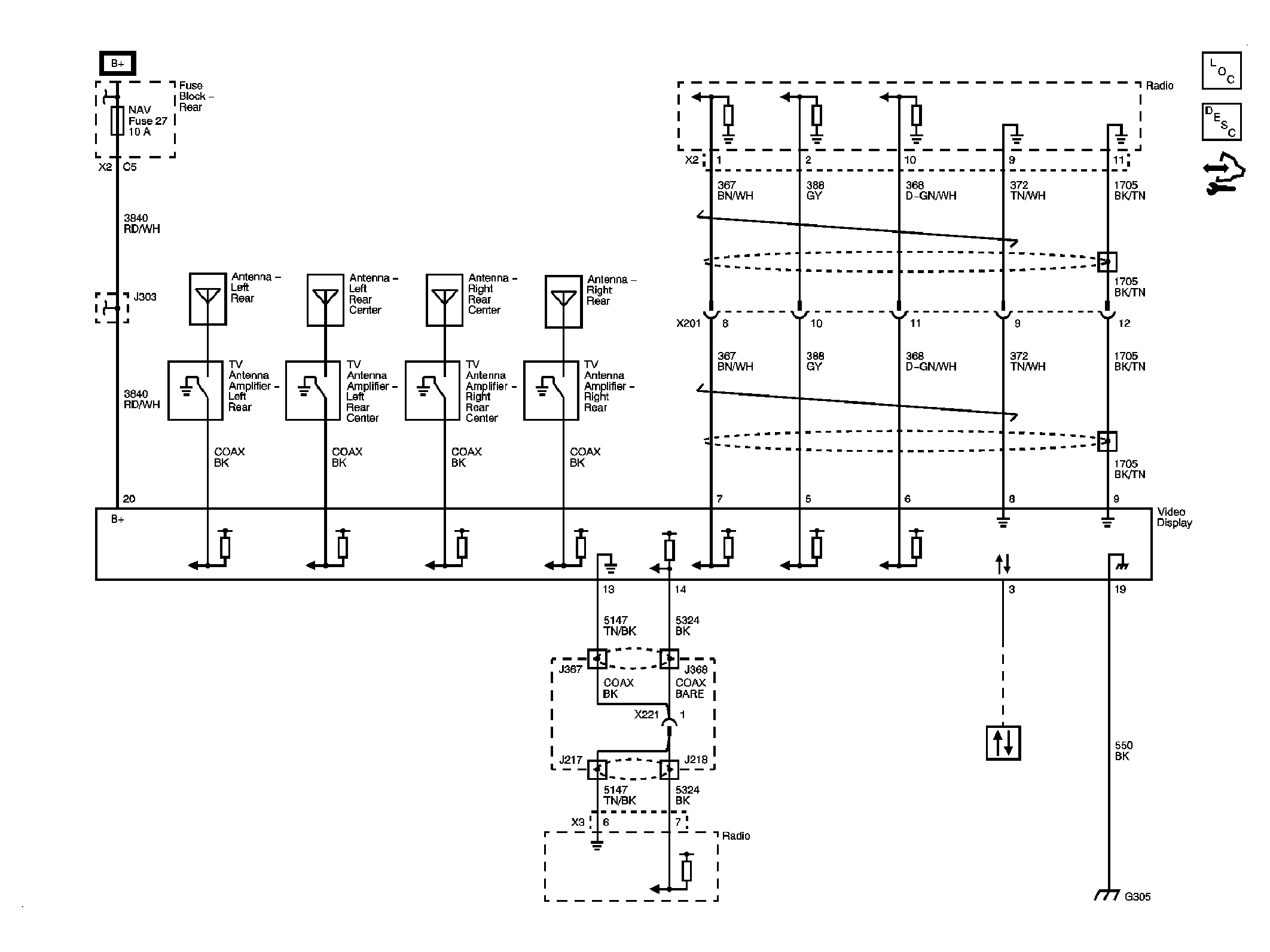

Fig 1: Video System Schematics
GM2082314Courtesy of GENERAL MOTORS CORP.
