Installation Procedure

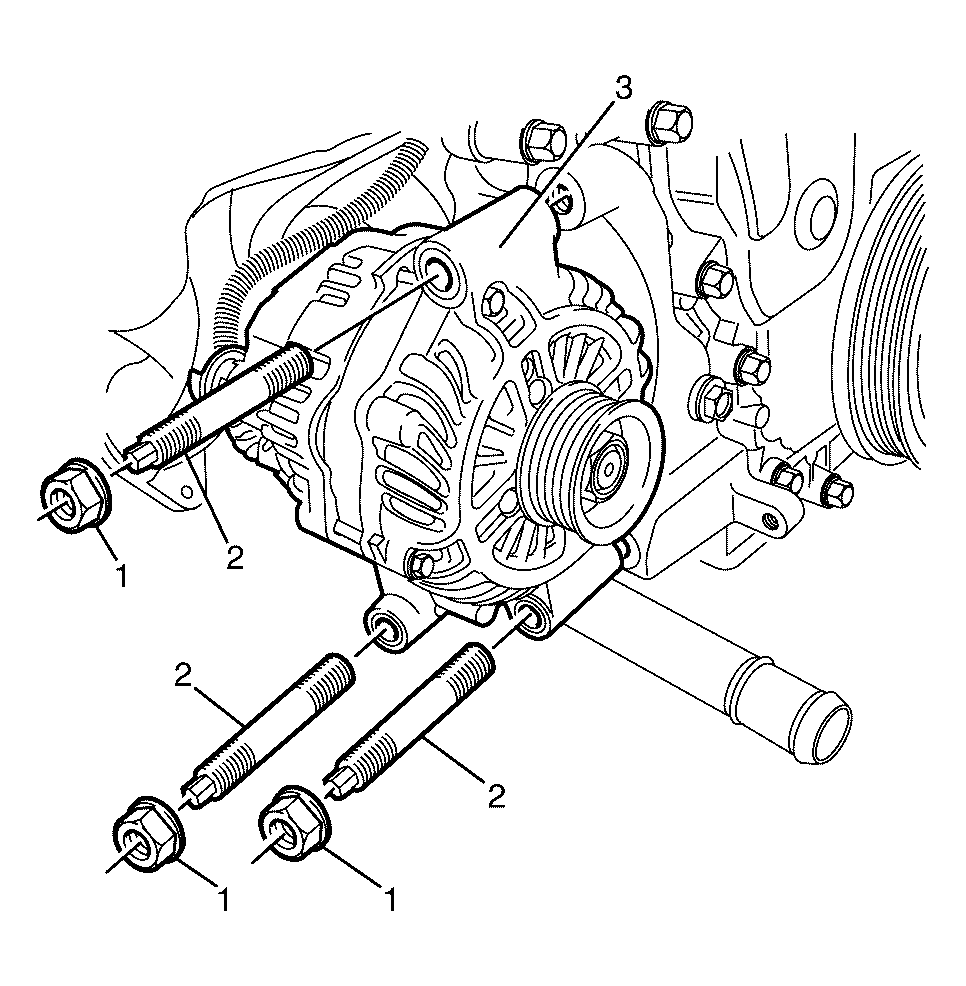

    Fig 1: Identifying Alternator To Alternator Bracket Retaining Studs & Nuts
    GM2049453Courtesy of GENERAL MOTORS CORP.
  1. Install the alternator (3) to the alternator mounting bracket.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the alternator to alternator bracket retaining studs (2) and tighten to 18 N.m (13 lb ft).
  3. Instal the alternator to alternator bracket retaining nuts (1) and tighten to 18 N.m (13 lb ft).

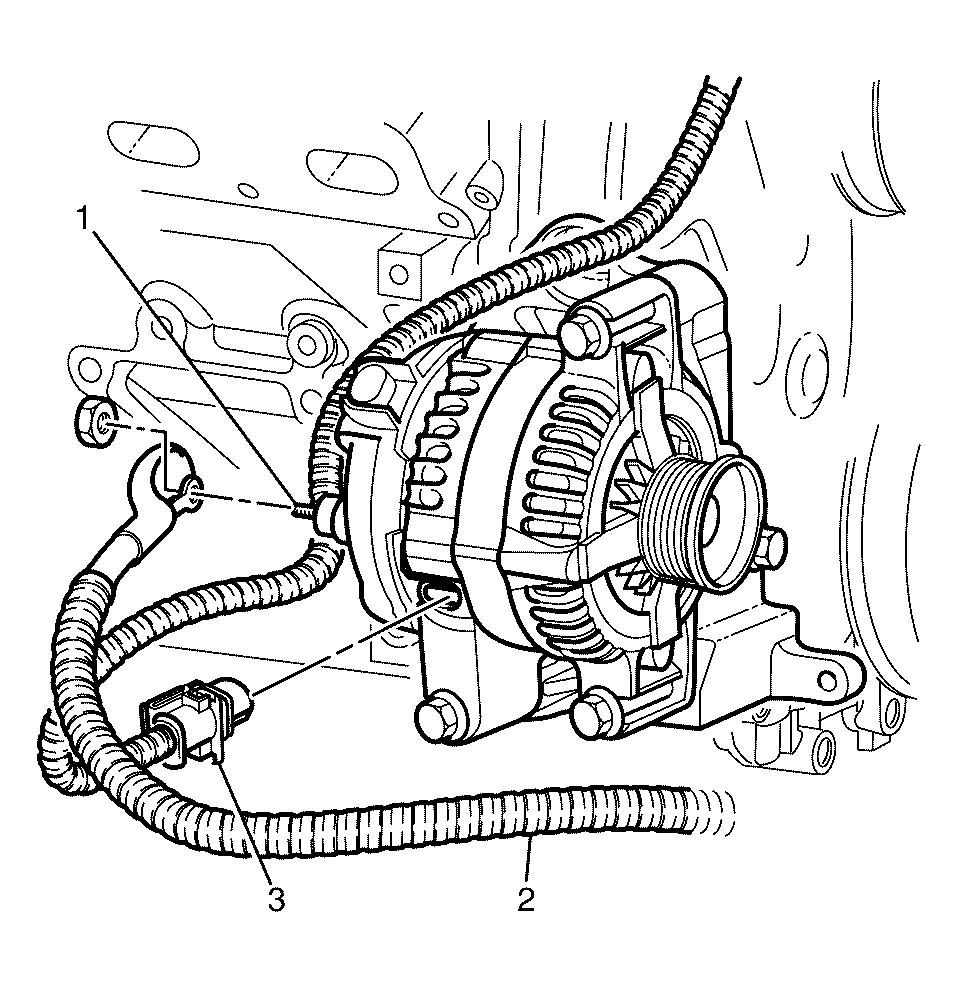

    4. Fig 2: Identifying Alternator Terminal Nut & Electrical Connector
    GM2049452Courtesy of GENERAL MOTORS CORP.
  4. Install the battery positive lead and the alternator terminal nut (1) to the alternator and tighten to 13 N.m (115 lb in).
  5. Install the terminal boot.
  6. Connect the electrical connector (3) to the alternator.
  7. Lower the vehicle.
  8. Install the drive belt to the alternator. Refer to Drive Belt Replacement .
  9. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
